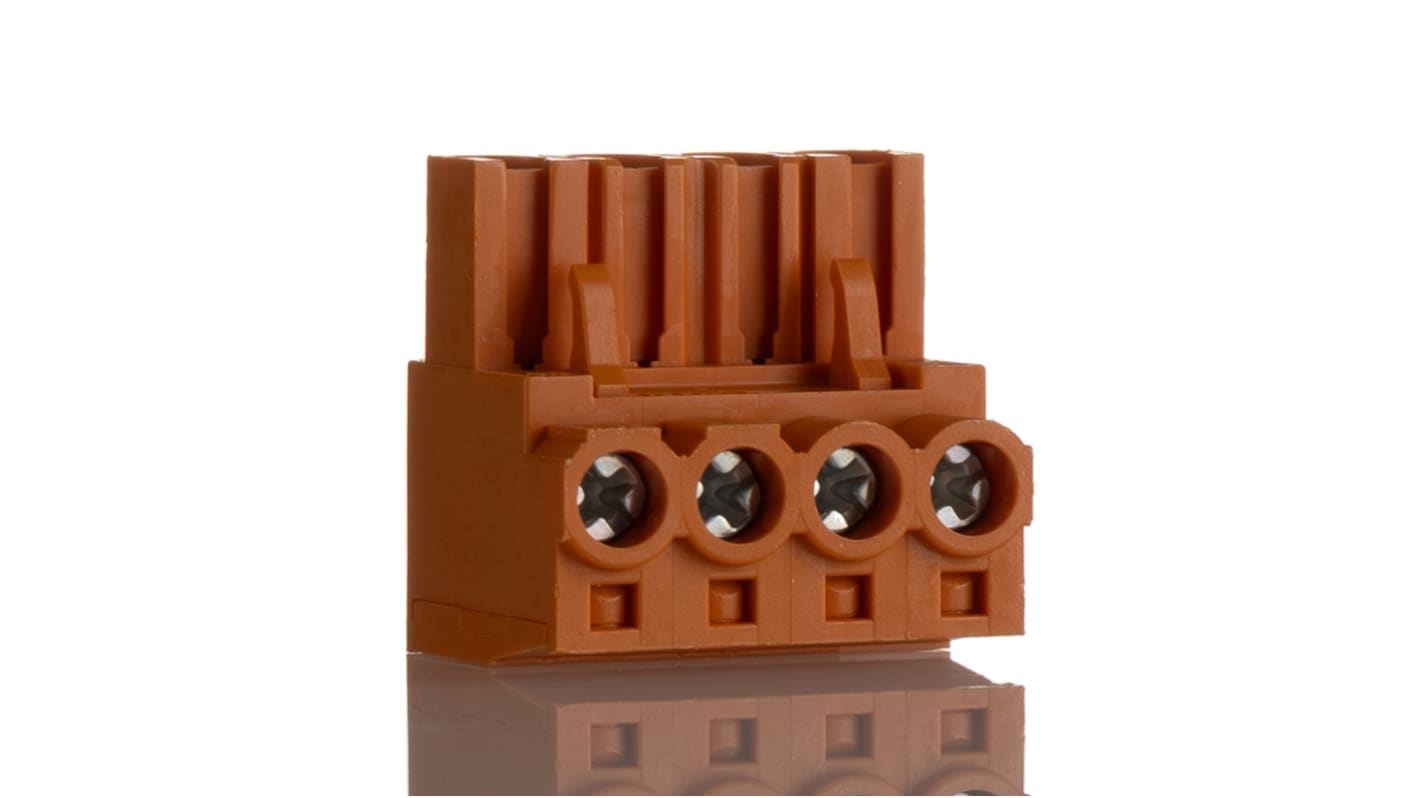

Weidmüller BL Series Pluggable Terminal Block, 4-Contact, 5.08 mm Pitch, 1 Row
- N° de stock RS:
- 176-7787
- Référence fabricant:
- 1943600000
- Fabricant:
- Weidmüller
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 paquet de 5 unités)*
13,71 €
(TVA exclue)
16,59 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 195 unité(s) expédiée(s) à partir du 24 août 2026
- Plus 495 unité(s) expédiée(s) à partir du 24 août 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 5 - 5 | 2,742 € | 13,71 € |
| 10 - 20 | 2,478 € | 12,39 € |
| 25 - 45 | 2,358 € | 11,79 € |
| 50 - 95 | 2,24 € | 11,20 € |
| 100 + | 2,13 € | 10,65 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 176-7787
- Référence fabricant:
- 1943600000
- Fabricant:
- Weidmüller
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Weidmüller | |
| Number of Contacts | 4 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Current | 20A | |
| Housing Material | Copper Alloy | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 4mm² | |
| Connector Gender | Female | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | Right Angle | |
| Wire Connection Method | Screw | |
| Colour | Orange | |
| Voltage | 400V | |
| Depth | 16mm | |
| Length | 19.24mm | |
| Width | 20.1mm | |
| Series | BL | |
| Standards/Approvals | RoHS | |
| Sélectionner tout | ||
|---|---|---|
Marque Weidmüller | ||
Number of Contacts 4 | ||
Product Type Pluggable Terminal Block | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Current 20A | ||
Housing Material Copper Alloy | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 4mm² | ||
Connector Gender Female | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation Right Angle | ||
Wire Connection Method Screw | ||
Colour Orange | ||
Voltage 400V | ||
Depth 16mm | ||
Length 19.24mm | ||
Width 20.1mm | ||
Series BL | ||
Standards/Approvals RoHS | ||
- Pays d'origine :
- DE
Weidmuller Series BL Pluggable Terminal Block, 20A Current Rating, 300V/400V Voltage Rating - 1943600000
This pluggable Terminal Block is engineered for dependable connections across a range of applications. Its right angle design makes it suitable for installation in Compact spaces. With a 5.08mm pitch and four contact points, this Terminal Block can handle up to 20A of current and is rated for voltages of 300V and 400V, making it compatible with various electrical systems.
Features & Benefits
• Right angle orientation enables effective wiring in limited spaces
• Four contacts facilitate multiple connections within a Compact structure
• 5.08mm pitch ensures compatibility with different systems
• Screw termination method promotes secure and stable connections
• Rated for 20A current capacity meets power distribution requirements
• Durable copper alloy construction provides durability and dependability
Applications
• Utilised in automation equipment for efficient circuit integration
• Suitable for electronic control units necessitating dependable connections
• Commonly employed in electrical panels for optimal power distribution
• Frequently used in mechanical systems for component connections
Can it handle high voltage connections?
Yes, it supports voltage ratings of 300V and 400V.
Will it fit in tight spaces?
The right angle design accommodates limited space effectively.
Is it easy to install?
The screw termination method eases the installation process.
