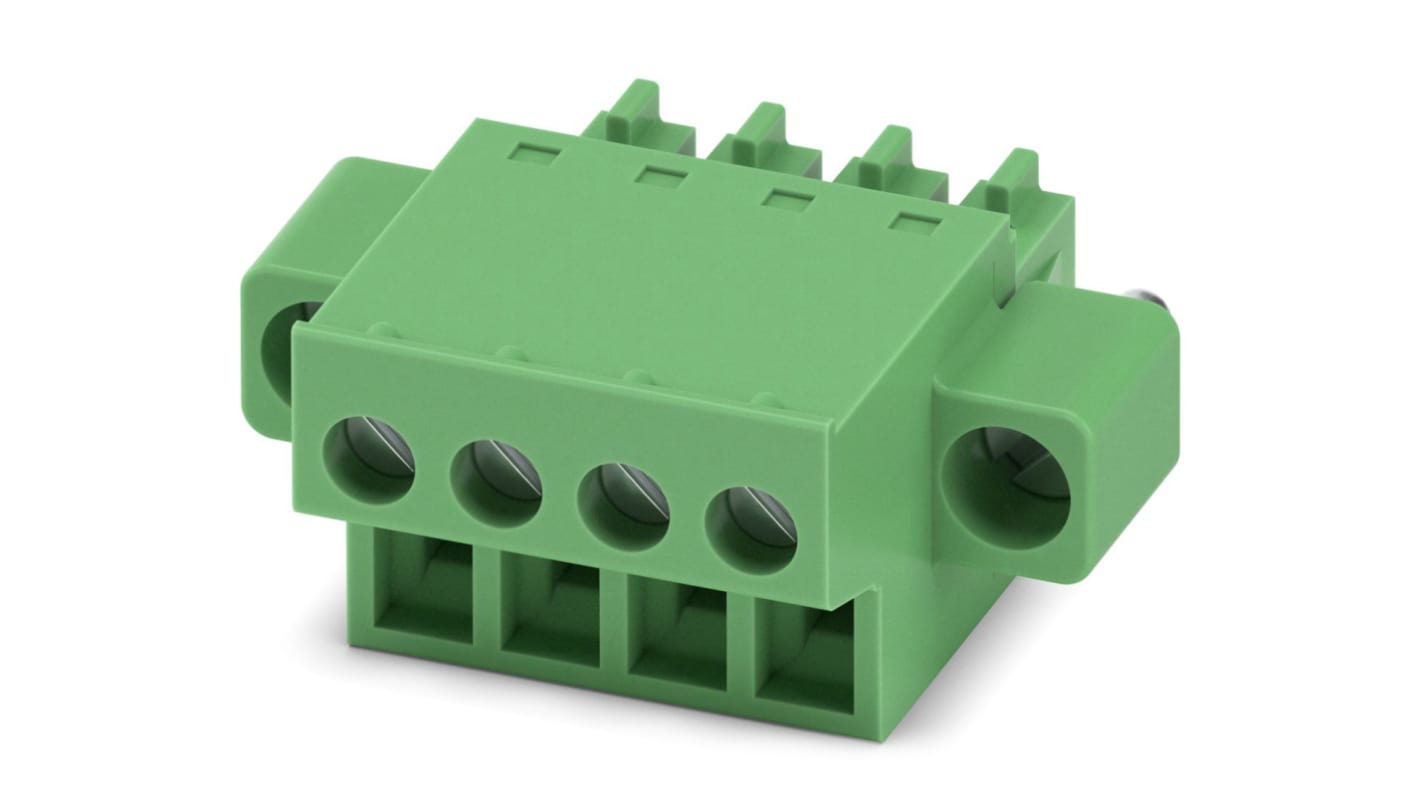

Phoenix Contact FRONT-MC 1.5/4-STF-3.81 Series Pluggable Terminal Block, 4-Contact, 3.81 mm Pitch, 1 Row
- N° de stock RS:
- 176-1461
- Référence fabricant:
- 1850877
- Fabricant:
- Phoenix Contact
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
7,21 €
(TVA exclue)
8,72 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- 250 unité(s) expédiée(s) à partir du 10 juillet 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 7,21 € |
| 5 - 24 | 6,85 € |
| 25 - 49 | 6,50 € |
| 50 - 99 | 6,18 € |
| 100 + | 6,04 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 176-1461
- Référence fabricant:
- 1850877
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Number of Contacts | 4 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 3.81mm | |
| Number of Rows | 1 | |
| Current | 8A | |
| Minimum Wire Size mm² | 0.14mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 1.5mm² | |
| Connector Gender | Female | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | Straight | |
| Wire Connection Method | Screw | |
| Colour | Green | |
| Voltage | 320V | |
| Depth | 12.3mm | |
| Width | 25.63mm | |
| Length | 21.7mm | |
| Series | FRONT-MC 1.5/4-STF-3.81 | |
| Standards/Approvals | RoHS | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Number of Contacts 4 | ||
Product Type Pluggable Terminal Block | ||
Pitch 3.81mm | ||
Number of Rows 1 | ||
Current 8A | ||
Minimum Wire Size mm² 0.14mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 1.5mm² | ||
Connector Gender Female | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation Straight | ||
Wire Connection Method Screw | ||
Colour Green | ||
Voltage 320V | ||
Depth 12.3mm | ||
Width 25.63mm | ||
Length 21.7mm | ||
Series FRONT-MC 1.5/4-STF-3.81 | ||
Standards/Approvals RoHS | ||
- Pays d'origine :
- DE
Phoenix Contact PCB Terminal Block
The Phoenix Contact PCB FRONT-MC series panel mount female straight Terminal Block has 4 contacts. It has a voltage rating of 320V and current rating of 8A. The Terminal Block has tin contacts. This Terminal is used as industrial equipment.
Features and Benefits
• Low temperature rise
• Pitch size is 3.81mm
• Polyamide material
• Screwable flange
• Single row
• Termination method screw
