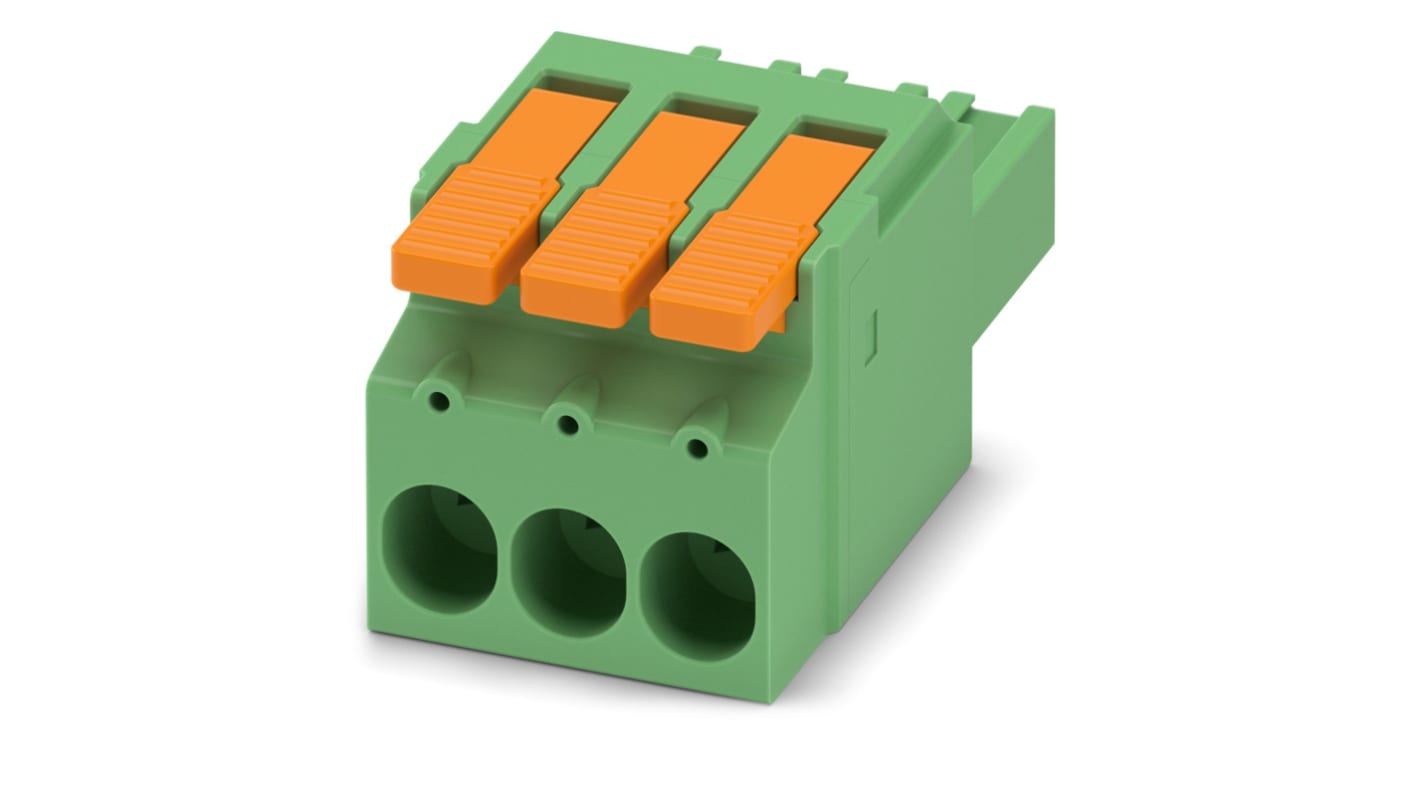

Phoenix Contact LPC 6/3-ST-7.62 Series Pluggable Terminal Block, 3-Contact, 7.62 mm Pitch, 1 Row, 1716922
- N° de stock RS:
- 174-8210
- Référence fabricant:
- 1716922
- Fabricant:
- Phoenix Contact
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 boîte de 25 unités)*
159,35 €
(TVA exclue)
192,825 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 14 octobre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | La Boite* |
|---|---|---|
| 25 - 25 | 6,374 € | 159,35 € |
| 50 - 100 | 5,96 € | 149,00 € |
| 125 - 225 | 5,596 € | 139,90 € |
| 250 + | 5,271 € | 131,78 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 174-8210
- Référence fabricant:
- 1716922
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Number of Contacts | 3 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 7.62mm | |
| Current | 41A | |
| Number of Rows | 1 | |
| Housing Material | Copper Alloy | |
| Minimum Wire Size mm² | 0.75mm² | |
| Maximum Wire Size mm² | 10mm² | |
| Connector Gender | Female | |
| Minimum Wire Size AWG | 18AWG | |
| Maximum Wire Size AWG | 8AWG | |
| Orientation | Straight | |
| Wire Connection Method | Push-in | |
| Colour | Green | |
| Voltage | 1kV | |
| Series | LPC 6/3-ST-7.62 | |
| Standards/Approvals | No | |
| Length | 48mm | |
| Width | 24.86mm | |
| Depth | 35.65mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Number of Contacts 3 | ||
Product Type Pluggable Terminal Block | ||
Pitch 7.62mm | ||
Current 41A | ||
Number of Rows 1 | ||
Housing Material Copper Alloy | ||
Minimum Wire Size mm² 0.75mm² | ||
Maximum Wire Size mm² 10mm² | ||
Connector Gender Female | ||
Minimum Wire Size AWG 18AWG | ||
Maximum Wire Size AWG 8AWG | ||
Orientation Straight | ||
Wire Connection Method Push-in | ||
Colour Green | ||
Voltage 1kV | ||
Series LPC 6/3-ST-7.62 | ||
Standards/Approvals No | ||
Length 48mm | ||
Width 24.86mm | ||
Depth 35.65mm | ||
Plug component, nominal current: 41 A, rated voltage (III/2): 1000 V, number of positions: 8, pitch: 7.62 mm, connection method: Push-in spring connection, color: green, contact surface: Tin
