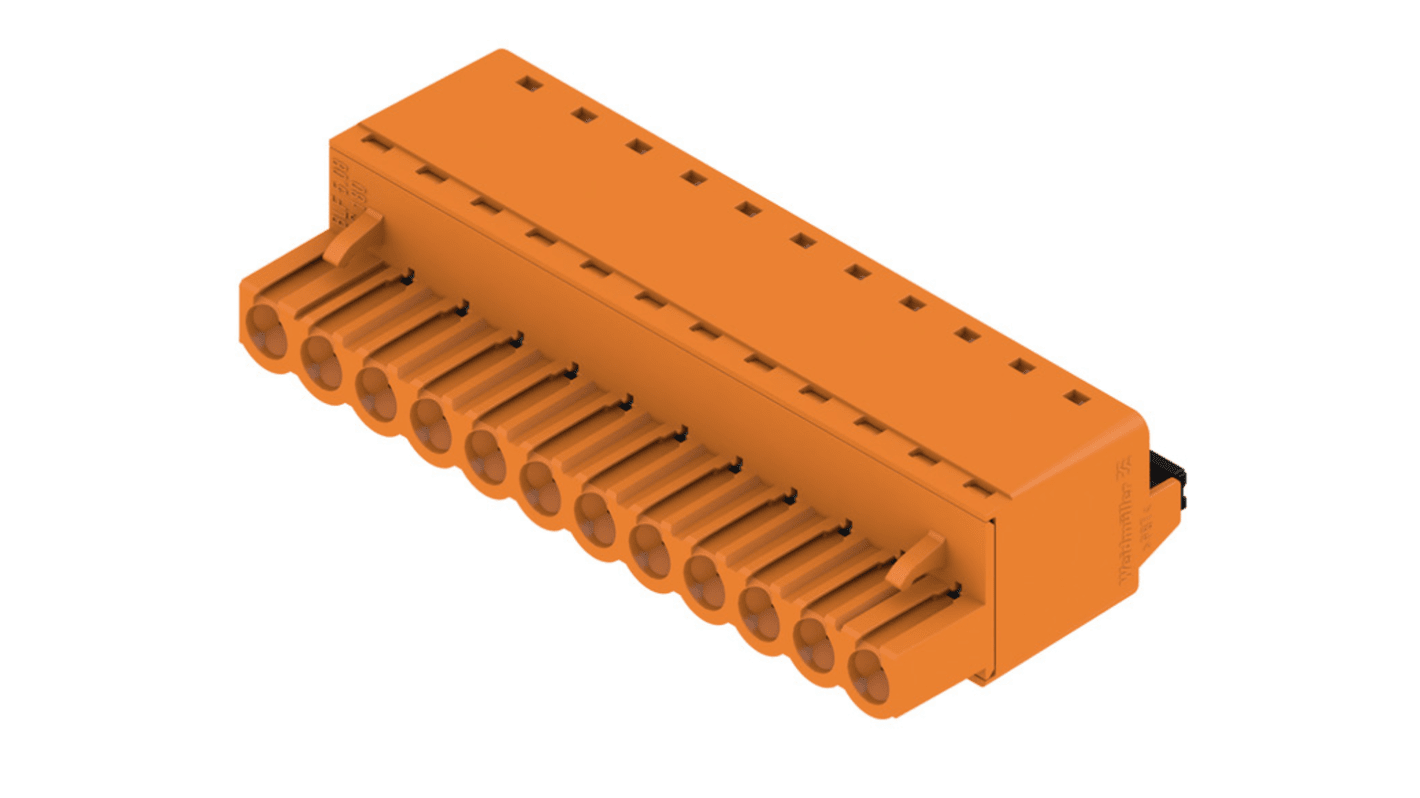

Weidmüller BLF 5.08 Series Pluggable Terminal Block, 12-Contact, 5.08 mm Pitch, 1 Row, 1013790000

Voir la catégorie

Sous-total (1 boîte de 30 unités)*

230,49 €

(TVA exclue)

278,88 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
Temporairement en rupture de stock
  • 30 unité(s) expédiée(s) à partir du 16 septembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
La Boite*
30 +7,683 €230,49 €

*Prix donné à titre indicatif

N° de stock RS:
172-2913
Référence fabricant:
1013790000
Fabricant:
Weidmüller
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Weidmüller

Product Type

Pluggable Terminal Block

Number of Contacts

12

Pitch

5.08mm

Number of Rows

1

Current

10A

Minimum Wire Size mm²

0.13mm²

Housing Material

Polybutylene Terephthalate

Connector Gender

Female

Maximum Wire Size mm²

3.31mm²

Minimum Wire Size AWG

26 AWG

Maximum Wire Size AWG

12 AWG

Orientation

Straight

Colour

Orange

Wire Connection Method

Push-in

Voltage

300 V

Depth

17.4mm

Width

12.5 mm

Series

BLF 5.08

Length

60.96mm

Standards/Approvals

No

Pays d'origine :
SK

Weidmuller BLF 5.08 Series Pluggable Terminal Block, 12 Contacts, 5.08mm Pitch - 1013790000


This pluggable Terminal Block is designed for efficient cable mounting applications. Featured in orange, this screw termination Terminal accommodates wires from 26 to 12 AWG with a maximum current rating of 14A and a voltage rating of 400V. With a Compact design and configuration of 12 contacts arranged in a single row, it offers durability and high performance for various electrical connections.

Features & Benefits


• Tool-free PUSH IN connection system improves installation speed

• Straight body orientation allows for flexible installation options

• Constructed from copper alloy with PBT insulation for durability

• Compact design optimises space in electrical enclosures

Applications


• Used for connecting wires in automation and control panels

• Suitable for requiring reliable signal transmission

• Ideal for mechanical and electrical industry installations

• Recommended for various equipment needing a 12 contact solution

What is the maximum clamping range for wire connections?


The maximum clamping range is 3.31mm², accommodating various wire sizes up to this limit for optimal performance.

How does the PUSH IN connection benefit users?


This system allows for quick and intuitive wire connections without the need for additional tools, saving time during installation.

What temperature range can this Terminal Block effectively operate within?


The Terminal Block can function in an operating temperature range from -50 to 100 °C, making it suitable for various environmental conditions.

What protection grade does this Terminal Block provide?


It offers IP20 protection, ensuring safety from finger contact while allowing for efficient operation in accessible installations.

Push-In Screwless Terminals


These Socket Connector Push-In Screwless terminals on a 5.08mm pitch give Rapid insertion of prepared cables without the use of any tools also the release latch allows Rapid unplugging.

5.08mm Pitch -Weidmüller Omnimate Range


Weidmüller's Omnimate Range of 5.08mm pitch Two Part connectors allows wire-to-board connections through terminals using Leaf Spring and Spring Rising Clamp screw technology, or Tension Clamp and Push In screwless technology. The Weidmuller 8 Way Clamp Rising Terminal is suitable for a wide range of PCB design and connector uses.

• The PCB hole has a diameter of 1.3mm

• Screw clamp types accept wire up to 1.5mm²

• Tension clamp and IDC (screwless) options enable fast assembly times

• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers

• Polarising pins prevent mismatch connections.
