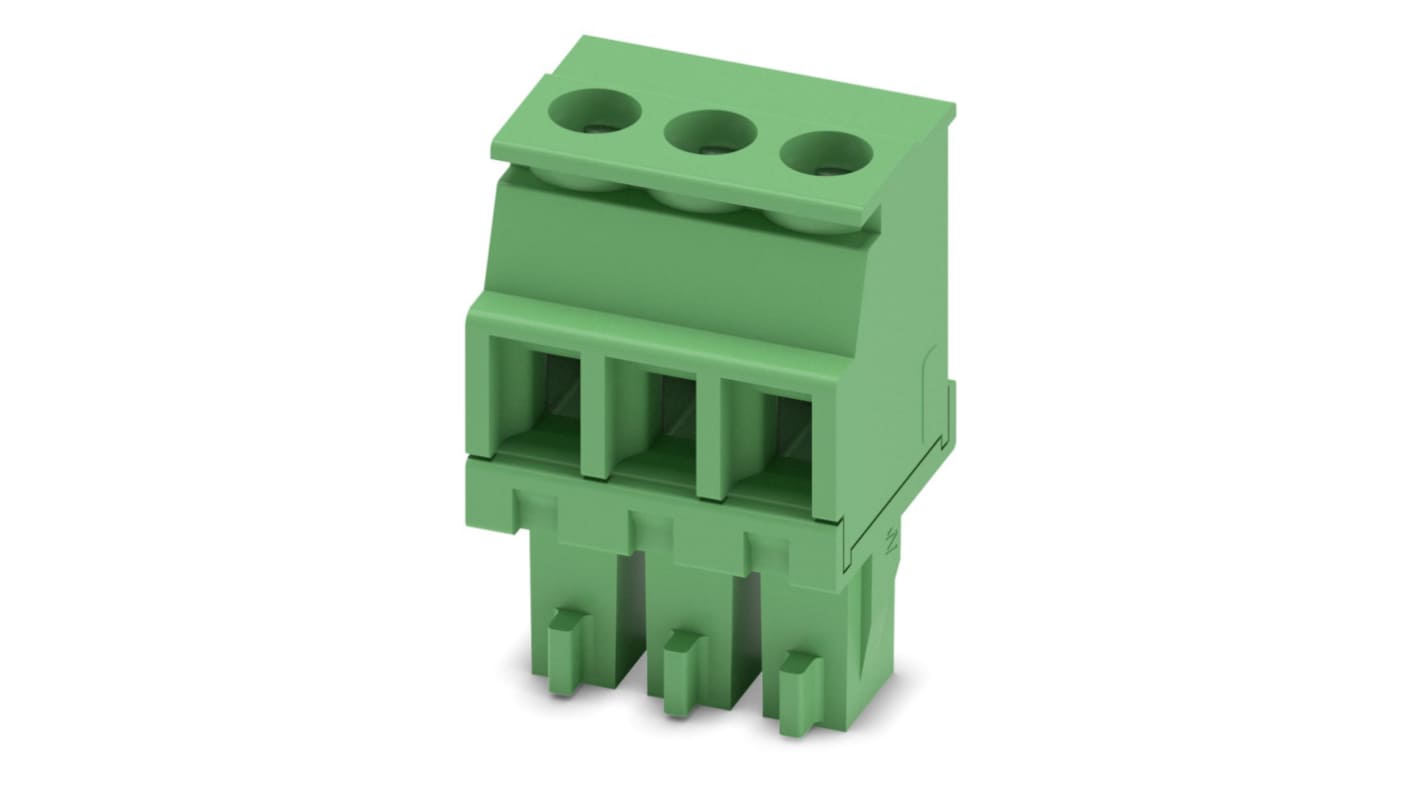

Phoenix Contact MCVR 1.5/3-ST-3.81 Series Pluggable Terminal Block, 3-Contact, 3.81 mm Pitch, 1 Row, 1827130
- N° de stock RS:
- 170-3910
- Référence fabricant:
- 1827130
- Fabricant:
- Phoenix Contact
Sous-total (1 boîte de 250 unités)*
699,75 €
(TVA exclue)
846,75 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 10 juillet 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | La Boite* |
|---|---|---|
| 250 + | 2,799 € | 699,75 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 170-3910
- Référence fabricant:
- 1827130
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Number of Contacts | 3 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 3.81mm | |
| Number of Rows | 1 | |
| Current | 8A | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 2mm² | |
| Connector Gender | Female | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | Straight | |
| Wire Connection Method | Screw | |
| Colour | Green | |
| Voltage | 320V | |
| Series | MCVR 1.5/3-ST-3.81 | |
| Standards/Approvals | RoHS | |
| Width | 10.4mm | |
| Length | 12.22mm | |
| Depth | 19.1mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Number of Contacts 3 | ||
Product Type Pluggable Terminal Block | ||
Pitch 3.81mm | ||
Number of Rows 1 | ||
Current 8A | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 2mm² | ||
Connector Gender Female | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation Straight | ||
Wire Connection Method Screw | ||
Colour Green | ||
Voltage 320V | ||
Series MCVR 1.5/3-ST-3.81 | ||
Standards/Approvals RoHS | ||
Width 10.4mm | ||
Length 12.22mm | ||
Depth 19.1mm | ||
Phoenix Contact PCB Header, Straight Body, Single Row - MCVR 1,5/ 3-ST-3,81 - 1827130
Give a power boost to your circuit board using this PCB header from Phoenix Contact. Thanks to its three-contact design, you can use this unit to attach multiple connections to your system. The robust copper alloy contacts deliver the high electrical conductivity needed for stable signal transmission. These contacts are plated in tin, so they won't fall victim to corrosion in damp or humid conditions.
With a broad conductor cross-section range between 28 and 16AWG, this is a go-to for connecting commonly used wires. You simply screw in your conductors to the termination points to ensure a secure connection. The built-in tension sleeve keeps a tight hold on wires so they'll hold their grip in shaky conditions. Thanks to a straight body orientation, you can slot the header into your front-facing panel without any fuss.
Features & Benefits
• UL 94 V0 flammability rating helps stop fire from spreading
• Ambient operating temperature range of -40°C to +100°C to stand up to demanding conditions
• Polyamide body offers thermal resistance to prevent overheating and resists wear to deliver a long service life
Phoenix Contact MINI COMBICON MCVR & MCVW 3.81mm Plug-In Terminal Block Connectors
MINI COMBICON MCVR & MCVW 3.81mm pitch cable mount plug-in Terminal Block connectors with a 0.14 - 1.5mm2 screw connection and 90° plug-in direction.
MCVR series Terminal Block connectors (part numbers prefixed with 18271, 18272, 18283, 18284) have the conductor entry facing the coding side. Part numbers prefixed with 18283, 18284 also have a screw flange.
MCVW series Terminal Block connectors (part numbers prefixed 18269, 18270, 18271, 18284, 18285, 18286) have the conductor entry facing the rippled side. Part numbers prefixed with 18284, 18285, 18286 also have a screw flange.
For marker label see stock number 648-5508
For screwdriver see stock number 390-9663
