TE Connectivity Pluggable I/O Connector QSFP28 Male Cable 2 Port 38-Position, 2368650-5
- N° de stock RS:
- 265-7200
- Référence fabricant:
- 2368650-5
- Fabricant:
- TE Connectivity
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
522,26 €
(TVA exclue)
631,93 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Dernier stock RS
- 4 dernière(s) unité(s), prête(s) à l'envoi d'un autre centre de distribution
Unité | Prix par unité |
|---|---|
| 1 - 1 | 522,26 € |
| 2 - 2 | 501,37 € |
| 3 - 3 | 482,08 € |
| 4 - 4 | 464,23 € |
| 5 + | 447,65 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 265-7200
- Référence fabricant:
- 2368650-5
- Fabricant:
- TE Connectivity
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | TE Connectivity | |
| Product Type | Pluggable I/O Connector | |
| Termination Type | Cable | |
| Form Factor | QSFP28 | |
| Current | 750mA | |
| Number of Ports | 2 | |
| Orientation | Straight | |
| Number of Contacts | 38 | |
| Connector Gender | Male | |
| Contact Material | Copper | |
| Voltage | 3.6V | |
| Series | 2368650 | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Sélectionner tout | ||
|---|---|---|
Marque TE Connectivity | ||
Product Type Pluggable I/O Connector | ||
Termination Type Cable | ||
Form Factor QSFP28 | ||
Current 750mA | ||
Number of Ports 2 | ||
Orientation Straight | ||
Number of Contacts 38 | ||
Connector Gender Male | ||
Contact Material Copper | ||
Voltage 3.6V | ||
Series 2368650 | ||
Contact Gender Male | ||
Standards/Approvals No | ||
- Pays d'origine :
- CN

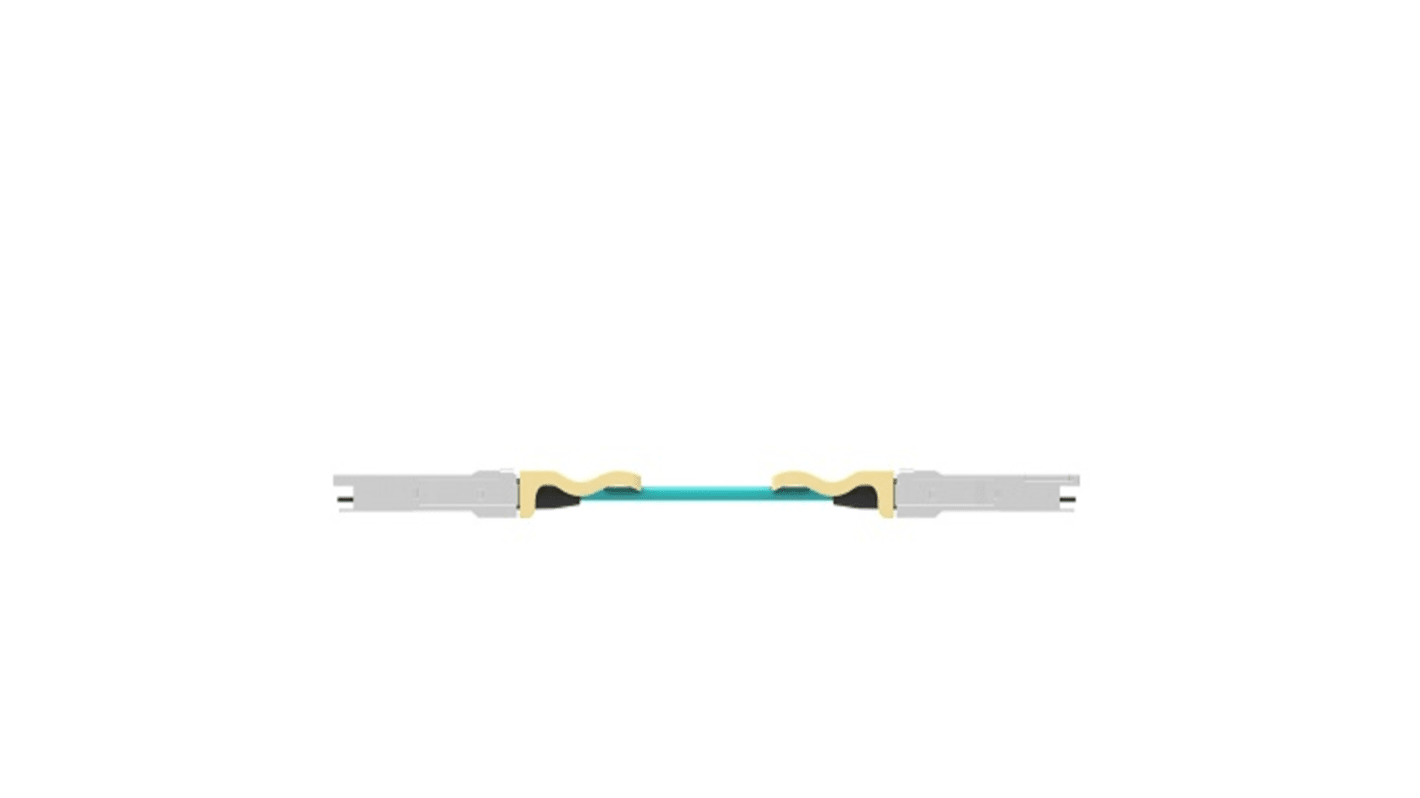

The TE Connectivity active optical cable has four channel with full duplex type optical cable. This optical cable has multi rate capability of 10 Gbps to 25.78125 Gbps per channel. Also this optical cable offers low power consumption which is less than 2.5 W per cable end.
Single 3.3 V power supply
Maximum link length of 70m on OM3 or 100m on OM4
Built in digital diagnostic functions and compliant with SFF 8636
Hot pluggable
Used for 10 or 25 Ethernet
Commercial operating case temperature range is zero to 70 degree Celsius
RoHS compliant
