Amphenol Communications Solutions Pluggable I/O Connector QSFP-DD I/O Connector Male PCB 1 Port 76-Position,

Voir la catégorie
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
N° de stock RS:
262-0079
Référence fabricant:
UE36D1620005A4A
Fabricant:
Amphenol Communications Solutions
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Amphenol Communications Solutions

Termination Type

PCB

Sub Type

I/O Connector

Product Type

Pluggable I/O Connector

Form Factor

QSFP-DD

Current

500mA

Number of Ports

1

Number of Contacts

76

Contact Material

Copper Alloy

Connector Gender

Male

Voltage

30V

Housing Material

Glass, Thermoplastic

Series

QSFP

Contact Gender

Male

Standards/Approvals

RoHS

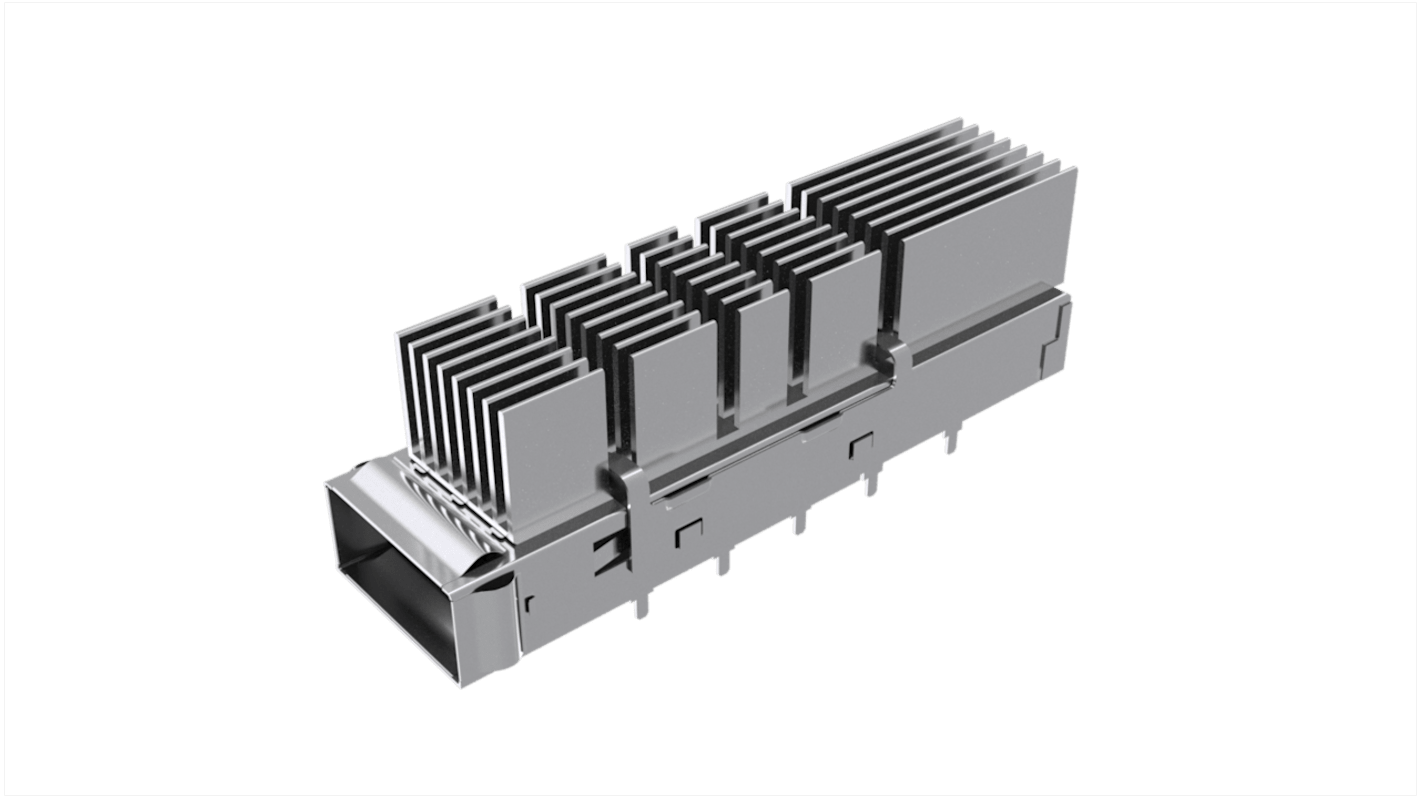

The Amphenol Communications Solutions QSFP DD connector is a interconnect system is comprised of a 76 position with 0.8mm pitch connector built for use in high speed serial applications. Each port supports up to 400 G byte per sec in aggregate over an 8 x 50 G byte per sec electrical interface. The cage and connector design provides backwards compatibility to QSFP28 modules which can be inserted into a QSFP DD port and connected to 4 of the 8 electrical channels. It has one of the industry leading multi lane pluggable form factors used across Ethernet and fibre channel and infiniband.

Electrical interface employs 8 lanes that support 25G byte per sec

NRZ modulation or 56G byte per sec PAM4

Supports passive and active copper and optical solutions products

MSA supported standard interface

Multiple connector and heat sink configurations

QSFP series double density product with 8 channels per port

Backwards mating compatible with QSFP

Multiple connector and heat sink configurations
