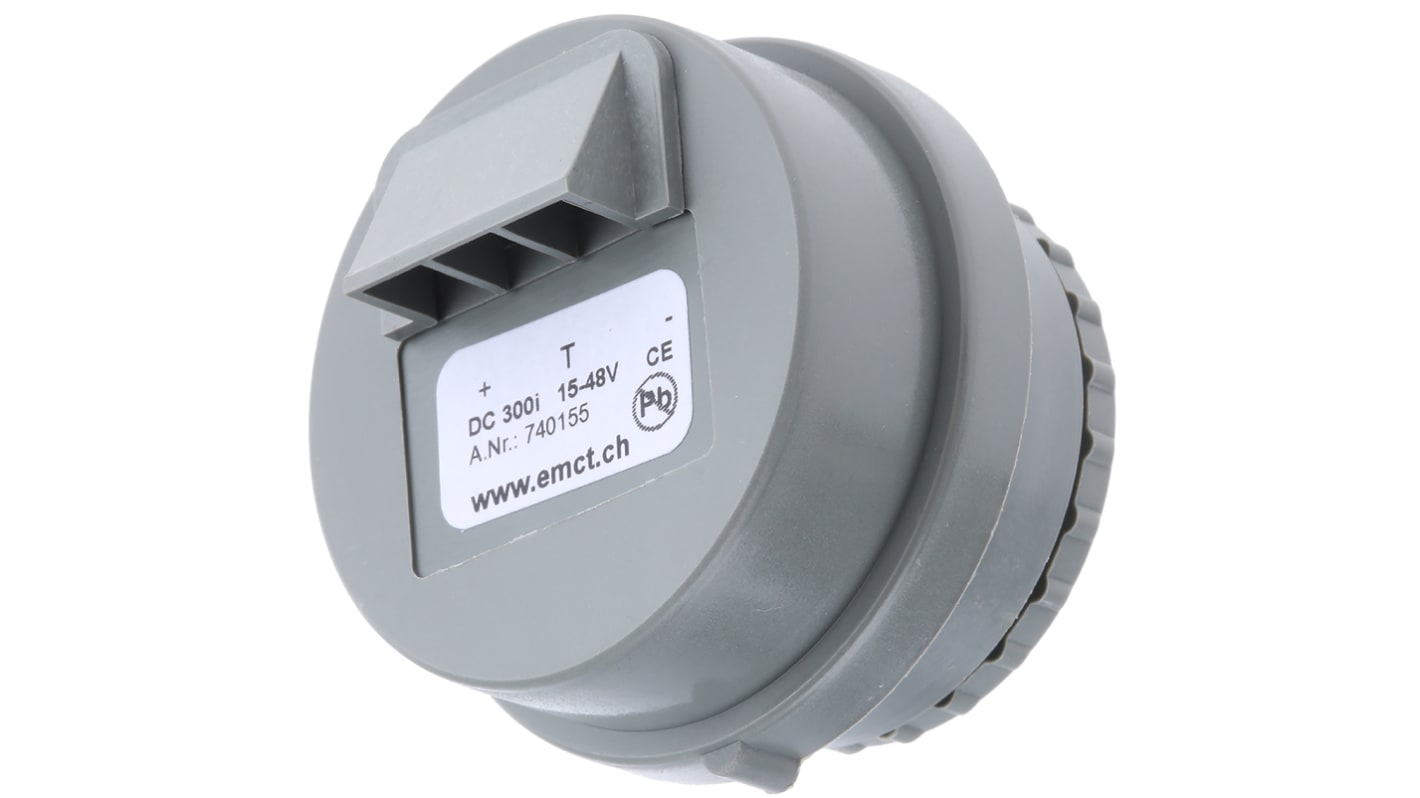

EMCT 95 dB Panel Continuous or Intermittent Internal 28.5 mm Piezo Buzzer Component 1.5 V Min 230V Max
- N° de stock RS:
- 102-5195
- Référence fabricant:
- DC300I15-48V
- Fabricant:
- EMCT
Offre groupée disponible
Sous-total (1 unité)*
44,84 €
(TVA exclue)
54,26 €
(TVA incluse)
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Unité | Prix par unité |
|---|---|
| 1 - 4 | 44,84 € |
| 5 - 9 | 43,07 € |
| 10 - 24 | 40,81 € |
| 25 - 49 | 38,57 € |
| 50 + | 35,42 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 102-5195
- Référence fabricant:
- DC300I15-48V
- Fabricant:
- EMCT
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | EMCT | |
| Product Type | Piezo Buzzer Component | |
| Mount Type | Panel | |
| Minimum Supply Voltage | 1.5V | |
| Maximum Supply Voltage | 230V | |
| Sound Level | 95dB | |
| Drive Type | Internal | |
| Tone Type | Continuous or Intermittent | |
| Diameter | 25.5mm | |
| Minimum Operating Temperature | 30°C | |
| Maximum Operating Temperature | 75°C | |
| Height | 28.5mm | |
| Termination Style | Fast On Contact Tab 2.8 x 0.5 mm | |
| Standards/Approvals | No | |
| Maximum Frequency | 3100Hz | |
| Supply Current | 15mA | |
| Minimum Frequency | 2700Hz | |
| Sélectionner tout | ||
|---|---|---|
Marque EMCT | ||
Product Type Piezo Buzzer Component | ||
Mount Type Panel | ||
Minimum Supply Voltage 1.5V | ||
Maximum Supply Voltage 230V | ||
Sound Level 95dB | ||
Drive Type Internal | ||
Tone Type Continuous or Intermittent | ||
Diameter 25.5mm | ||
Minimum Operating Temperature 30°C | ||
Maximum Operating Temperature 75°C | ||
Height 28.5mm | ||
Termination Style Fast On Contact Tab 2.8 x 0.5 mm | ||
Standards/Approvals No | ||
Maximum Frequency 3100Hz | ||
Supply Current 15mA | ||
Minimum Frequency 2700Hz | ||
Panel hole mount pulsed tone buzzer screw terminals
Panel hole mounting pulsed tone buzzer
Screw terminal connections
High output levels
Internal circuitry for ac/dc operation
