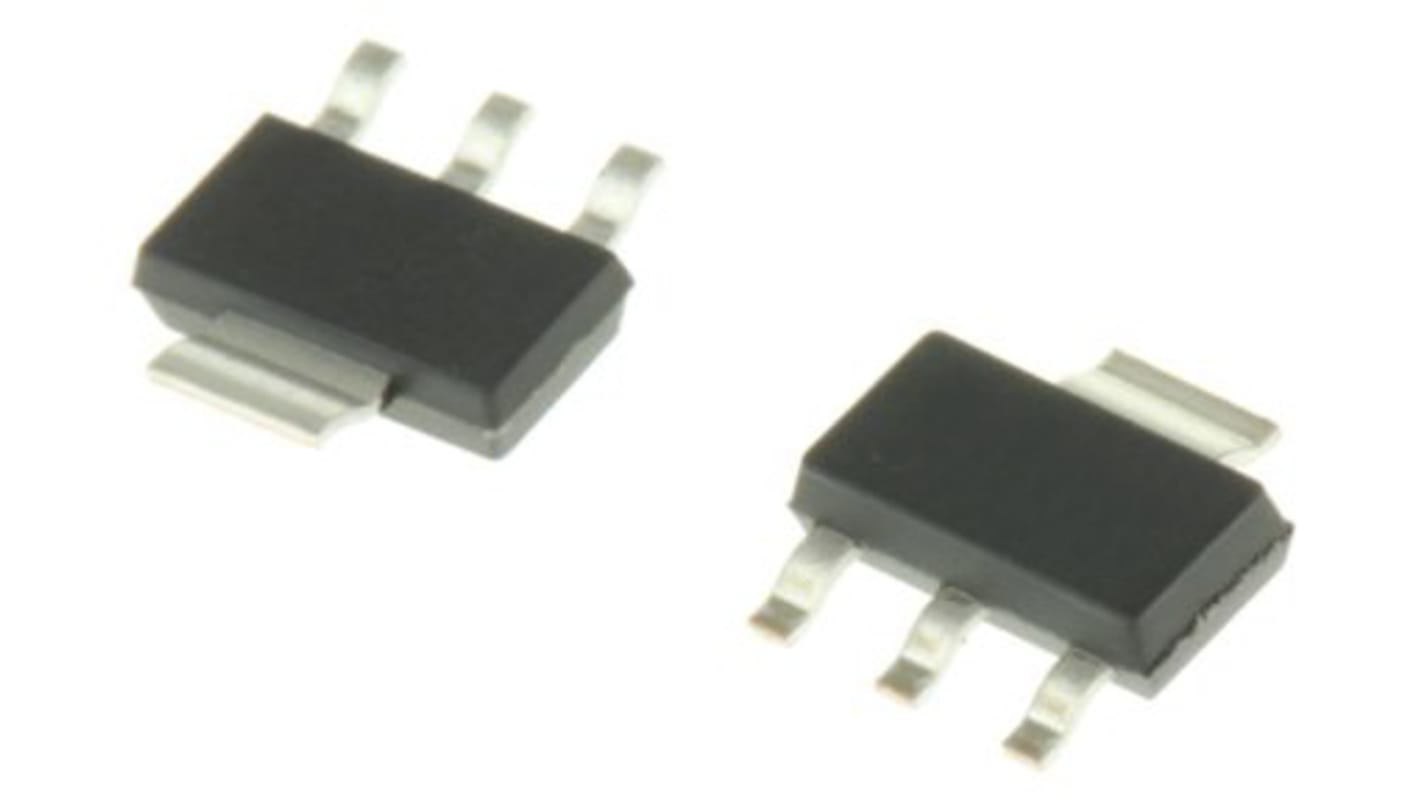

onsemi Self-Protected High Side Driver High Side Driver 4-Pin SOT-223
- N° de stock RS:
- 186-9127
- Référence fabricant:
- NCV8450ASTT3G
- Fabricant:
- onsemi
Sous-total (1 bobine de 4000 unités)*
1 952,00 €
(TVA exclue)
2 360,00 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Pénurie d'approvisionnement
En raison d'un problème d'approvisionnement, le stock est attribué au fur et à mesure de sa disponibilité.
Unité | Prix par unité | la bobine* |
|---|---|---|
| 4000 + | 0,488 € | 1 952,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 186-9127
- Référence fabricant:
- NCV8450ASTT3G
- Fabricant:
- onsemi
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | onsemi | |
| Peripheral Type | High Side Driver | |
| Product Type | Self-Protected High Side Driver | |
| Mount Type | Surface | |
| Package Type | SOT-223 | |
| Pin Count | 4 | |
| Minimum Supply Voltage | 4.5V | |
| Maximum Supply Voltage | 45V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Series | NCV8450 | |
| Standards/Approvals | RoHS | |
| Length | 6.7mm | |
| Height | 1.75mm | |
| Automotive Standard | AEC-Q101 | |
| Sélectionner tout | ||
|---|---|---|
Marque onsemi | ||
Peripheral Type High Side Driver | ||
Product Type Self-Protected High Side Driver | ||
Mount Type Surface | ||
Package Type SOT-223 | ||
Pin Count 4 | ||
Minimum Supply Voltage 4.5V | ||
Maximum Supply Voltage 45V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Series NCV8450 | ||
Standards/Approvals RoHS | ||
Length 6.7mm | ||
Height 1.75mm | ||
Automotive Standard AEC-Q101 | ||
The NCV8450 is a fully protected High-Side Smart Discrete device with a Typical RDSOn of 1 Ohm and an internal current Limit of 0.8 A typical. The device can switch a variety of resistive, inductive, and capacitive loads.
Short Circuit Protection
Thermal Shutdown with Automatic Restart
Overvoltage Protection
Integrated Clamp for Inductive Switching
Loss of Ground Protection
ESD Protection
Slew Rate Control for Low EMI
Very Low Standby Current
End Products
Automobiles
