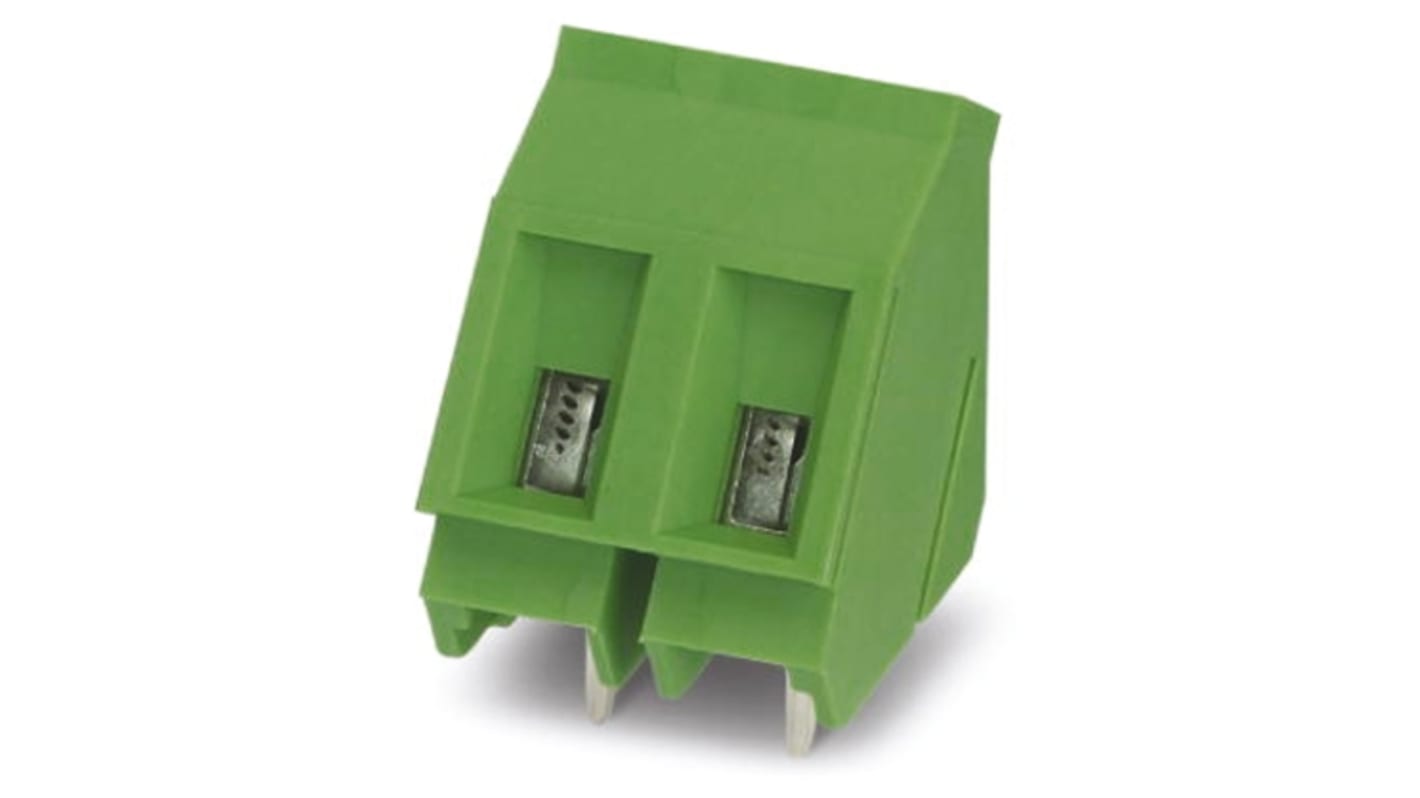

Phoenix Contact GSMKDS 3/2-7.62 Series PCB Terminal Block, 2-Contact, 7.62 mm Pitch, 1 Row, 1733729

Voir la catégorie
Offre groupée disponible

Sous-total (1 unité)*

2,09 €

(TVA exclue)

2,53 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 190 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité
Prix par unité
1 - 92,09 €
10 - 241,90 €
25 - 491,70 €
50 - 991,54 €
100 +1,38 €

*Prix donné à titre indicatif

N° de stock RS:
802-4717
Référence fabricant:
1733729
Fabricant:
Phoenix Contact
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Phoenix Contact

Number of Contacts

2

Product Type

PCB Terminal Block

Pitch

7.62mm

Current

24A

Number of Rows

1

Minimum Wire Size mm²

0.2mm²

Housing Material

Polyamide

Maximum Wire Size mm²

2.5mm²

Connector Gender

Female

Minimum Wire Size AWG

24AWG

Maximum Wire Size AWG

12AWG

Orientation

Angled

Wire Connection Method

Spring Cage

Colour

Green

Voltage

400V

Length

16mm

Standards/Approvals

No

Depth

18mm

Series

GSMKDS 3/2-7.62

Width

16mm

Phoenix Contact COMBICON GMKDS 7.62mm PCB Terminal Blocks


The GMKDS range of PCB terminal blocks from Phoenix contact are great 7.62mm blocks that are through-hole and can easily be wave soldered to the PCB. These PCB Terminal blocks feature a low-temperature rise thanks to maximum contact force and have integrated protective guards that prevent you incorrectly inserting the conductors underneath the tension sleeve. The GMKDS terminal blocks are also a 7.62 mm pitch to have an increased voltage up to 630 V.

They're made from a durable and strong PA (Polyamide-Nylon) material and the material of the contact is CU (Copper). Furthermore, you simply just need to strip 8mm from your wire and insert them into the ports and simply tighten down an M3 screw for a secure and reliable connection over a long time.

Features and benefits:


  • Allows connection of two conductors

  • Protective guides prevent you from incorrectly inserting the conductors underneath the tension sleeve

  • Worldwide known connection gives you maximum extensive compatibility

  • Latching on the side of the unit enables various mounting positions to be combined

  • Nominal current of 24 A

  • Allows quick and easy connection to circuit boards once you've soldered it

  • 7.62 mm Pitch

    • Phoenix Contact COMBICON 7.62mm Pitch PCB Terminal Blocks
