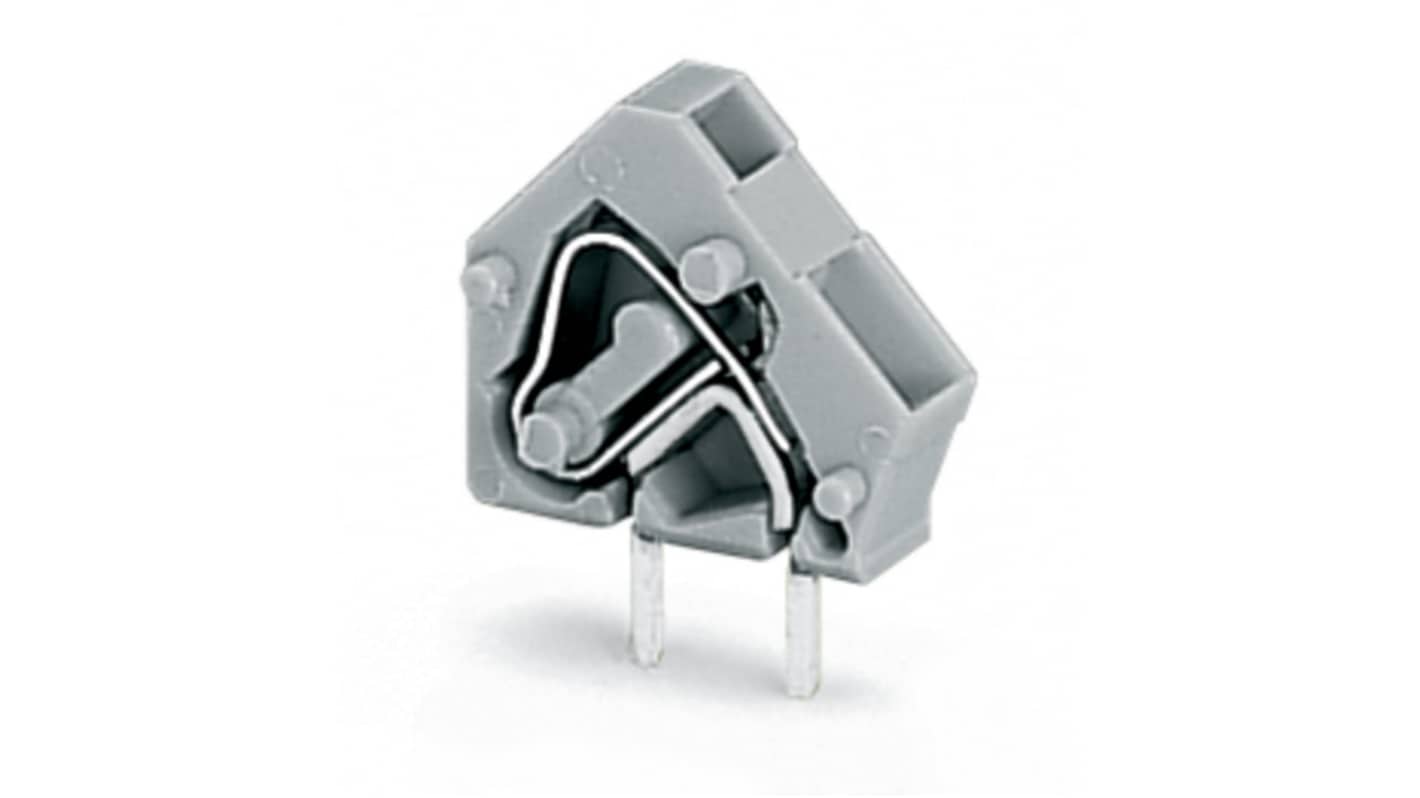

WAGO 236 Series PCB Terminal Block, 1-Contact, 5.08 mm Pitch, Through Hole, 1 Row
- N° de stock RS:
- 221-185
- Référence fabricant:
- 236-401/332-000
- Fabricant:
- WAGO
Sous-total (1 boîte de 100 unités)*
36,60 €
(TVA exclue)
44,29 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 20 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Boîte(s) | La Boite | Prix par unité* |
|---|---|---|
| 1 + | 36,60 € | 0,366 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 221-185
- Référence fabricant:
- 236-401/332-000
- Fabricant:
- WAGO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | WAGO | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 1 | |
| Pitch | 5.08mm | |
| Current | 24A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 2mm² | |
| Mount Type | Through Hole | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | Perpendicular, Parallel | |
| Colour | Grey | |
| Wire Connection Method | Cage Clamp | |
| Voltage | 25V | |
| Depth | 14mm | |
| Width | 7.2mm | |
| Series | 236 | |
| Standards/Approvals | No | |
| Sélectionner tout | ||
|---|---|---|
Marque WAGO | ||
Product Type PCB Terminal Block | ||
Number of Contacts 1 | ||
Pitch 5.08mm | ||
Current 24A | ||
Number of Rows 1 | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 2mm² | ||
Mount Type Through Hole | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation Perpendicular, Parallel | ||
Colour Grey | ||
Wire Connection Method Cage Clamp | ||
Voltage 25V | ||
Depth 14mm | ||
Width 7.2mm | ||
Series 236 | ||
Standards/Approvals No | ||
- Pays d'origine :
- CH
The Wago Stackable PCB Terminal Block represents a pinnacle of innovation, designed for efficient connections in a compact format. With a robust grey construction, it integrates seamlessly into various applications, facilitating reliable electrical connections without compromising on space. Its high performance CAGE CLAMP technology ensures secure and effortless terminations, enabling quick assembly and disassembly. The terminal block supports versatile conductor cross sections, making it suitable for a diverse range of wiring configurations.
Constructed with high quality materials to ensure durability and effective performance
Offers a modular design promoting flexibility in design and layout
Solder pin layout provides a reliable and secure PCB contact
Delivers compliance with RoHS standards highlighting environmental responsibility
Backed by global approvals ensuring compatibility with international standards
