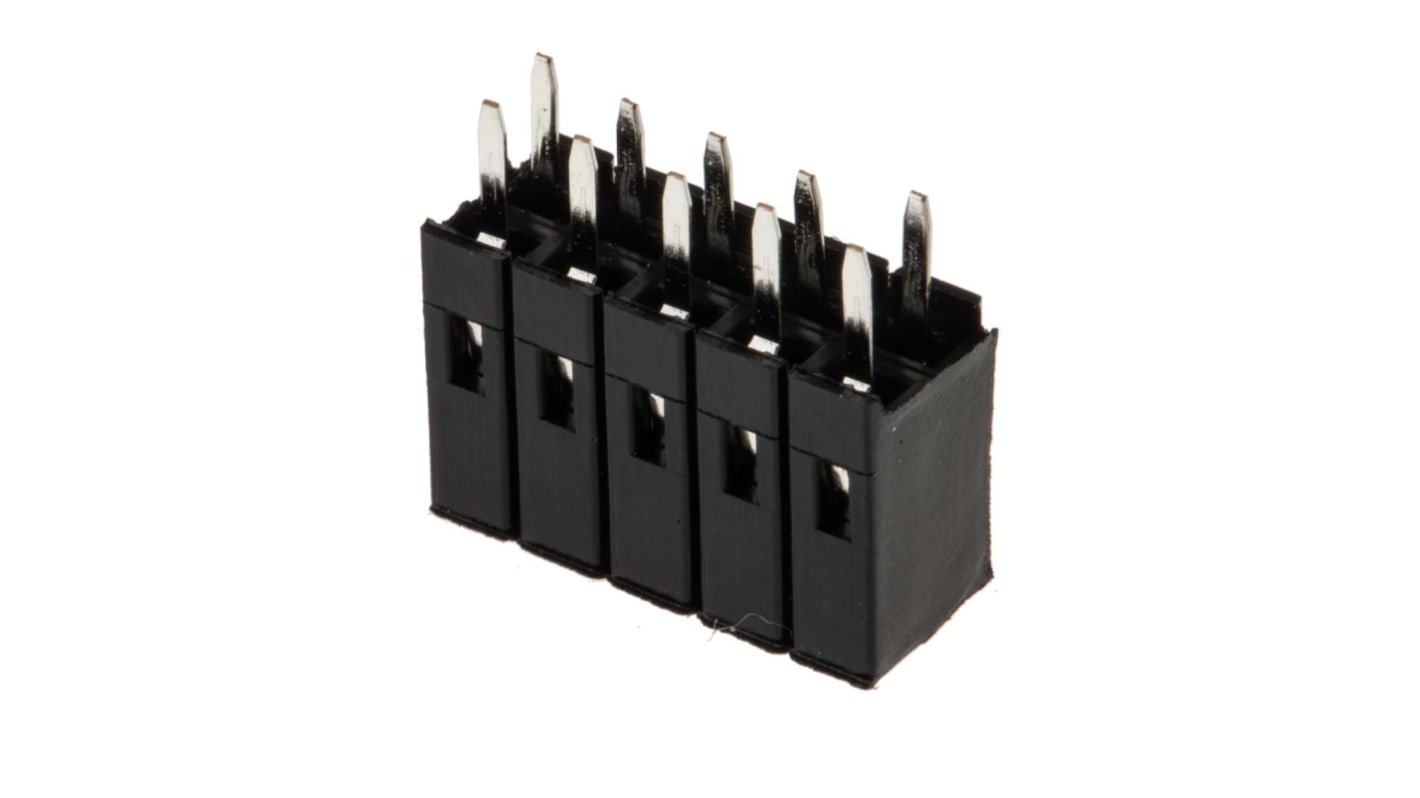

RS PRO W34821xxTHTRC Series Straight Through Hole PCB Socket, 10-Contact, 2 Row, 2.54 mm Pitch Solder

Voir l’ensemble des PCB Sockets
Offre groupée disponible

Sous-total (1 paquet de 10 unités)*

15,16 €

(TVA exclue)

18,34 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 120 unité(s) prête(s) à être expédiée(s)
  • Plus 3 300 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
le paquet*
10 - 1901,516 €15,16 €
200 - 7401,366 €13,66 €
750 - 29901,214 €12,14 €
3000 - 59901,063 €10,63 €
6000 +0,91 €9,10 €

*Prix donné à titre indicatif

N° de stock RS:
251-8222
Numéro d'article Distrelec:
304-02-997
Fabricant:
RS PRO
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

RS PRO

Number of Contacts

10

Product Type

PCB Socket

Number of Rows

2

Sub Type

Socket Strip

Pitch

2.54mm

Current

12A

Termination Type

Solder

Mount Type

Through Hole

Orientation

Straight

Connector System

Board-to-Board

Series

W34821xxTHTRC

Minimum Operating Temperature

-40°C

Row Pitch

2.54mm

Contact Gender

Female

Maximum Operating Temperature

105°C

Contact Plating

Tin

Contact Material

Bronze

Standards/Approvals

RoHS

Pays d'origine :
TW

RS PRO 2.54 mm Pitch 10-Way 2-Row Straight PCB Socket, Through Hole, Solder Termination


Link up printed circuit boards (PCBs) with this handy PCB socket from our tried-and-tested RS PRO range. Together with a male PCB header, this socket can connect PCBs without cabling, offering a stable and secure connection.

With a solder termination and straight body orientation, this PCB socket is easy to install. It has a 2.54 mm pitch in a double-row format. Plus, its through-hole mounting system offers a sufficient amount of room to hand-solder components. By making it possible to vertically stack PCBs, this component provides a great alternative to soldering relays directly onto a PCB.

You can use this socket in an operating temperature range of -40° and +105°C. You'll find it in settings that require PCB boards to be connected and disconnected quickly. It's suitable for most board-to-board and bussing applications.

Features and Benefits


• PCB socket

• 10-way socket strip

• Pitch of 2.54 mm

• 10 contacts

• Double row format

• Straight body orientation for easy installation

• Through-hole mounting system

• Soldering termination method

• Contact material is phosphor bronze

• Contact resistance of 20 mΩ

• Current rating of 1 A

• Operating temperature range between -40° and +105°C

RS PRO


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
