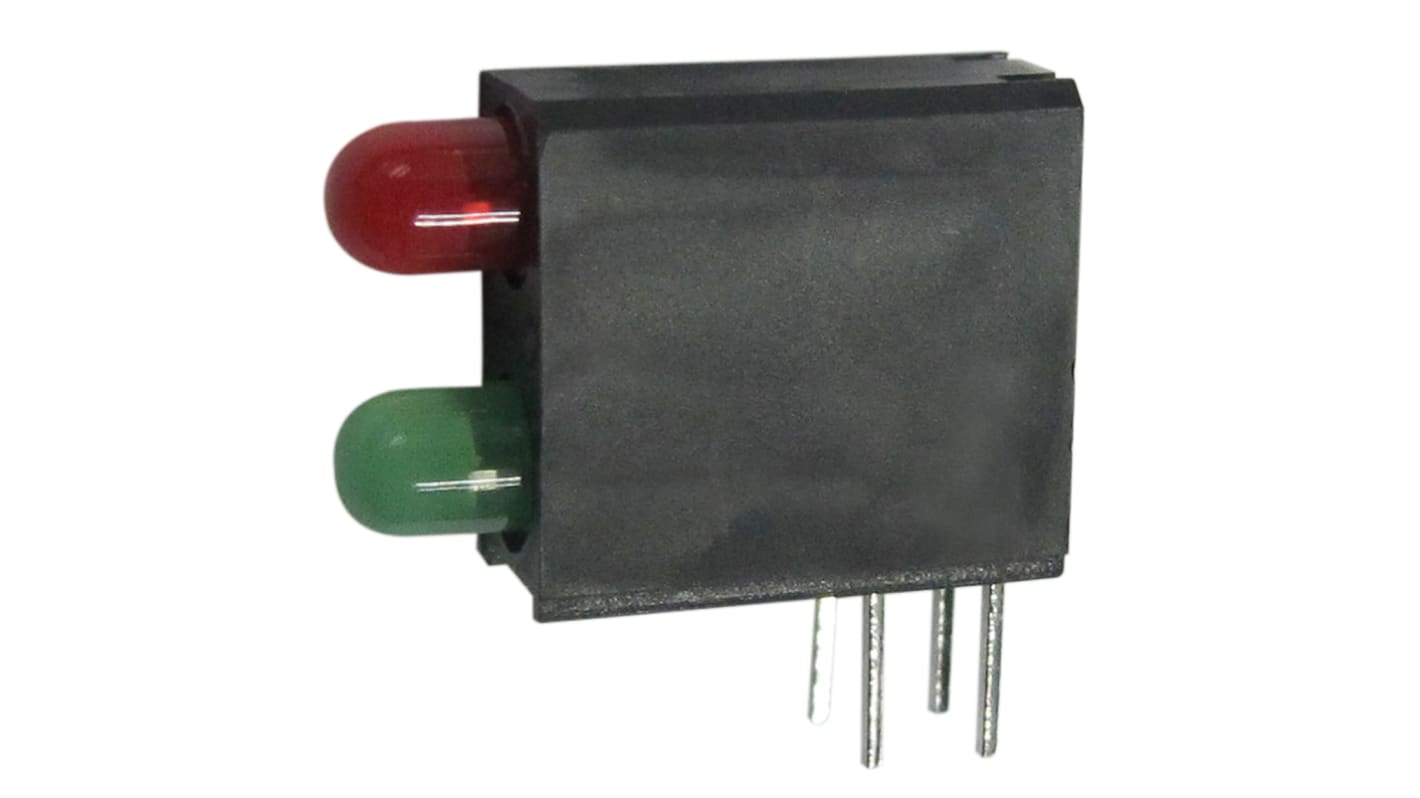

Kingbright L-710A8GE/1I1GD-RV Green, Red Right Angle PCB LED Indicator 3 mm (T-1), 2 LEDs 2.5 VMulticolour
- N° de stock RS:
- 616-4071
- Référence fabricant:
- L-710A8GE/1I1GD-RV
- Fabricant:
- Kingbright
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 paquet de 10 unités)*
7,82 €
(TVA exclue)
9,46 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 10 unité(s) prête(s) à être expédiée(s)
- Plus 300 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 10 - 40 | 0,782 € | 7,82 € |
| 50 - 190 | 0,71 € | 7,10 € |
| 200 - 490 | 0,601 € | 6,01 € |
| 500 - 990 | 0,559 € | 5,59 € |
| 1000 + | 0,52 € | 5,20 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 616-4071
- Référence fabricant:
- L-710A8GE/1I1GD-RV
- Fabricant:
- Kingbright
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Kingbright | |
| LED Colour | Green, Red | |
| Product Type | PCB LED Indicator | |
| Number of LEDs | 2 | |
| Sub Type | Multicolour | |
| Maximum Forward Current | 30mA | |
| Number of Pins | 2 | |
| Viewing Angle | 40 ° | |
| Minimum Supply Voltage | 2.5V | |
| LED Orientation | Right Angle | |
| LED Material | GaP | |
| Multicolour/Single Colour | Multicolour | |
| Luminous Intensity | 25mcd | |
| Length | 14.05mm | |
| Standards/Approvals | RoHS | |
| Lens Finish | Diffused | |
| Lens Colour | Green, Red | |
| LED Size | 3 mm (T-1) | |
| Power Dissipation | 75mW | |
| Sélectionner tout | ||
|---|---|---|
Marque Kingbright | ||
LED Colour Green, Red | ||
Product Type PCB LED Indicator | ||
Number of LEDs 2 | ||
Sub Type Multicolour | ||
Maximum Forward Current 30mA | ||
Number of Pins 2 | ||
Viewing Angle 40 ° | ||
Minimum Supply Voltage 2.5V | ||
LED Orientation Right Angle | ||
LED Material GaP | ||
Multicolour/Single Colour Multicolour | ||
Luminous Intensity 25mcd | ||
Length 14.05mm | ||
Standards/Approvals RoHS | ||
Lens Finish Diffused | ||
Lens Colour Green, Red | ||
LED Size 3 mm (T-1) | ||
Power Dissipation 75mW | ||
- Pays d'origine :
- CN
Kingbright 3mm Bi-Level LED Indicators
This family of PCB LED indicators, from Kingbright, are 3mm (T-1) bi-level indicators. They consist of through hole LEDs within a black plastic housing. The housing holds the LEDs at a right angle to the board. Their bi-level mounting ensure optimisation of board space.
Features of the 3mm bi-level indicators:
3mm (T-1) through-hole LEDs
Black plastic housing
Right angled
Variety of colours
Wide viewing angle
High reliability
PCB LED Indicators, Kingbright
