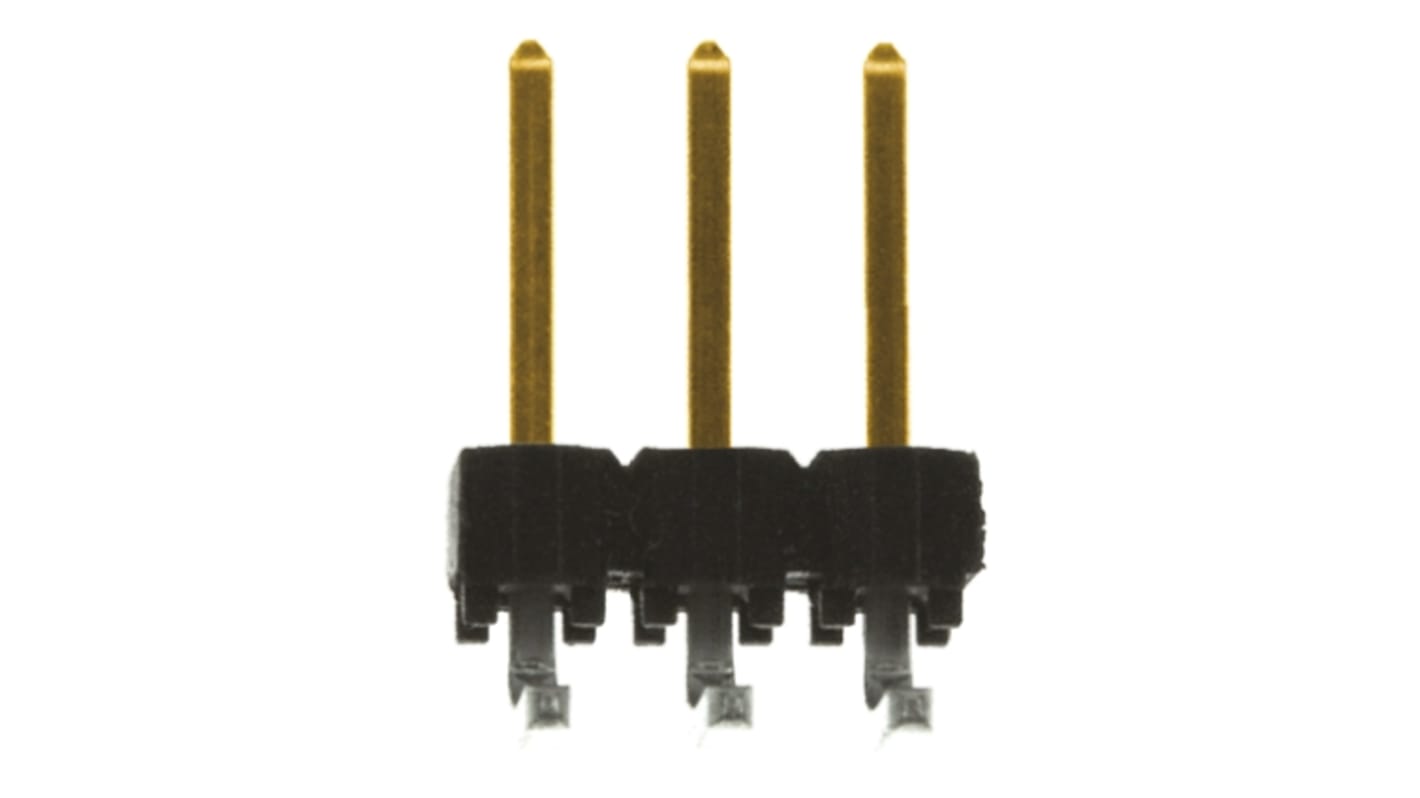

Samtec TSW Series Right Angle Through Hole Pin Header, 3 Contact(s), 2.54 mm Pitch, 1 Row, Unshrouded
- N° de stock RS:
- 767-0867
- Référence fabricant:
- TSW-103-08-L-S-RA
- Fabricant:
- Samtec
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
0,47 €
(TVA exclue)
0,57 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 6 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 890 unité(s) expédiée(s) à partir du 10 juin 2026
- Plus 184 unité(s) expédiée(s) à partir du 11 juin 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 0,47 € |
| 10 - 99 | 0,44 € |
| 100 - 499 | 0,34 € |
| 500 - 999 | 0,31 € |
| 1000 + | 0,25 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 767-0867
- Référence fabricant:
- TSW-103-08-L-S-RA
- Fabricant:
- Samtec
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Samtec | |
| Series | TSW | |
| Product Type | Pin Header | |
| Pitch | 2.54mm | |
| Current | 7.6A | |
| Housing Material | Glass Filled Polyester | |
| Number of Contacts | 3 | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | Board-to-Board, Wire-to-Board | |
| Mount Type | Through Hole | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 2.54mm | |
| Termination Type | Solder | |
| Tail Pin Length | 2.29mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Mating Pin Length | 5.84mm | |
| Voltage | 450V | |
| Sélectionner tout | ||
|---|---|---|
Marque Samtec | ||
Series TSW | ||
Product Type Pin Header | ||
Pitch 2.54mm | ||
Current 7.6A | ||
Housing Material Glass Filled Polyester | ||
Number of Contacts 3 | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System Board-to-Board, Wire-to-Board | ||
Mount Type Through Hole | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 2.54mm | ||
Termination Type Solder | ||
Tail Pin Length 2.29mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Mating Pin Length 5.84mm | ||
Voltage 450V | ||
Samtec TSW Series Pin Header, 7.6A Current Rating, Through Hole Mount - TSW-103-08-L-S-RA
This pin header by Samtec is a Crucial component in electronics and mechanical applications. Featuring a right-angle body orientation and through-hole mounting, this pin header provides a reliable connection for various devices and systems. With gold-plated contacts and a pitch of 2.54mm, this pin header ensures secure and efficient data transmission.
Features & Benefits
• Right-angle body orientation for easy connection in tight spaces
• Through-hole mounting type for secure attachment to circuit boards
• Gold-plated contacts for enhanced conductivity and durability
• 2.54mm pitch suitable for various applications
Applications
• Ideal for board-to-board and wire-to-board connector systems
• Suitable for high-current applications due to its 7.6A current rating
• Can be used in environments with voltage ratings up to 450V
Can it be used in high-voltage applications?
Yes, this pin header is suitable for environments with voltage ratings up to 450V.
Will it work with board-to-board connector systems?
Yes, this pin header is compatible with board-to-board and wire-to-board connector systems.
Is the contact material durable?
The contact material is MADE of phosphor bronze, ensuring durability and reliability in various applications.
Can it handle high current?
Yes, with a current rating of 7.6A, this pin header is suitable for high-current applications.
Can it be soldered easily?
The termination method of this pin header is solder, enabling easy and secure soldering connections.
