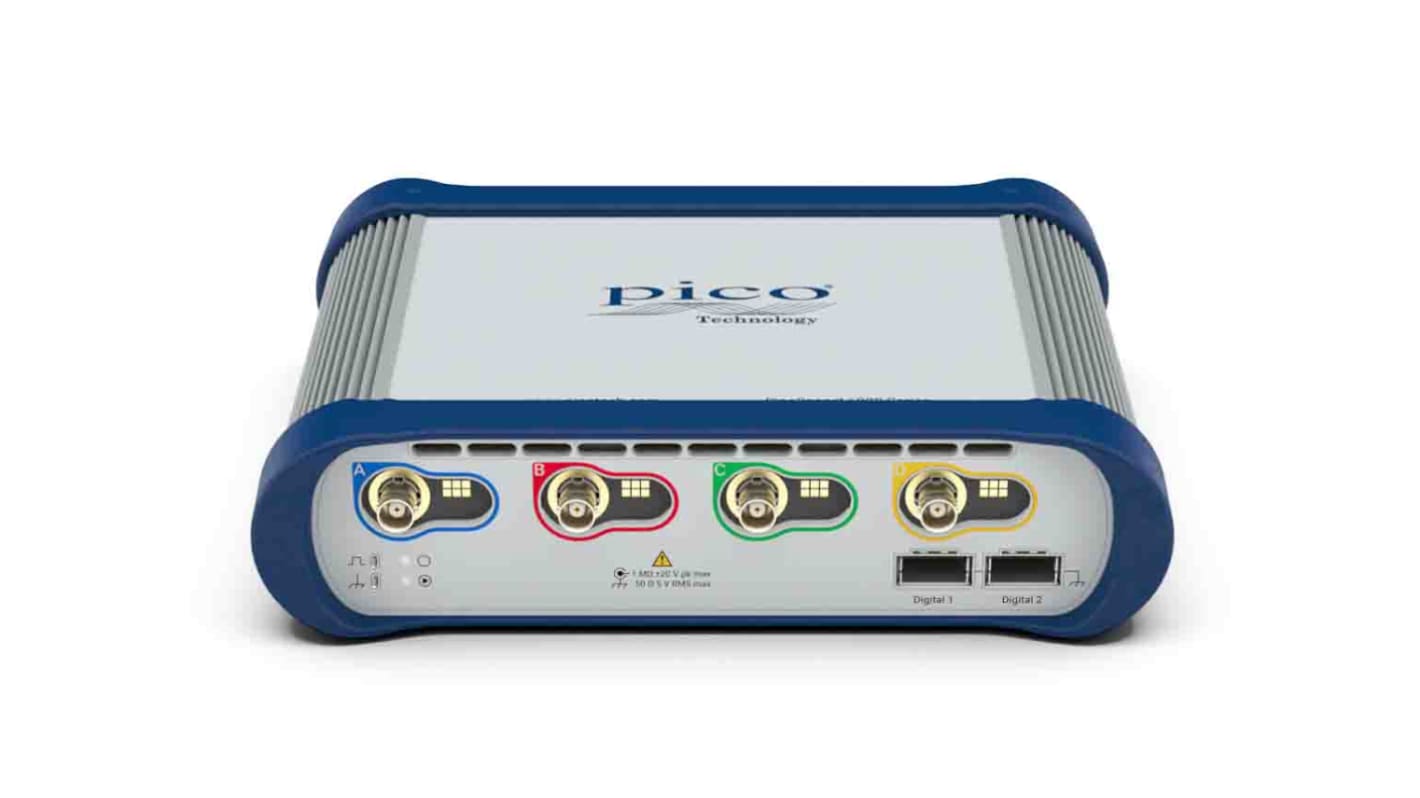

PicoScope 6000E Series, 300 MHz PC Based Oscilloscope 4-Channel, RSCAL
- N° de stock RS:
- 280-6523
- Référence fabricant:
- PicoScope 6403E
- Fabricant:
- Pico Technology
Sous-total (1 unité)*
5 100,11 €
(TVA exclue)
6 171,13 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 3 unité(s) expédiée(s) à partir du 17 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 5 100,11 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 280-6523
- Référence fabricant:
- PicoScope 6403E
- Fabricant:
- Pico Technology
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Pico Technology | |
| Product Type | Oscilloscope | |
| Bandwidth | 300MHz | |
| Number of Channels | 4 | |
| Model Number | 6403E | |
| Oscilloscope Type | PC Based | |
| Interface Type | USB | |
| Series | PicoScope 6000E | |
| Length | 245mm | |
| Height | 61.50mm | |
| Width | 192mm | |
| Standards/Approvals | REACH, RoHS, WEEE | |
| Vertical Resolution | 8 bit | |
| Power Source | AC Adapter | |
| Minimum Vertical Sensitivity | 2mV/div | |
| Minimum Time Base | 1ns/div | |
| Maximum Vertical Sensitivity | 4V/div | |
| Rise Time | 1.3ns | |
| Calibrated | RSCAL | |
| Maximum Time Base | 5000s/div | |
| Sélectionner tout | ||
|---|---|---|
Marque Pico Technology | ||
Product Type Oscilloscope | ||
Bandwidth 300MHz | ||
Number of Channels 4 | ||
Model Number 6403E | ||
Oscilloscope Type PC Based | ||
Interface Type USB | ||
Series PicoScope 6000E | ||
Length 245mm | ||
Height 61.50mm | ||
Width 192mm | ||
Standards/Approvals REACH, RoHS, WEEE | ||
Vertical Resolution 8 bit | ||
Power Source AC Adapter | ||
Minimum Vertical Sensitivity 2mV/div | ||
Minimum Time Base 1ns/div | ||
Maximum Vertical Sensitivity 4V/div | ||
Rise Time 1.3ns | ||
Calibrated RSCAL | ||
Maximum Time Base 5000s/div | ||
- Pays d'origine :
- GB
PicoScope 6000E Series Oscilloscope, 300MHz Bandwidth, 4 Channels - PicoScope 6403E
This oscilloscope is a PC-based instrument that captures and displays electrical signals when connected via USB. It provides a balanced combination of temporal and amplitude performance for laboratory diagnostics and field analysis, powered through an AC adaptor and controlled from a host computer. The unit complies with applicable environmental standards and connects using a common Interface for data acquisition and analysis.
Features and Benefits:
• 1ns/div time base for fine temporal resolution
• 1.3ns rise time enabling Rapid transient capture
• 2mV/div minimum sensitivity for small-signal measurement
• 8-bit vertical resolution for consistent amplitude sampling
• 4-channel configuration supporting multi-signal correlation
• 1.3ns rise time enabling Rapid transient capture
• 2mV/div minimum sensitivity for small-signal measurement
• 8-bit vertical resolution for consistent amplitude sampling
• 4-channel configuration supporting multi-signal correlation
Applications
• Suitable for mixed-signal timing verification tasks
• Ideal for transient and Pulse response analysis
• Used with PC software for waveform recording and review
• Can be used for multi-channel sensor diagnostics
• Suitable for educational and research lab experiments
• Ideal for transient and Pulse response analysis
• Used with PC software for waveform recording and review
• Can be used for multi-channel sensor diagnostics
• Suitable for educational and research lab experiments
What input amplitude range can I expect to measure?
The instrument offers vertical sensitivity from 2mV/div up to 4V/div to accommodate both low-level signals and larger amplitudes.
How does the instrument Interface with a computer for data transfer?
It communicates over a USB connection and is powered using an AC adaptor to supply the necessary operating power.
What are the units physical footprint and form factor?
The instrument measures 245mm in length, 192mm in width and 61.5mm in height, allowing desktop placement alongside a host PC.
Which environmental or material approvals does it meet?
It is produced in compliance with REACH, RoHS and WEEE standards.
What oscilloscope class and vertical resolution does it provide?
It is a PC-based oscilloscope with an 8-bit vertical resolution suitable for general-purpose waveform analysis.
