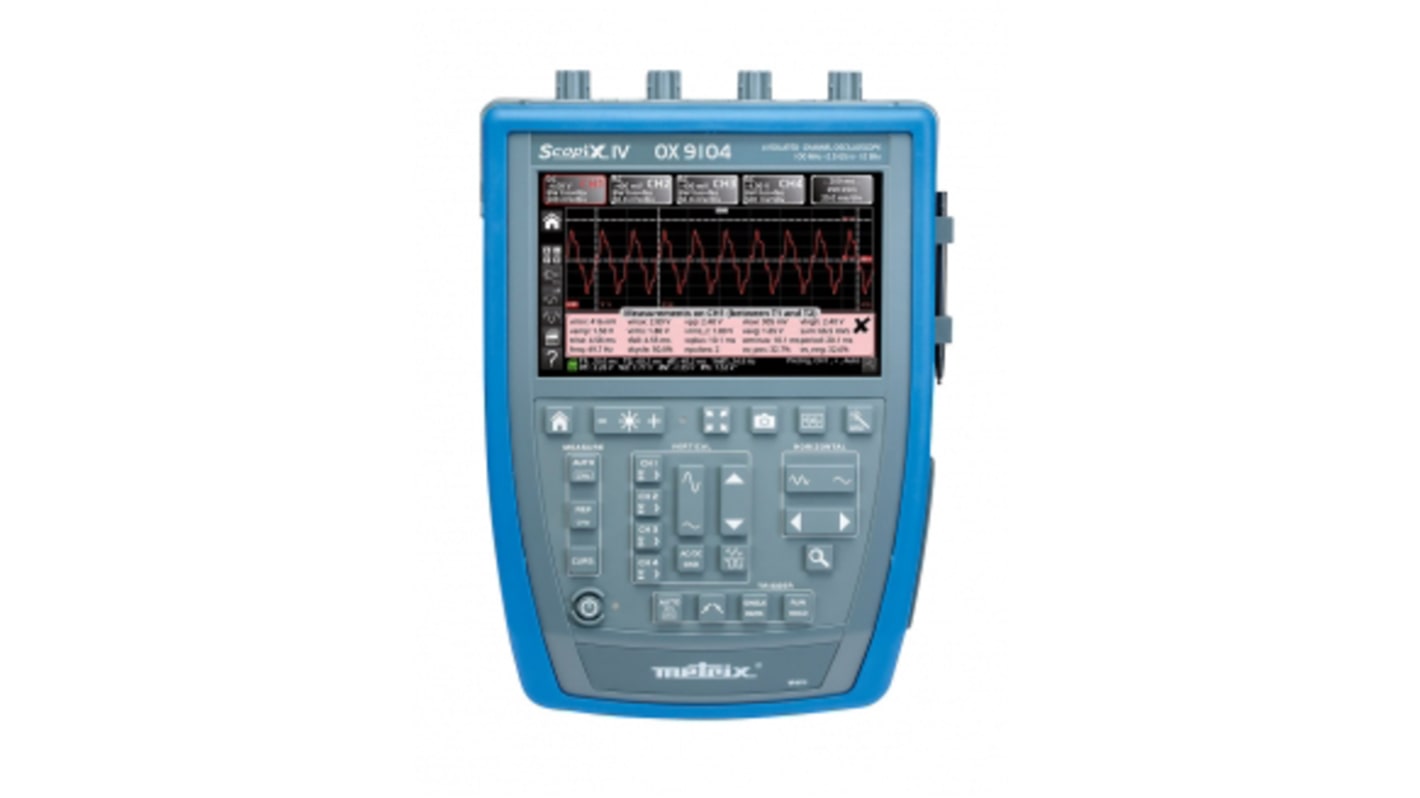

Metrix OX9104 SCOPIX IV Series, 100MHz Handheld Oscilloscope, 4 Analogue Channels - RS Calibrated

SCOPIX IV oscilloscopes are ideal for work in the field or in the lab. Pratical for all measurements in total safety, the OX 9104 is equipped with 4 totally-isolated channels with 100 MHz bandwith and a memory depth of 100 kpoints per channel, considerably increasing the available duration for recording.
The OX 9104 oscilloscope is multifunction and has available all the analytical modes : Oscilloscope, multimeter, analyser, recorder and viewing of files recorded.
The OX 9104 oscilloscope offers a genuine high performance thanks to its 12-bit converter with a vertical resolution of 0,0025%.
In addition to its advanced trigger functions (pulse width, counting, delay), OX 9104 proposes 20 automatic measurements per channel linked to cursors for comprehensive analysis.
OX 9104 benefits from standard and advanced "MATH" functions allowing users to define a mathematical function for each of the traces, along with vertical scaling and definition of the actual physical unit.
Thanks to the real-time FFT function provided simultaneously with the waveform plus qualitative analysis of the harmonics, the distortion of a signals, the pulse response, it ensures effective, accurate diagnostics when searching for a source of noise in the logic circuits.

The multi-channel, 8,000-count, 200 kHz TRMS digital multimeter measures the amplitudes, resistance, continuity, capacitance, frequency and temperatures, as well as performing component tests without changing the connections thanks to PROBIX.
The multimeter mode is linked to the logger mode, allowing time/date-stamped recordings to be made automatically (N files of 100,000 measurements each with a 0.2 s interval between 2 acquisitions.).
Power measurements are possible in this mode: single and three-phase power

Bandwith of 100 MHz, Bandwidth limit with filters 15MHz, 1,5 MHz and 5KHz
4 isolated channels 600v cat III not only between them, but also by earth by PROBIX connection
Input dynamics of 156μV to 200 V /div
Sampling rate 2.5Géch/s in single mode - 100Géch/s in repetitive ETS
Time base from 1 ns to 200s/div
Memory depth 100Kpts/channel (1Go internal memory)
Automatic, trigged,single and ROLL if time base more than 100ms/div
XY, FFT and Zoom with waveform
25 direct command keys on front panel
Quick charging in 2 hrs

1 SCOPIX IV oscilloscope delivered with a carrying bag, a PA40W-2 mains power pack/charger and 1 2P EURO mains power cable, 1 Li-Ion battery pack, 1 stylus, 1 Ethernet cable, 1 USB cable, 2 safety leads (red, black), 2 x Ø 4 mm test probes (red, black), 2 or 4 voltage probes depending on models, 1 μSD card (8 GB), 1 USB/ μSD adapter, 1 hand strap, 1 PROBIX BANANA, USB installation procedure for use of ScopeNet data export software on CD-ROM, 1 PDF user’s manual (more than 5 languages), 1 start-up guide on paper and 1 safety datasheet in 20 languages.

231-3615 HX0030C : 600V 1/10 TEST PROBE BW 250MHZ
