Teledyne LeCroy WaveSurfer 3000z Series, 500 MHz Bench Oscilloscope 4-Channel, RSCAL
- N° de stock RS:
- 264-6587
- Référence fabricant:
- WaveSurfer 3054 Promo1
- Fabricant:
- Teledyne LeCroy
Sous-total (1 unité)*
10 282,06 €
(TVA exclue)
12 441,29 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 3 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 10 282,06 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 264-6587
- Référence fabricant:
- WaveSurfer 3054 Promo1
- Fabricant:
- Teledyne LeCroy
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Teledyne LeCroy | |
| Product Type | Oscilloscope | |
| Bandwidth | 500MHz | |
| Number of Channels | 4 | |
| Oscilloscope Type | Bench | |
| Interface Type | CAN, LIN, RS232, SPI, UART, USB | |
| Series | WaveSurfer 3000z | |
| Height | 270mm | |
| Width | 380mm | |
| Standards/Approvals | CAN/CSA C22.2 61010-1-12, EMC 2014/30/EU, EN 61326-1:2013, EN 61326-2-1:2013, RoHS, UL 61010-1, UL 61010-2-030:2010 | |
| Rise Time | 800ps | |
| Maximum Time Base | 100s/div | |
| Calibrated | RSCAL | |
| Vertical Resolution | 11 bit, 8 bit | |
| Minimum Time Base | 1ns/div | |
| Minimum Vertical Sensitivity | 1mV/div | |
| Power Source | Mains | |
| Maximum Vertical Sensitivity | 10V/div | |
| Sélectionner tout | ||
|---|---|---|
Marque Teledyne LeCroy | ||
Product Type Oscilloscope | ||
Bandwidth 500MHz | ||
Number of Channels 4 | ||
Oscilloscope Type Bench | ||
Interface Type CAN, LIN, RS232, SPI, UART, USB | ||
Series WaveSurfer 3000z | ||
Height 270mm | ||
Width 380mm | ||
Standards/Approvals CAN/CSA C22.2 61010-1-12, EMC 2014/30/EU, EN 61326-1:2013, EN 61326-2-1:2013, RoHS, UL 61010-1, UL 61010-2-030:2010 | ||
Rise Time 800ps | ||
Maximum Time Base 100s/div | ||
Calibrated RSCAL | ||
Vertical Resolution 11 bit, 8 bit | ||
Minimum Time Base 1ns/div | ||
Minimum Vertical Sensitivity 1mV/div | ||
Power Source Mains | ||
Maximum Vertical Sensitivity 10V/div | ||
- Pays d'origine :
- CN

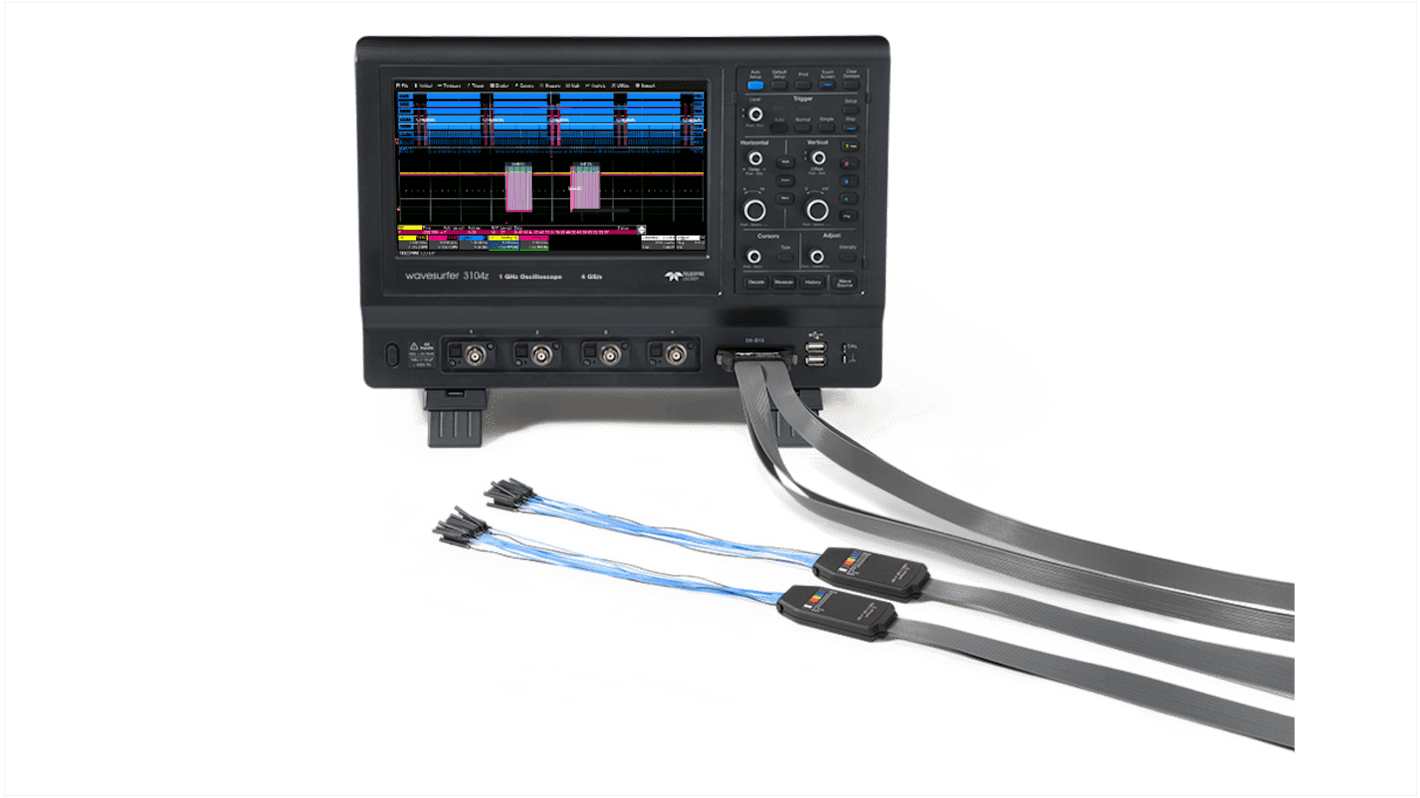

Teledyne LeCroy, WaveSurfer 3054z Promo1, Mixed Signal FULLY LOADED Oscilloscope, 500 MHz, 16 Digital Channels, 4 Analogue Channels
Teledyne LeCroy brings you a range of Mixed Signal Promotional WaveSurfer 3000z oscilloscopes all built with a premium quality. The 3000z range of promotional mixed signal oscilloscopes provide brilliant features such as; 16 digital channels, capacitive touch screen, history mode, powerful triggering, segmented memory acquisition and Advanced anomaly detection. WaveSurfer promotional Mixed Signal oscilloscopes are equipped with all trigger/decode and Power Analysis features as standard.
500 MHz Bandwidth
Sample rate of up to 4GS/s
16 Digital channel MSO
Large memory up to 20Mpts
All Trigger/Decode Analysis tools as standard
Power Analysis software as standard
Advanced anomaly detection
Super-fast waveform update feature
History mode – Waveform update
WaveScan – Search and find feature
The WaveSurfer 3000z promotional mixed signal oscilloscopes are powerful and versatile with multi-instruments and measurement capabilities to ensure they're tailored for any need. With an easy to use 10.1-inch touchscreen built for simplicity and an effortless interface, you'll find this mixed signal oscilloscope a breeze to use. Furthermore, the WaveSurfer includes future-proofing with upgradable bandwidth and upgradable software and hardware in the field, to make your user experience that much easier. Oscilloscopes are tools used by engineers, designers, and technicians to analyse and measure complicated electronic signals. Oscilloscopes enable you to develop and verify high-performance systems and electronic designs. They are an indispensable tool in any workshop, laboratory or test station.
Applications
Educational laboratories, Electronics troubleshooting and measurement, Embedded electronics, Mixed-signal and video designing, Automotive electronics, Data analysis
Important information to be included in the product module
