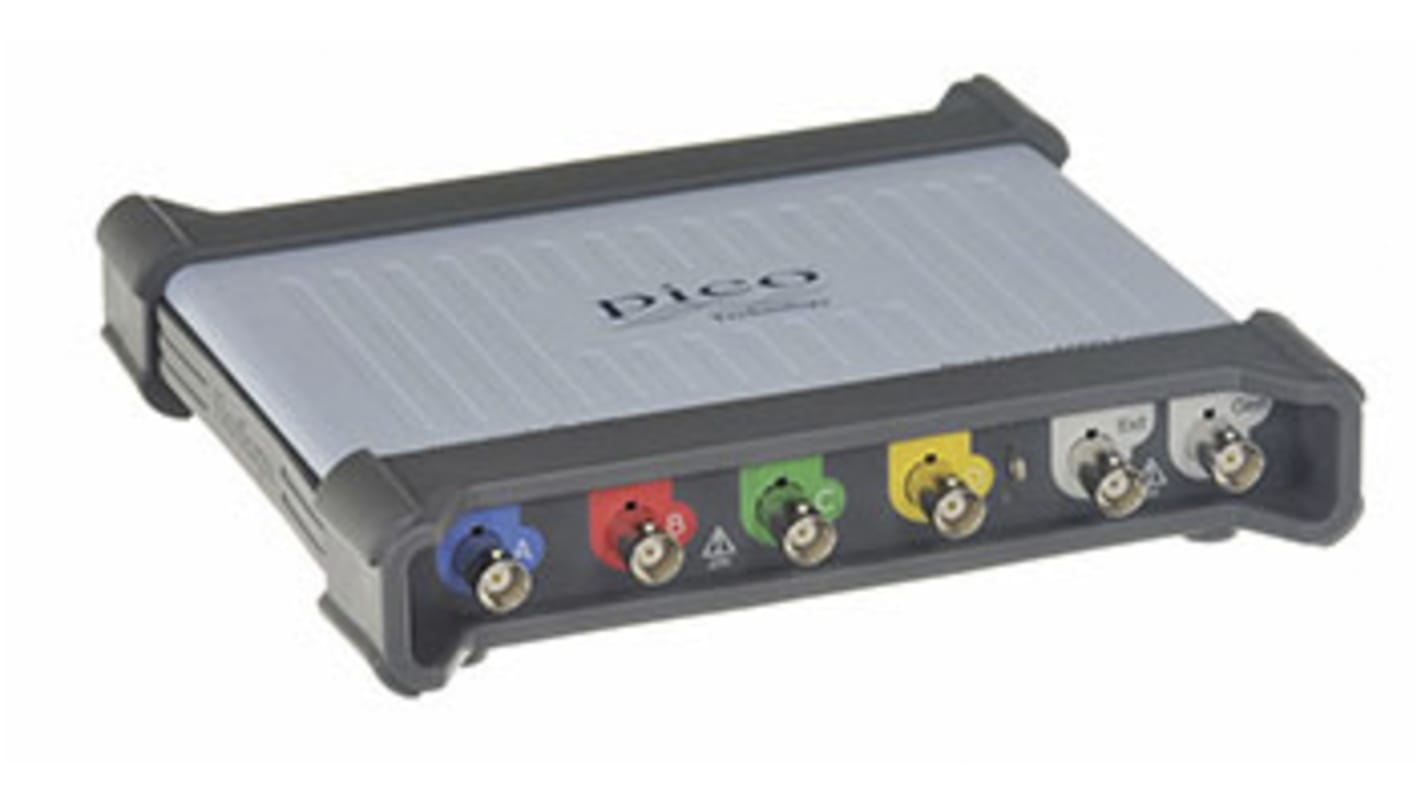

Pico Technology PicoScope 5000D Series, 60 MHz PC Based Oscilloscope 2-Channel - RSCAL

Voir l’ensemble des Oscilloscopes

Sous-total (1 unité)*

1 411,15 €

(TVA exclue)

1 707,49 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 2 unité(s) prête(s) à être expédiée(s)
  • Plus 4 unité(s) expédiée(s) à partir du 18 mars 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +1 411,15 €

*Prix donné à titre indicatif

N° de stock RS:
179-4698
Référence fabricant:
PicoScope 5242D
Fabricant:
Pico Technology
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Pico Technology

Product Type

Oscilloscope

Bandwidth

60MHz

Number of Channels

2

Oscilloscope Type

PC Based

Interface Type

CAN, LIN, RS232, RS422, RS485, SPI, UART, USB

Series

PicoScope 5000D

Standards/Approvals

No

Height

170mm

Width

190 mm

Vertical Resolution

16 bit

Minimum Vertical Sensitivity

2mV/div

Calibrated

RSCAL

Minimum Time Base

1ns/div

Maximum Vertical Sensitivity

4V/div

Maximum Time Base

5000s/div

Power Source

USB

Rise Time

5.8ns

Pays d'origine :
GB

PicoScope Benchtop Oscilloscope


The PicoScope 5000D series 60MHz Benchtop oscilloscope has all the features that we can find in the highly advanced bench-type oscilloscopes. This oscilloscope is a powerful and versatile device with high speed, resolution and sampling rates. It has multi-instrument and measurement capabilities, therefore proves to be an excellent tool. It has breakthrough ADC technology switches from 8 to 16 bits in the same oscilloscope. It has two different independent channels.

Features and Benefits


• Intuitive user interface

• Flexible hardware resolution of 8 to 16 bits

• High sampling rate of 1GS/s at 8 bit resolution

• High sampling rate of 500MS/s at 12 bit resolution

• High sampling rate of 62.5MS/s at 16 bit resolution

• Large buffer memory 512MS

• 100,000wfms/s

• 200MS/s arbitrary waveform generator

• Serial decoding and mask testing

• Compatible with different operating systems like Windows, Linux and Mac

Applications


• Educational laboratories

• Electronics troubleshooting and measurement

• Embedded electronics

• Mixed signal and video designing

• Automotive electronics
