Rohde & Schwarz RTC1002 RTC1000 Series, 70MHz Bench Oscilloscope, 2 Analogue Channels, 16 Digital Channels
- N° de stock RS:
- 174-2813
- Numéro d'article Distrelec:
- 301-01-692
- Référence fabricant:
- RTC1K-72M
- Fabricant:
- Rohde & Schwarz
Sous-total (1 unité)*
1 650,00 €
(TVA exclue)
1 996,50 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 2 unité(s) prête(s) à être expédiée(s)
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 1 650,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 174-2813
- Numéro d'article Distrelec:
- 301-01-692
- Référence fabricant:
- RTC1K-72M
- Fabricant:
- Rohde & Schwarz
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Rohde & Schwarz | |
| Bandwidth | 70MHz | |
| Number of Analogue Channels | 2 | |
| Number of Digital Channels | 16 | |
| Oscilloscope Type | Bench | |
| Oscilloscope Form | Mixed Signal | |
| Interface | CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB | |
| Sample Rate Random | 1 Gsps, 2 Gsps | |
| Screen Size | 6.5in | |
| Series | RTC1000 | |
| Digital/Analogue | Digital | |
| Rise Time | 5ns | |
| Minimum Time Base | 1ns/div | |
| Maximum Time Base | 100s/div | |
| Vertical Resolution | 8 bit, 16 bit | |
| Dimensions | 285 x 140 x 175mm | |
| Plug Type | Type A - North American/Japanese 2-blade, Type B - North American 3-pin | |
| Display Type | VGA Colour | |
| Maximum Vertical Sensitivity | 10V/div | |
| Power Source | Mains | |
| Weight | 1.7kg | |
| Minimum Vertical Sensitivity | 1mV/div | |
| Sélectionner tout | ||
|---|---|---|
Marque Rohde & Schwarz | ||
Bandwidth 70MHz | ||
Number of Analogue Channels 2 | ||
Number of Digital Channels 16 | ||
Oscilloscope Type Bench | ||
Oscilloscope Form Mixed Signal | ||
Interface CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB | ||
Sample Rate Random 1 Gsps, 2 Gsps | ||
Screen Size 6.5in | ||
Series RTC1000 | ||
Digital/Analogue Digital | ||
Rise Time 5ns | ||
Minimum Time Base 1ns/div | ||
Maximum Time Base 100s/div | ||
Vertical Resolution 8 bit, 16 bit | ||
Dimensions 285 x 140 x 175mm | ||
Plug Type Type A - North American/Japanese 2-blade, Type B - North American 3-pin | ||
Display Type VGA Colour | ||
Maximum Vertical Sensitivity 10V/div | ||
Power Source Mains | ||
Weight 1.7kg | ||
Minimum Vertical Sensitivity 1mV/div | ||
- Pays d'origine :
- CZ

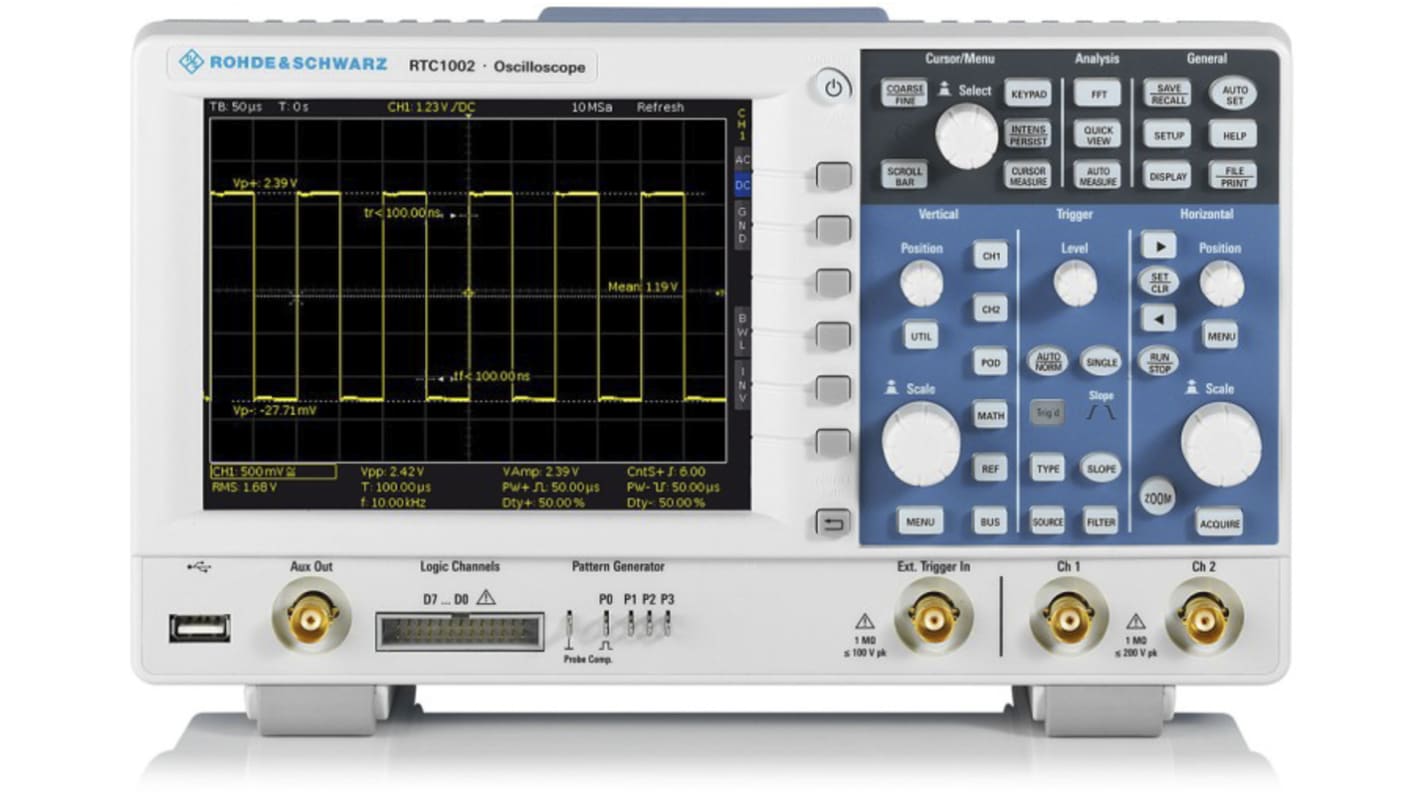

Rohde & Schwarz RTC1000 Series RTC1002 Oscilloscope
The Rohde & Schwarz RTC1000 digital oscilloscope is designed with high vertical sensitivity and can perform multiple functions. This allows a bandwidth of 70MHz, memory depth of 2Mpts and sampling rate of 2Gsa/s. This oscilloscope also has a function generator for different types of signals having frequencies up to 50KHz. It has two analogue channels and eight digital channels (MSO) that are optional and adaptable. It allows you to perform voltage measurements on analogue channels with two values simultaneously. This oscilloscope benefits you with different functions such as digital logic, protocol and frequency analysis on a single instrument.
Features and Benefits
• Allows multiple functions with software licence such as bandwidth upgrade and serial bus analysis
• Fanless design for better performance
• Low noise due to analogue to digital converters
• Separate RTC-B1 logic probe suitable for all the RTC1000 oscilloscopes
• Logical analyser
• Fanless design for better performance
• Low noise due to analogue to digital converters
• Separate RTC-B1 logic probe suitable for all the RTC1000 oscilloscopes
• Logical analyser
Applications
• Educational institutes
• Used by service technicians
• R&D troubleshooting and testing
• Used by service technicians
• R&D troubleshooting and testing
