RS PRO RSDS1000 Series, 100 MHz Portable Oscilloscope, 2 Channels - UKAS

N° de stock RS:: 123-6629
Fabricant:: RS PRO

RS PRO RSDS1000 Series, 100 MHz Portable Oscilloscope, 2 Channels - UKAS

Sous-total (1 unité)*

795,87 €

(TVA exclue)

963,00 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

En stock

Plus 50 unité(s) expédiée(s) à partir du 08 juin 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	795,87 €

*Prix donné à titre indicatif

N° de stock RS:: 123-6629
Fabricant:: RS PRO

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	RS PRO
	Product Type	Oscilloscope
	Bandwidth	100MHz
	Number of Channels	2
	Oscilloscope Type	Portable
	Oscilloscope Form	Digital Storage
	Memory Depth	2Mpts
	Interface Type	RS232, USB
	Screen Size	7 in
	Series	RSDS1000
	Width	135.6mm
	Standards/Approvals	No
	Depth	323.1mm
	Height	157mm
	Minimum Time Base	2.5ns/div
	Calibrated	UKAS
	Maximum Time Base	50s/div
	Rise Time	3.5ns
	Maximum Vertical Sensitivity	10V/div
	Minimum Vertical Sensitivity	2mV/div
	Plug Type	USB
	Display Type	TFT LCD
	Safety Category Level	CAT I, CAT II
	Power Source	Mains
	Vertical Resolution	8 bit

	Sélectionner tout
	Marque RS PRO
	Product Type Oscilloscope
	Bandwidth 100MHz
	Number of Channels 2
	Oscilloscope Type Portable
	Oscilloscope Form Digital Storage
	Memory Depth 2Mpts
	Interface Type RS232, USB
	Screen Size 7 in
	Series RSDS1000
	Width 135.6mm
	Standards/Approvals No
	Depth 323.1mm
	Height 157mm
	Minimum Time Base 2.5ns/div
	Calibrated UKAS
	Maximum Time Base 50s/div
	Rise Time 3.5ns
	Maximum Vertical Sensitivity 10V/div
	Minimum Vertical Sensitivity 2mV/div
	Plug Type USB
	Display Type TFT LCD
	Safety Category Level CAT I, CAT II
	Power Source Mains
	Vertical Resolution 8 bit

Pays d'origine :: CN

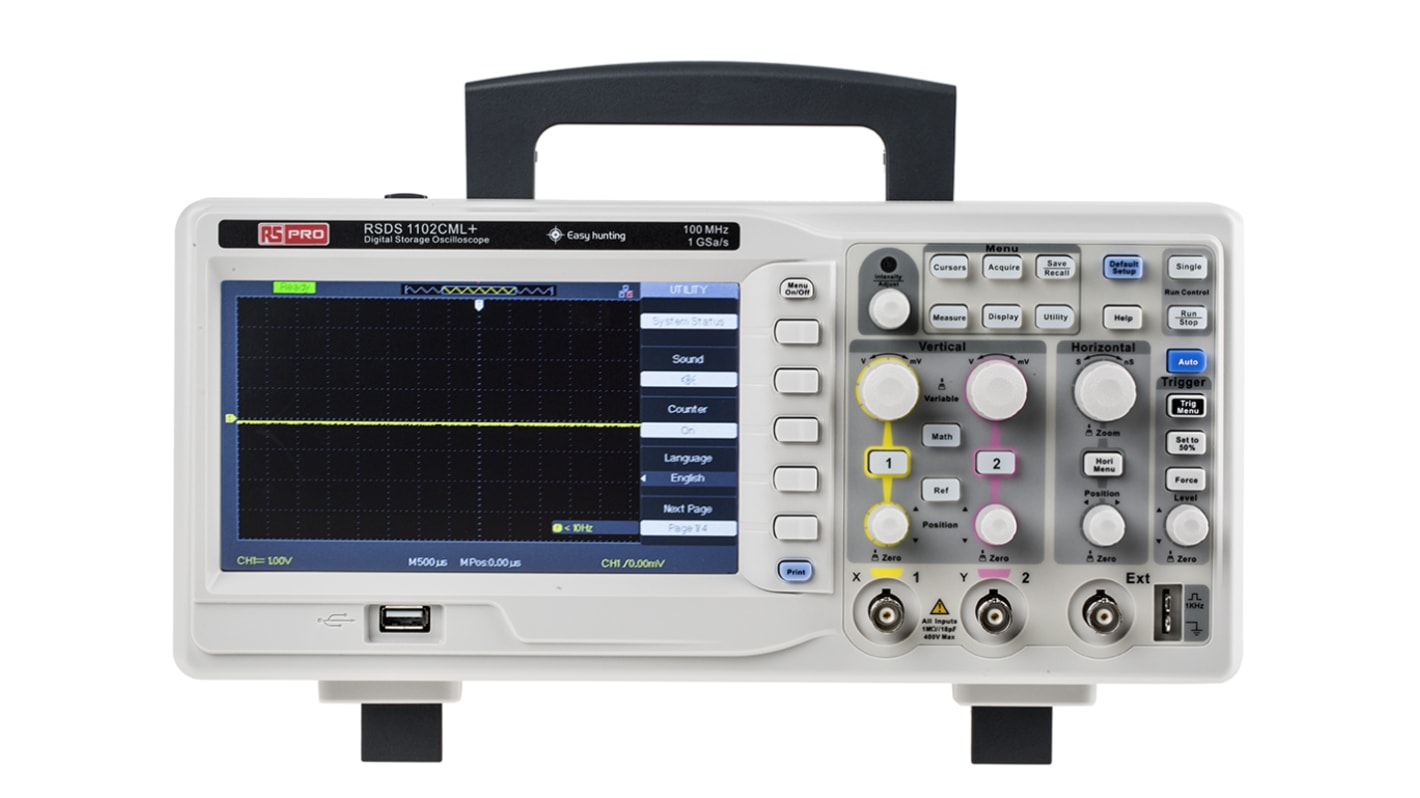

RS PRO RSDS1000CML+/DL+ Series Digital Storage Oscilloscopes (DSO)

RS PRO RSDS1000CML+/DL+ Series is a dual-channel universal digital oscilloscope available in 50 MHz, 70 MHz, 100 MHz and 150 MHz bandwidth models.

Options available:

1236435 - 50MHz,2 channels

1236436 - 70MHz,2 channels

1236437 - 100MHz,2 channels

1236438 - 150MHz,2 channels

All models have a 7 inch (177.8 mm) TFT LCD (800 x 480) screen which provides the space for better seeing and analysing waveform details. The RSDS1000CML+ models include a 2 Mpts memory depth which helps to ensure accurate waveform resolution and to capture longer signal lengths.

Along with a 1 GSa/s sampling rate, the SDS1000CML+ supports 32 parameters and common mathematical operations to speed up complex and/or repetitive measurements. The RSDS1000DL+ model has 32 Kpts memory depth and 500 MSa/s sampling rate.

Features and Benefits

Choice of 50 MHz,150 MHz, 100 MHz and 70 MHz bandwidth models

Real-time sampling rate up to 1 GSa/s (depending on choice of model), equivalent-time sampling rate up to 50 GSa/s

Memory depth to maximum 2 Mpts (depending on choice of model)

Trigger types Edge, Pulse, Video, Slope, Alternate

Waveform math functions+, -, *, /, FFT

6 digit frequency counter

Supports multi-language display and embedded online help

Screensaver from 1 minute to 5 hours

Digital filter and waveform recorder function

Shortcut storage function key

7 inch TFT LCD display with 800 x 480 resolution

Multiple interfaces USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail

Dimensions 323.1 x 135.6 x 157 mm

Weight 2.5 kg

Oscilloscopes Accessories

123-6471 - black soft carrying case

Typical Applications

Digital oscilloscopes are a complex and multi-functional electronic laboratory instrument used to capture, process, display and analyse the waveform and bandwidth of electronic signals. DSO versions have a memory to store waveforms and display them over a period of time. Oscilloscopes are used in a wide range of industries e.g.

Educational laboratories

Electronics troubleshooting and measurement

Embedded electronics

Mixed-signal and video designing

Automotive electronics

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS Pro

Supplied with

Passive probe 1:1/10:1 (x2), USB cable, quick start guide, quality certificate, power cord, CD (includes user manual and EasyScopeX software)
