RS PRO IDS-1000B Series, 50 MHz Bench Oscilloscope, RSCAL

N° de stock RS:: 123-3727
Fabricant:: RS PRO

RS PRO IDS-1000B Series, 50 MHz Bench Oscilloscope, RSCAL

Actuellement indisponible

Désolés, nous ne savons pas quand ce produit sera réapprovisionné.

N° de stock RS:: 123-3727
Fabricant:: RS PRO

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	RS PRO
	Product Type	Oscilloscope
	Bandwidth	50MHz
	Oscilloscope Type	Bench
	Oscilloscope Form	Digital Storage
	Memory Depth	10Mpts
	Interface Type	USB
	Screen Size	7 in
	Series	IDS-1000B
	Width	127.3mm
	Standards/Approvals	EN 61010-1:2010
	Depth	208mm
	Height	384mm
	Vertical Resolution	8 bit
	Plug Type	UK, EU
	Minimum Vertical Sensitivity	1mV/div
	Safety Category Voltage	300Vrms
	Maximum Vertical Sensitivity	10V/div
	Power Source	Mains
	Maximum Time Base	100s/div
	Calibrated	RSCAL
	Minimum Time Base	5ns/div
	Display Type	TFT LCD
	Safety Category Level	CAT I
	Rise Time	7ns

	Sélectionner tout
	Marque RS PRO
	Product Type Oscilloscope
	Bandwidth 50MHz
	Oscilloscope Type Bench
	Oscilloscope Form Digital Storage
	Memory Depth 10Mpts
	Interface Type USB
	Screen Size 7 in
	Series IDS-1000B
	Width 127.3mm
	Standards/Approvals EN 61010-1:2010
	Depth 208mm
	Height 384mm
	Vertical Resolution 8 bit
	Plug Type UK, EU
	Minimum Vertical Sensitivity 1mV/div
	Safety Category Voltage 300Vrms
	Maximum Vertical Sensitivity 10V/div
	Power Source Mains
	Maximum Time Base 100s/div
	Calibrated RSCAL
	Minimum Time Base 5ns/div
	Display Type TFT LCD
	Safety Category Level CAT I
	Rise Time 7ns

Manufacturer Information

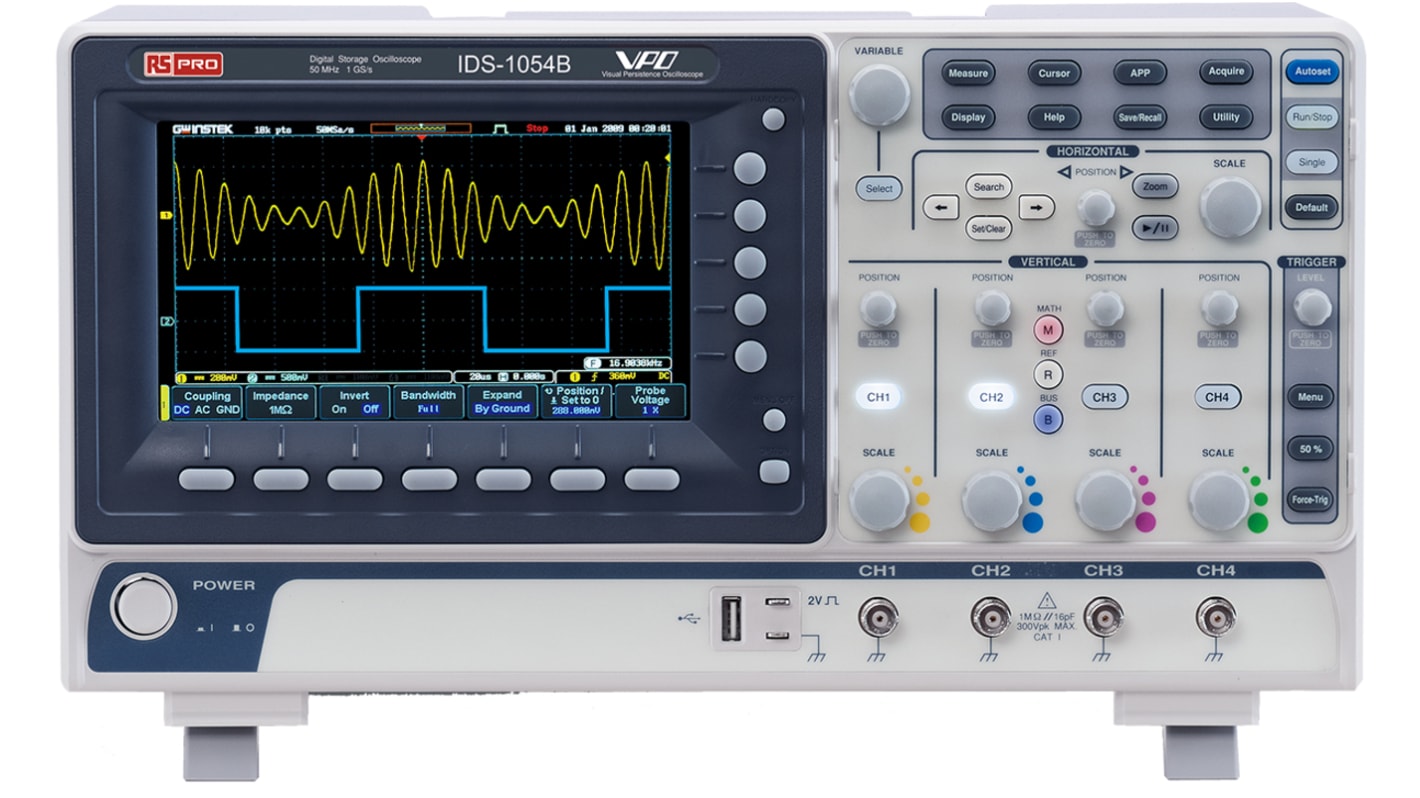

RS PRO IDS-1000B Series Visual Persistence Digital Oscilloscope

RS PRO IDS-1000B Series Digital Storage Oscilloscopes (DSO) are general purpose instruments which include exceptional features for a great-value price. They are equipped with Visual Persistence Oscilloscope (VPO) technology. This uses a high-density IC for hardware acceleration to transfer all the acquired data into the displayed waveform image. The 256 colour gradient display function shows waveform details in gradients while measuring fast-changing analog signals.

The memory depth enables clear differentiation of detail in signals under observation. Clear spectrum quantities obtained under the FFT mode are comparable with those obtained by use of a spectrum analyser. The zero key function allows users to restore the previous waveform location and settings. Trigger types include Edge, Pulse, Width, Video, ALT, Runt, Rise & Fall, Event-Delay, Time-Delay, Timeout, Logic, RS232, 12C, SPI. All this comes in a compact (380 x 208 x 127.3 mm) casing designed for portability and comfort-in-use.

Options available:

1233540 - 50 MHz, 4 Channels

1233541 - 70 MHz, 2 Channels

1233542 - 100 MHz, 2 Channels

1233543 - 100 MHz, 4 Channels

1233544 - 70 MHz, 4 Channels

Features and Benefits

1 GSa/s maximum sampling rate

10 M maximum memory depth for each channel

7 inch 800 x 480 WVGA LCD display

256 colour gradient display function to strengthen waveform performance

1 Mpts FFT frequency domain signal display

Zero key function for horizontal time, vertical voltage and triggering

Compact and innovative design Waveform update rate is 50,000wfms/s

;

Zoom In/Play and Pause function

X-Y Mode Display

Go/NoGo Function

Digital Voltage Meter Function

Data Log Function

Typical Applications

Digital oscilloscopes are a complex and multi-functional electronic laboratory instrument used to capture, process, display and analyse the waveform and bandwidth of electronic signals. DSO versions have a memory to store waveforms and display them over a period of time. Oscilloscopes are used in a wide range of industries e.g.

Laboratories

Educational establishments

Product testing and Quality Assurance

Service operation and post-sales support

Product development and debugging

FAQs

Why choose RS PRO?

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.

RS Pro

Note

Software Download

Supplied with

Passive probe, power cord, user manual, OpenWave software (free download), USB & LabView drivers (free downloads)
