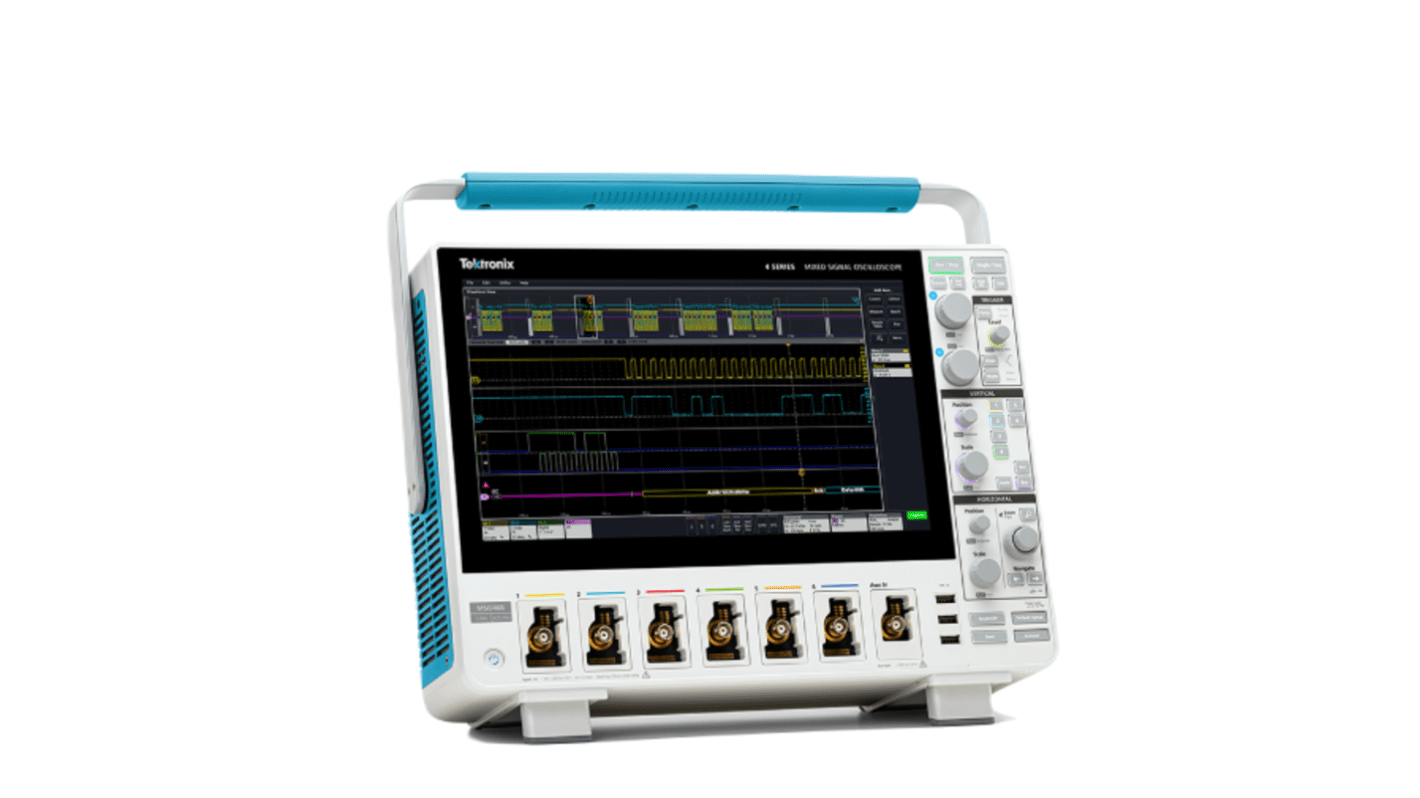

Tektronix MSO46B 4-BW Series, 500 MHz Mixed Signal Oscilloscope, 6 Channels - RSCAL

Voir l’ensemble des Oscilloscopes
Actuellement indisponible
Désolés, nous ne savons pas quand ce produit sera réapprovisionné.
N° de stock RS:
328-127
Référence fabricant:
MSO46B 4-BW 500 MSO46BR3
Fabricant:
Tektronix
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Tektronix

Product Type

Oscilloscope

Bandwidth

500MHz

Number of Channels

6

Oscilloscope Type

Mixed Signal

Memory Depth

62.5Mpts

Screen Size

338 mm

Series

MSO46B 4-BW

Depth

155mm

Height

11.299in

Width

405 mm

Standards/Approvals

No

Waveform Refresh Rate

500000wfms/s

Calibrated

RSCAL

Minimum Time Base

200ps/div

Maximum Time Base

1000s/div

Maximum Vertical Sensitivity

10V/div

Pays d'origine :
CN
The Tektronix 4 Series Mixed Signal Oscilloscope sets a new standard for performance, analysis capabilities, and overall user experience in bench oscilloscopes. It is Ideal for debugging and validating embedded systems and power converters. The second generation of this instrument incorporates a new processing platform, more than doubling its responsiveness and significantly accelerating measurements and data transfers with full support for remote operation and control. Its high resolution 12 bit sampling ensures precise measurements on a higher contrast 13.3 inch HD display.

6 FlexChannel inputs

Waveform capture rate more than 500000 waveforms/s

31.25 Mpoints standard Record length

Real time 6.25 GS/s sample rate

Synchronized and multi channel spectrum analysis
