Keysight Technologies DP003xA Series DP0031A Oscilloscope Probe, Active Type, 200 MHz, 25:1, BNC Connector
- N° de stock RS:
- 248-545
- Référence fabricant:
- DP0031A
- Fabricant:
- Keysight Technologies
Sous-total (1 unité)*
2 632,00 €
(TVA exclue)
3 184,72 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 2 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 2 632,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 248-545
- Référence fabricant:
- DP0031A
- Fabricant:
- Keysight Technologies
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Keysight Technologies | |
| Product Type | Oscilloscope Probe | |
| Probe Type | Active | |
| Attenuation | 25:1 | |
| Bandwidth | 200MHz | |
| Maximum Common Mode Input Voltage | 750V | |
| Connector Type | BNC | |
| Model Number | DP0031A | |
| Safety Category Level | CAT III, CAT II | |
| Safety Category Voltage | 600V | |
| Series | DP003xA | |
| Standards/Approvals | RoHS | |
| Sélectionner tout | ||
|---|---|---|
Marque Keysight Technologies | ||
Product Type Oscilloscope Probe | ||
Probe Type Active | ||
Attenuation 25:1 | ||
Bandwidth 200MHz | ||
Maximum Common Mode Input Voltage 750V | ||
Connector Type BNC | ||
Model Number DP0031A | ||
Safety Category Level CAT III, CAT II | ||
Safety Category Voltage 600V | ||
Series DP003xA | ||
Standards/Approvals RoHS | ||

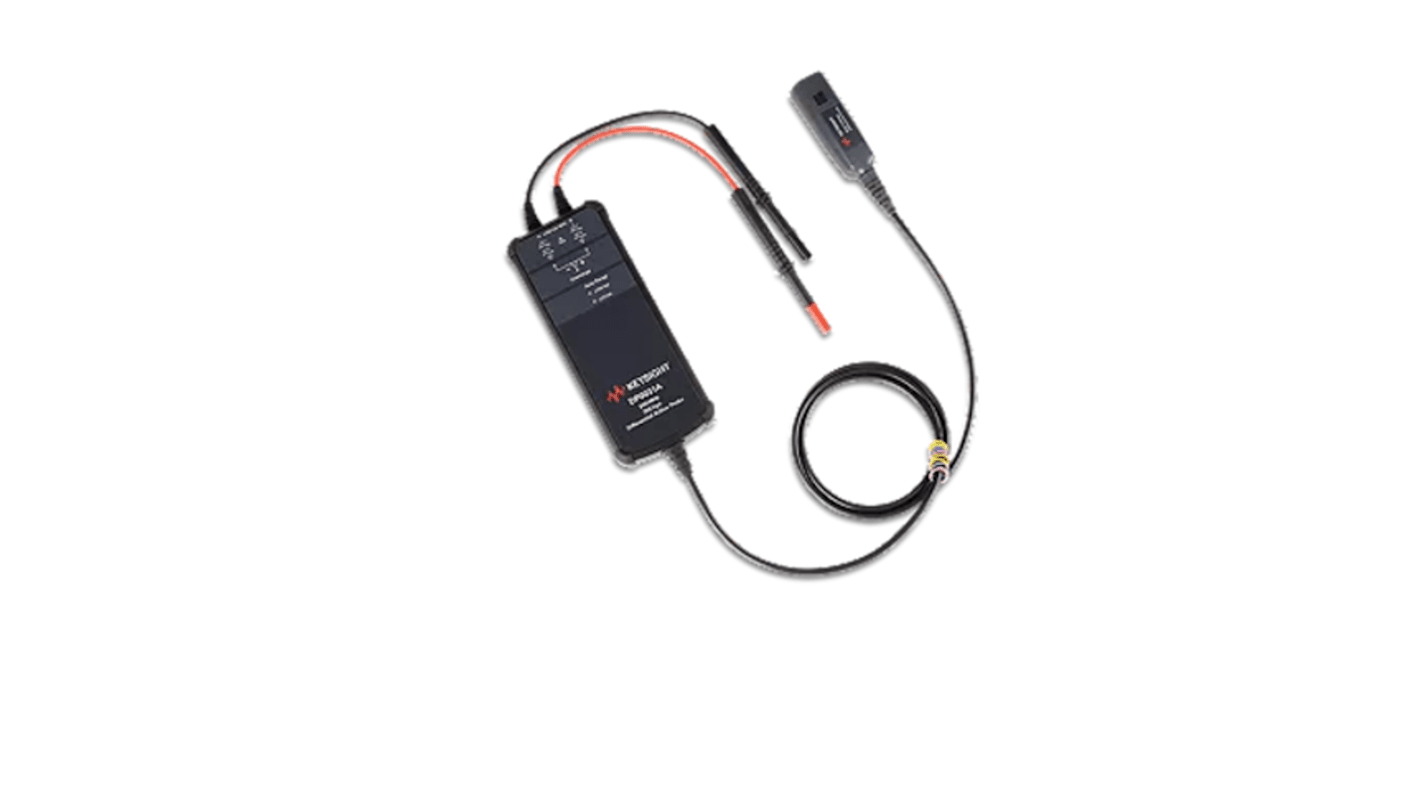

The Keysight Technologies High-Voltage Differential Probe is a high-performance probe designed for accurately measuring differential voltage signals up to 750 V with a bandwidth of 200 MHz. It is ideal for testing high-voltage, high-speed signals in applications such as power electronics, automotive systems, industrial equipment, and research and development. The DP0031A ensures safe, reliable measurements of floating, high-voltage signals, providing enhanced isolation between the measurement device and the DUT (Device Under Test).
200 MHz bandwidth
Attenuation ratios 250
differential input impedance 5 MΩ || 2pF
DC common mode rejection
UL safety certified
AutoProbe interface
