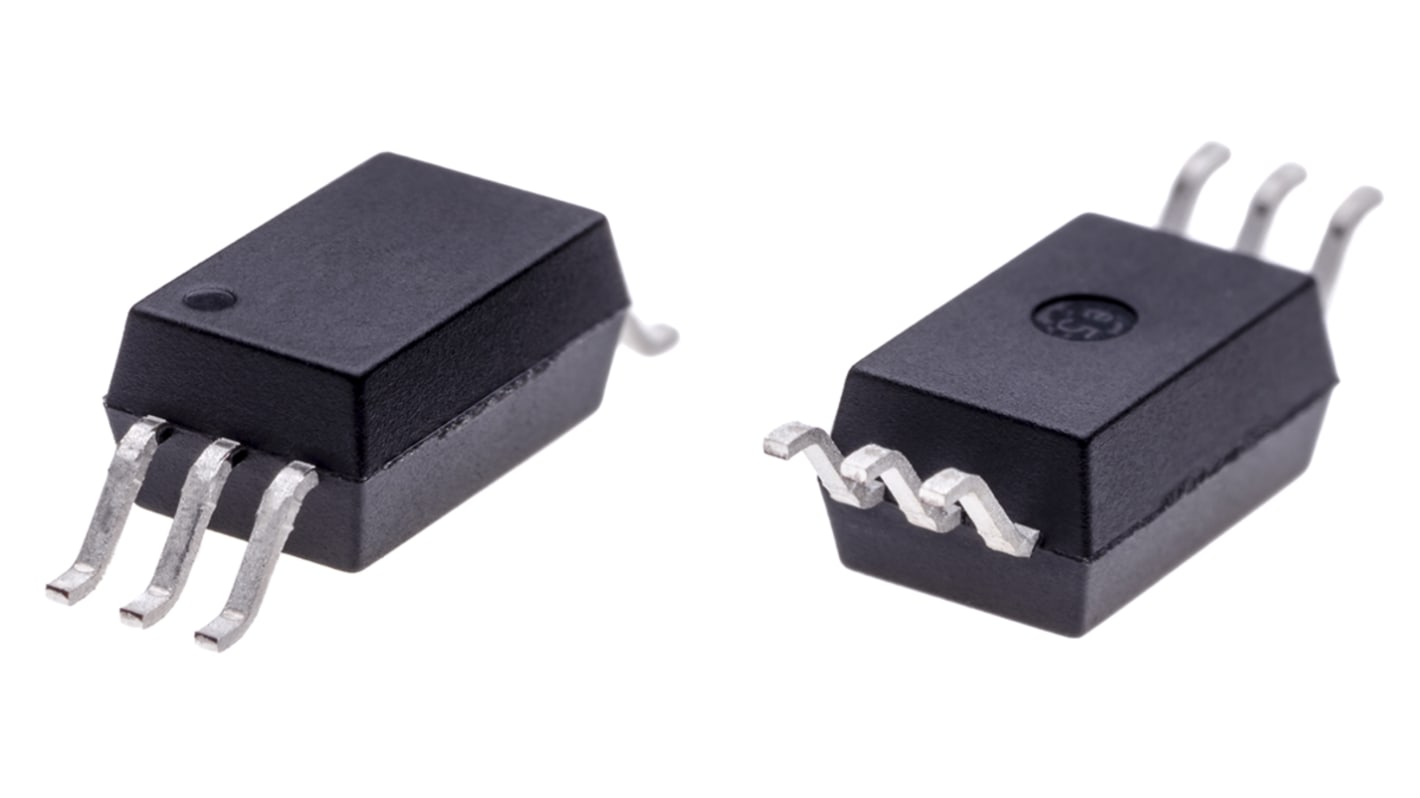

Isocom DC Input 2-Channel Optocoupler, Surface, 6-Pin SO
- N° de stock RS:
- 161-1177P
- Référence fabricant:
- IS314W
- Fabricant:
- Isocom
Offre groupée disponible
Consulter les options de prix de grosSous-total 50 unités (conditionné en bande continue)*
46,20 €
(TVA exclue)
55,90 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 09 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 50 - 120 | 0,924 € |
| 125 - 245 | 0,83 € |
| 250 - 495 | 0,74 € |
| 500 + | 0,632 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 161-1177P
- Référence fabricant:
- IS314W
- Fabricant:
- Isocom
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Isocom | |
| Mount Type | Surface | |
| Product Type | Optocoupler | |
| Maximum Forward Voltage | 1.8V | |
| Packaging | Tape & Reel | |
| Number of Channels | 2 | |
| Number of Pins | 6 | |
| Package Type | SO | |
| Input Current Type | DC | |
| Typical Rise Time | 35ns | |
| Maximum Input Current | 1A | |
| Isolation Voltage | 5000Vrms | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Typical Fall Time | 35ns | |
| Standards/Approvals | Lead (Pb) Free, RoHS | |
| Series | IS | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Isocom | ||
Mount Type Surface | ||
Product Type Optocoupler | ||
Maximum Forward Voltage 1.8V | ||
Packaging Tape & Reel | ||
Number of Channels 2 | ||
Number of Pins 6 | ||
Package Type SO | ||
Input Current Type DC | ||
Typical Rise Time 35ns | ||
Maximum Input Current 1A | ||
Isolation Voltage 5000Vrms | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Typical Fall Time 35ns | ||
Standards/Approvals Lead (Pb) Free, RoHS | ||
Series IS | ||
Automotive Standard No | ||
- Pays d'origine :
- CN
The IS314W Photo coupler is ideally suited for driving power IGBTs and MOSFETs used in inverters of motor control and of power supply system. It contains an AlGaAs LED optically coupled to an integrated circuit with a power output stage. The device is in Stretched SO6 package.
1.0A Maximum Peak Output Current
0.8A Minimum Peak Output Current
Rail-to-Rail output voltage
20kV/μs Minimum Common Mode Rejection at VCM 1500V
Maximum Propagation Delay 200ns
Maximum Propagation Delay Difference 100ns
Wide Operating Voltage Range VCC 10 to 30 V
Maximum Supply Current ICC 3.0mA
Under Voltage Lock Out (UVLO) Protection with
Hysteresis
Guaranteed Performance over Temperature Range - 40°C to +105°C
MSL Level 1
APPLICATIONS:
IGBT/MOSFET Gate Drive
UPS
Inverters
Switching Power Supplies
