Megger DLRO10X Handheld Ohmmeter, 2000 Max, 100 nΩ, Low Resistance, RSCAL
- N° de stock RS:
- 910-8715
- Référence fabricant:
- 1006-600
- Fabricant:
- Megger
Sous-total (1 unité)*
5 192,00 €
(TVA exclue)
6 282,32 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 7 unité(s) prête(s) à être expédiée(s)
- Plus 1 unité(s) expédiée(s) à partir du 06 juillet 2026
- Plus 2 unité(s) expédiée(s) à partir du 09 juillet 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 5 192,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 910-8715
- Référence fabricant:
- 1006-600
- Fabricant:
- Megger
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Megger | |
| Maximum Resistance Measurement | 2000 | |
| Product Type | Ohmmeter | |
| Resistance Resolution | 100nΩ | |
| Measurement Type | Low Resistance | |
| Battery Life | 1000 | |
| Battery Type | Rechargeable Nickel-Metal Hydride | |
| Power Source | Battery, Mains | |
| Handheld | Yes | |
| Plug Type | Type F, 3-Pin (Global) | |
| Minimum Operating Temperature | 5°C | |
| Maximum Accuracy | 0.2 % | |
| Maximum Operating Temperature | 45°C | |
| Standards/Approvals | No | |
| Length | 220mm | |
| Width | 100mm | |
| Model Number | DLRO10X | |
| Height | 237mm | |
| Weight | 2.6kg | |
| Minimum Accuracy | -0.2 | |
| Calibrated | RSCAL | |
| Sélectionner tout | ||
|---|---|---|
Marque Megger | ||
Maximum Resistance Measurement 2000 | ||
Product Type Ohmmeter | ||
Resistance Resolution 100nΩ | ||
Measurement Type Low Resistance | ||
Battery Life 1000 | ||
Battery Type Rechargeable Nickel-Metal Hydride | ||
Power Source Battery, Mains | ||
Handheld Yes | ||
Plug Type Type F, 3-Pin (Global) | ||
Minimum Operating Temperature 5°C | ||
Maximum Accuracy 0.2 % | ||
Maximum Operating Temperature 45°C | ||
Standards/Approvals No | ||
Length 220mm | ||
Width 100mm | ||
Model Number DLRO10X | ||
Height 237mm | ||
Weight 2.6kg | ||
Minimum Accuracy -0.2 | ||
Calibrated RSCAL | ||
- Pays d'origine :
- GB

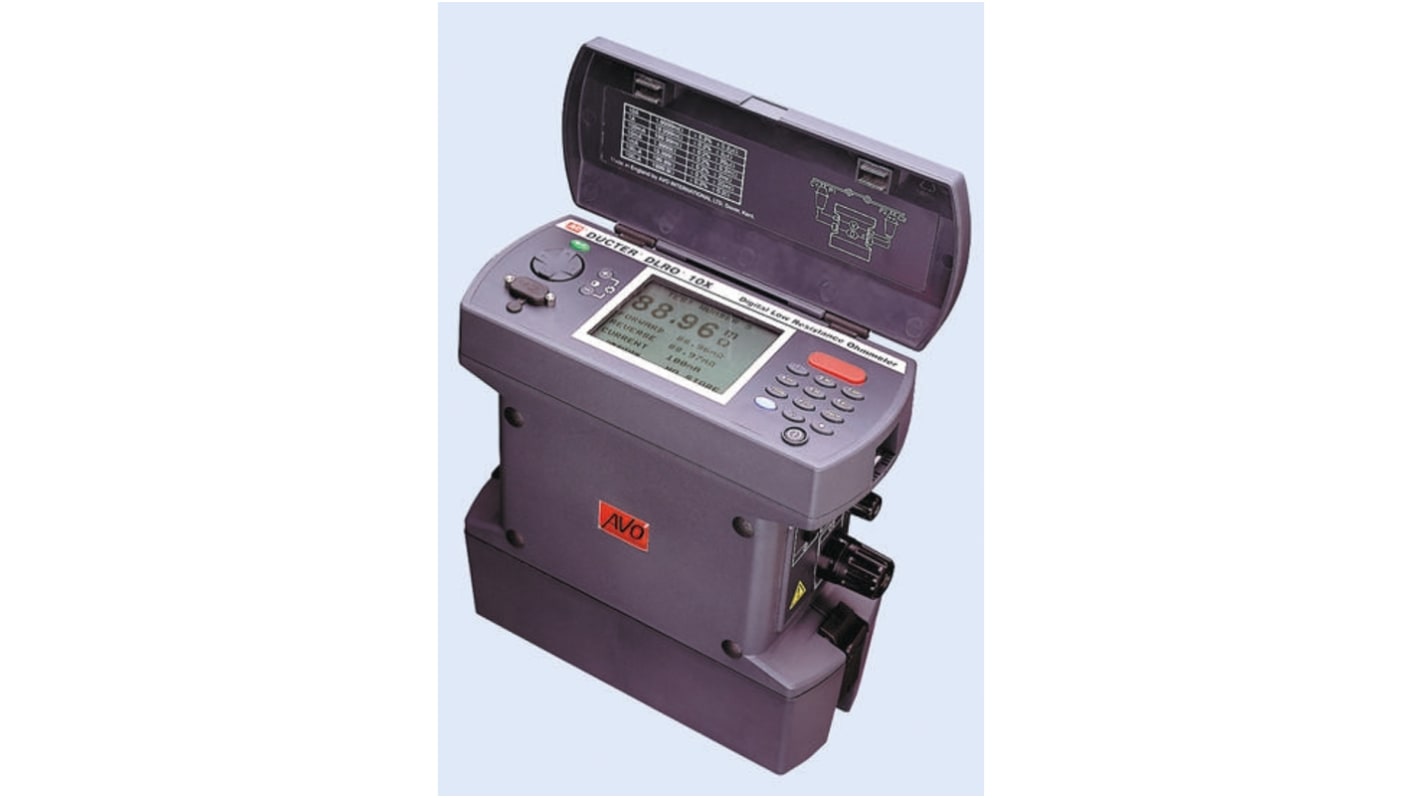

Megger Ohmmeter, 2.6kg Weight, 0.1μΩ to 2000Ω Resistance Measurement Range - DLRO Series - 1006-600
Measure electrical resistance smoothly with this digital ohmmeter from Megger. Simply wire it to your circuit and push the test button to take readings between 0.1μΩ and 2000Ω with an accuracy of +0.2% in continuous or inductive testing modes. The built-in memory lets you save up to 700 measurements, as well as memos with a maximum of 200 characters. A large colour display makes readings easy to see. Thanks to the unit's broad operating temperature range between -10°C and +50°C, it holds its own in harsh work environments.
Features & Benefits
• IP54 rating shows it's protected against limited amounts of dust and fully protected against water sprays
• Portable size of 237 (H) x 220 (W) x 100mm (D) makes it ideal for on-the-go testing
• RS-232 connectivity lets you transfer results to a PC
Applications
• Switch and contact breakers
• Aviation industry
• Welded joint inspection
Does this device come with test leads?
Yes. For versatility, this ohmmeter comes with two 1.2m leads that you can fit with terminations such as Kelvin clips and duplex test probes.
