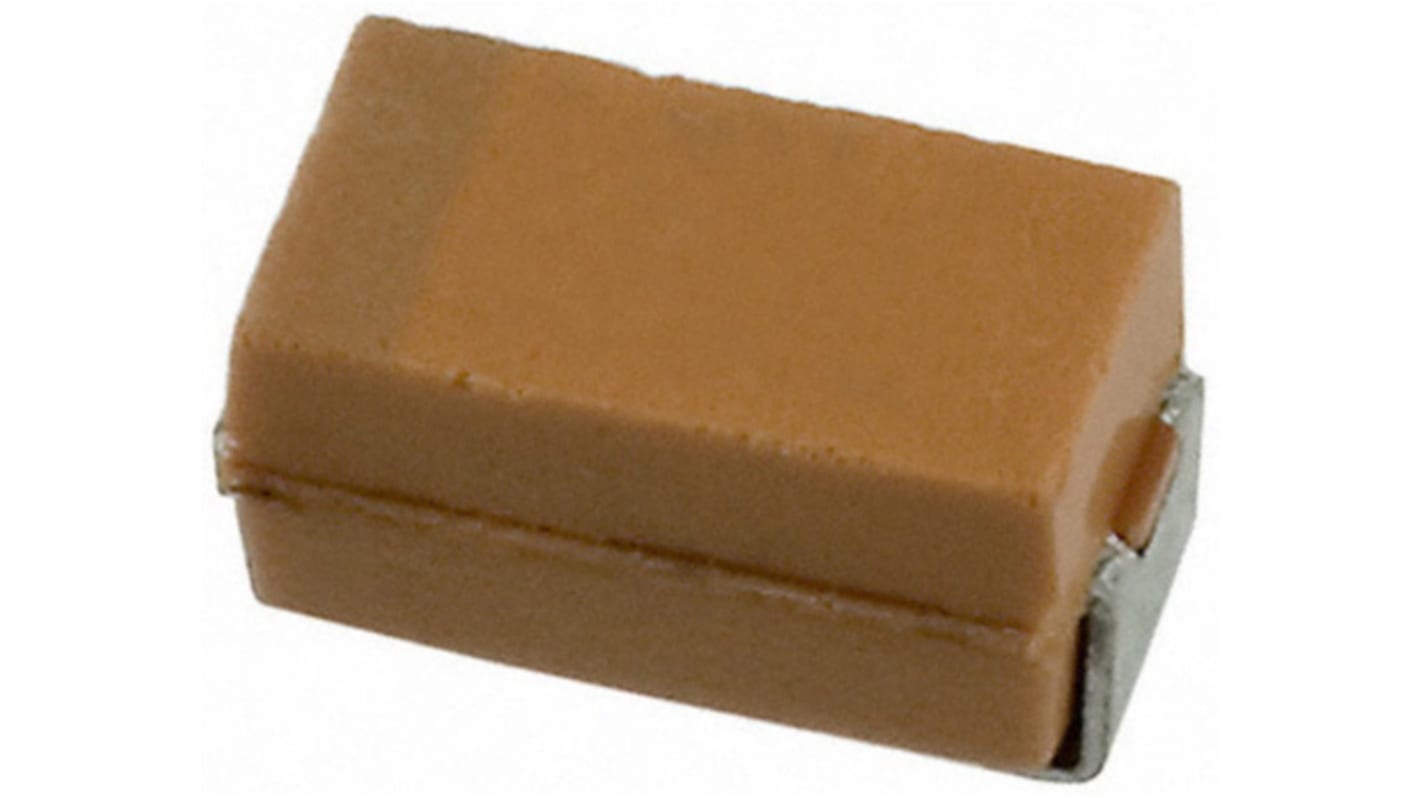

KYOCERA AVX 4.7μF Niobium Capacitor 6.3V dc ±20%, Surface Mount 3.2mm, NOJ

Voir la catégorie

Sous-total (1 sachet de 50 unités)*

9,00 €

(TVA exclue)

11,00 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 3 500 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
Le Sachet*
50 +0,18 €9,00 €

*Prix donné à titre indicatif

N° de stock RS:
144-1914
Référence fabricant:
NOJA475M006RWJ
Fabricant:
KYOCERA AVX
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

KYOCERA AVX

Series

NOJ

Capacitance

4.7µF

Tolerance

±20%

Voltage

6.3V dc

Package/Case

3216-18

Mounting Type

Surface Mount

Equivalent Series Resistance

3.2Ω

Dissipation Factor

6%

Leakage Current

1.1 μA

Dimensions

3.2 x 1.6 x 1.6mm

Lead Pitch

1.1mm

Depth

1.6mm

Height

1.6mm

Surge Voltage

13V

Tolerance Plus

+20%

Length

3.2mm

Maximum Operating Temperature

+105°C

Polarised

Polar

Tolerance Minus

-20%

Terminal Type

Surface Mount

Dielectric Material Family

Niobium

Minimum Operating Temperature

-55°C

Pays d'origine :
SV

AVX Niobium Oxide Capacitors


AVX oxicap capacitors feature niobium oxide as the main material for the anode electrode for general applications. Niobium oxide has much higher ignition energy (200 times) and much lower burning rate than pure metal materials such as Tantalum or Niobium. This feature means that OxiCap® multiylayer ceramic capacitors will not burn up to the category voltage. They are suitable for applications with rail voltages of up to 7 V.

Features


Non- burn safe technology
CV range: 2.2 to 1000 μF / 1.8 to 10 V
13 case sizes available
Reliability level: 0.5%/1000 HRS. At 85°C

Applications


In-cabin entertainment systems
Seat position modules
Airbag controls etc.


1206 Range


C0G (NP0) is the most popular formulation of the "temperature-compensating", EIA Class I ceramic materials
X7R formulations are called "temperature stable" ceramics and fall into EIA Class II materials
Y5V formulations are for general-purpose use in a limited temperature range.These characteristics make Y5V ideal for decoupling applications
