Phoenix Contact 2902853 Fibre Optic Converter 80 MHz 10/100 Base-TX
- N° de stock RS:
- 801-9204
- Référence fabricant:
- 2902853
- Fabricant:
- Phoenix Contact
Sous-total (1 unité)*
400,55 €
(TVA exclue)
484,67 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 3 unité(s) prête(s) à être expédiée(s)
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 400,55 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 801-9204
- Référence fabricant:
- 2902853
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Product Type | Fibre Optic Converter | |
| Frequency | 80MHz | |
| Interface Type | 10/100 Base-TX | |
| Maximum Operating Temperature | 65°C | |
| Minimum Supply Voltage | 18V | |
| Maximum Supply Voltage | 30V | |
| Minimum Operating Temperature | -40°C | |
| Height | 22.5mm | |
| Length | 114.5mm | |
| Series | 2902853 | |
| Width | 99 mm | |
| Standards/Approvals | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Product Type Fibre Optic Converter | ||
Frequency 80MHz | ||
Interface Type 10/100 Base-TX | ||
Maximum Operating Temperature 65°C | ||
Minimum Supply Voltage 18V | ||
Maximum Supply Voltage 30V | ||
Minimum Operating Temperature -40°C | ||
Height 22.5mm | ||
Length 114.5mm | ||
Series 2902853 | ||
Width 99 mm | ||
Standards/Approvals No | ||
- Pays d'origine :
- DE

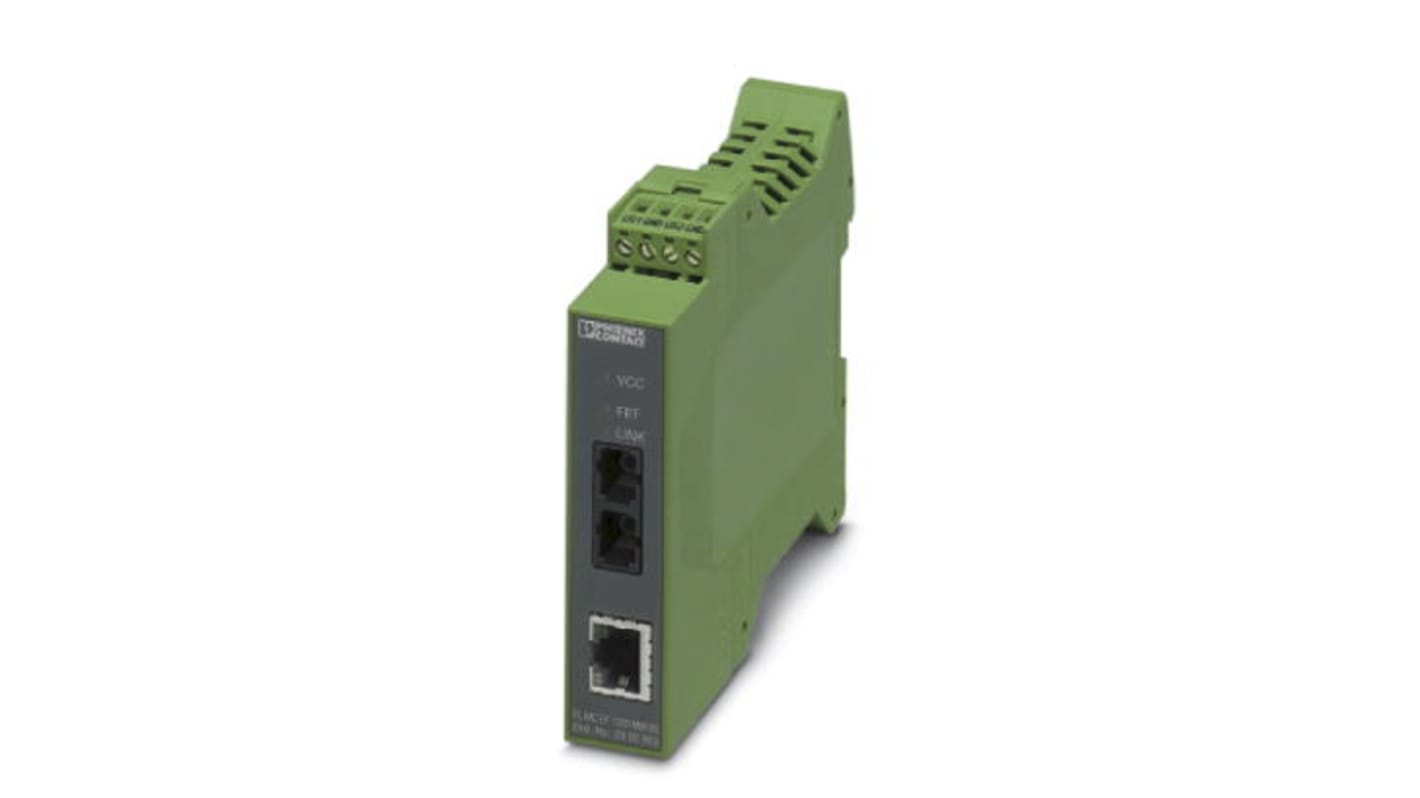

Phoenix Contact Fibre-Optic Converter, 18 to 30V DC Supply Voltage, EMC Class A - FL MC EF 1300 MM SC - 2902853
Expand the functionality of your existing networking module or router with this fibre-optic converter from Phoenix Contact. It converts Ethernet signals into multimode fibre-optic ones, so you get greater efficiency, fidelity and reach. As it supports a transmission range of up to 10km, this is an ideal choice when you want to extend your network over considerable distances.
The unit is made of PA66, which withstands impacts to deliver lasting use in demanding industrial settings. This material is also fire resistant, so it won’t contribute to the spread of flames in case of a fire. An operating temperature range of -40°C to +65°C makes this converter suitable for use in harsh environments.
Features & Benefits
• IP20-rated, so finger-safe and protected against objects larger than 12mm
• Auto-negotiation and auto MDI(X) switch-over help ensure optimal functioning without user input
• Simple DIN-rail mounting for easy installation with no tools needed
• EMC Class A-rated for safe use in commercial, industrial and business environments
• LEDs clearly indicate the device's activity and link status
