RS PRO RS-735 Unmanaged 5 Port Ethernet Switch Power Over Ethernet

Voir la catégorie

Sous-total (1 unité)*

227,08 €

(TVA exclue)

274,77 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 29 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +227,08 €

*Prix donné à titre indicatif

N° de stock RS:
180-404
Fabricant:
RS PRO
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

RS PRO

Product Type

Ethernet Switch

Number of Ports

5

Switch Type

Unmanaged

Power Over Ethernet

Yes

Network Speed

1000Mbps

Number of RJ-45 Ports

5

Model Number

RS-735

Width

28 mm

Standards/Approvals

CE, WEEE, UL62368-1, METL, UKCA, RoHS, REACH

Depth

115mm

Height

99mm

Pays d'origine :
GB

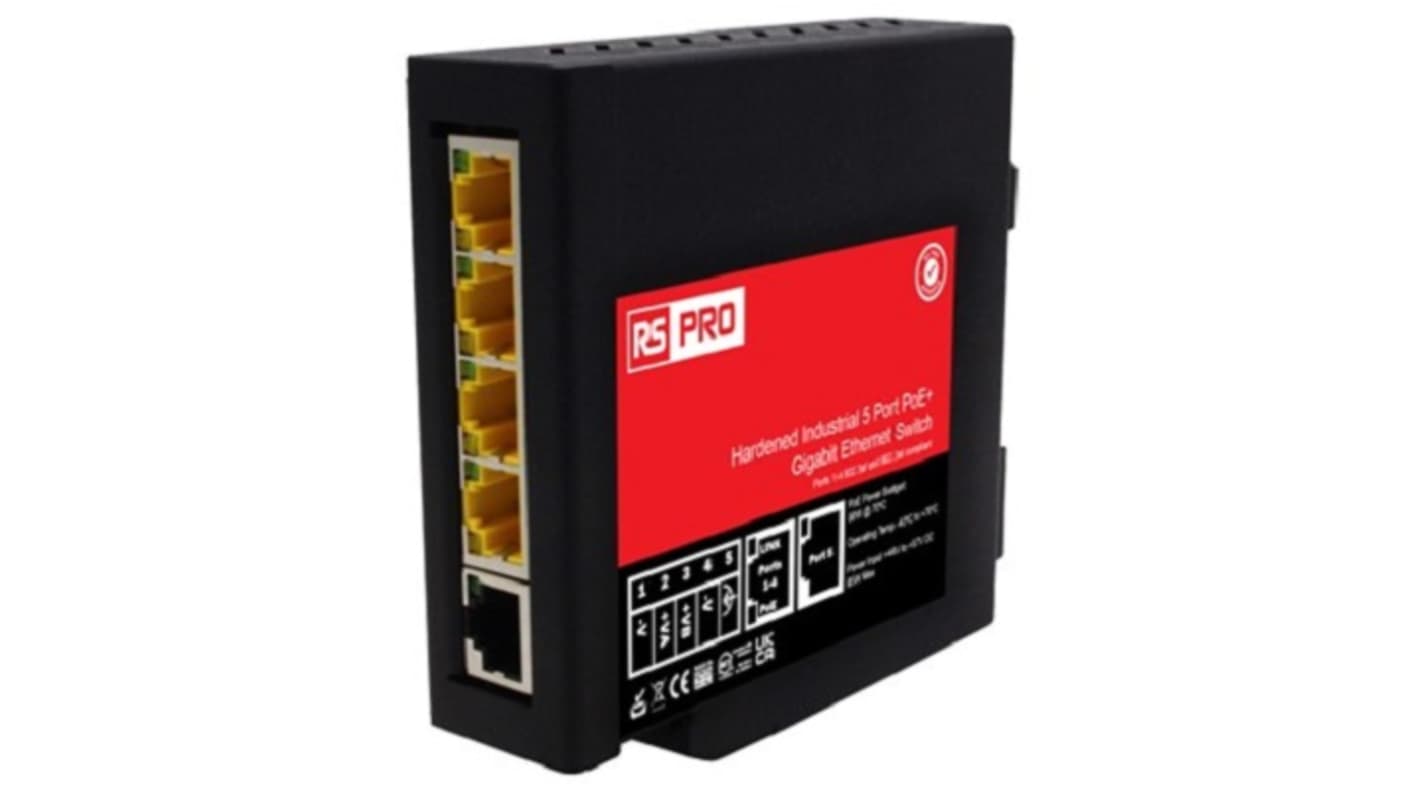

RS PRO Hardened Industrial 5 Port PoE+ Gigabit Ethernet Switch


RS PRO Industrial PoE Switches are engineered for demanding environments, eliminating the need for costly electrical installations by transmitting both electrical power and data over a single cable. These switches are easy to install and fully comply with IEEE 802.3af/at Ethernet standards, ensuring reliable performance. They offer the flexibility to deploy powered devices virtually anywhere, making them ideal for CCTV and Machine Vision installations in industrial settings.

Features and Benefits


  • Streamlined installation - electrical power and data over the same cable

  • 4 PoE+ capable ports - fully compliant to IEEE 802.3af/at

  • High PoE power budget 90W @ 70ºC between all 4 PoE ports simultaneously - efficiently deliver power to connected devices

  • Robust industrial design - operating temp -40°C to +70°C / -40°F to +158°F

  • Redundant dual power inputs +44V to +57V DC: enhances system reliability

  • Smart LED indicators: real-time status information, quick visual monitoring

    • Specifications


  • Switch Type: Ethernet Unmanaged Switch

  • Number of Ports: 5 Gigabit Ethernet, 4 PoE+ capable ports 802.3af/at

  • Protocol Type: Ethernet 10/100/1000Mbps

  • Transmission Length: 100m

  • Transmission Speed: 10/100/1000Mbit/s

  • RJ45 Ports: 5

  • Maximum Supply Voltage: 57 V DC, reverse polarity protection

  • Nominal Supply Voltage: 48 VDC

  • Minimum Supply Voltage: 44 VDC

  • Power Consumption: 5.5 Watts Max: 96mA@+57V DC

    • Applications


  • Local Area Networks (LANs)

  • Data Centres

  • Office Networks

  • Industrial Networks
