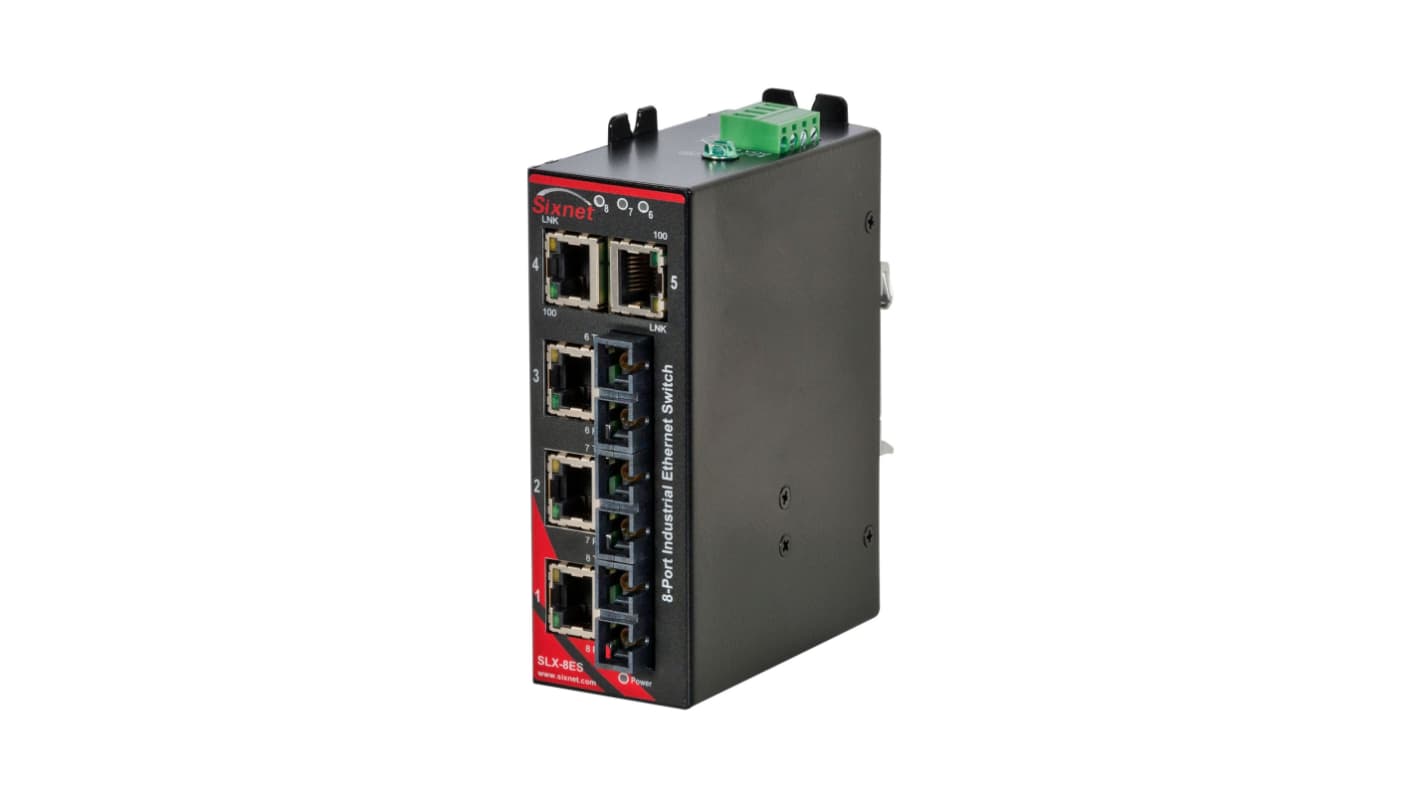

N-Tron SLX Series DIN Rail Ethernet Switch, 5, 100Mbps Transmission, 10/30 V dc
- N° de stock RS:
- 212-552
- Numéro d'article Distrelec:
- 302-30-259
- Référence fabricant:
- SLX-8ES-6SC
- Fabricant:
- N-Tron
Sous-total (1 unité)*
806,30 €
(TVA exclue)
975,62 €
(TVA incluse)
Ajouter 1 unité pour bénéficier d'une livraison gratuite
- Expédition à partir du 20 avril 2026
Unité | Prix par unité |
|---|---|
| 1 + | 806,30 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 212-552
- Numéro d'article Distrelec:
- 302-30-259
- Référence fabricant:
- SLX-8ES-6SC
- Fabricant:
- N-Tron
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | N-Tron | |
| Product Type | Ethernet Switch | |
| Transmission Speed | 100Mbps | |
| Transmission Length | 120km | |
| Fibre Port Type | 100 Base FX | |
| Nominal Supply Voltage | 10/30 V dc | |
| Mount Type | DIN Rail | |
| Series | SLX | |
| For Use With | Industrial Ethernet Systems | |
| Minimum Operating Temperature | -40°C | |
| Number of RJ-45 Ports | 5 | |
| Maximum Operating Temperature | 75°C | |
| Width | 5.20 in | |
| Height | 4.70in | |
| Weight | 0.31kg | |
| Standards/Approvals | IEC60825-1 Class 1, UL1604/CSA C22.2/213 (Class I,Div. 2), UL508/CSA C22.2/14, FDA 21 CFR 1040.10/1040.11, EN60079-15 (Zone 2,Cat 3), EN61010-1, EN61000-6, ABS, FCC part 15, ICES-003, CE, EN55022 | |
| Depth | 1.60in | |
| Number of Ports | 8 | |
| Switch Type | Unmanaged | |
| Special Features | Dual Power Inputs, Industrial Hardened Design, Auto-sensing Speed/duplex, Plug and Play, Noise-immune Fiber Links, Ultra-reliable 1, Rugged Aluminum Case, 000+ h MTBF, Auto MDI/MDIX | |
| Protocol Type | IEEE 802.3 | |
| Sélectionner tout | ||
|---|---|---|
Marque N-Tron | ||
Product Type Ethernet Switch | ||
Transmission Speed 100Mbps | ||
Transmission Length 120km | ||
Fibre Port Type 100 Base FX | ||
Nominal Supply Voltage 10/30 V dc | ||
Mount Type DIN Rail | ||
Series SLX | ||
For Use With Industrial Ethernet Systems | ||
Minimum Operating Temperature -40°C | ||
Number of RJ-45 Ports 5 | ||
Maximum Operating Temperature 75°C | ||
Width 5.20 in | ||
Height 4.70in | ||
Weight 0.31kg | ||
Standards/Approvals IEC60825-1 Class 1, UL1604/CSA C22.2/213 (Class I,Div. 2), UL508/CSA C22.2/14, FDA 21 CFR 1040.10/1040.11, EN60079-15 (Zone 2,Cat 3), EN61010-1, EN61000-6, ABS, FCC part 15, ICES-003, CE, EN55022 | ||
Depth 1.60in | ||
Number of Ports 8 | ||
Switch Type Unmanaged | ||
Special Features Dual Power Inputs, Industrial Hardened Design, Auto-sensing Speed/duplex, Plug and Play, Noise-immune Fiber Links, Ultra-reliable 1, Rugged Aluminum Case, 000+ h MTBF, Auto MDI/MDIX | ||
Protocol Type IEEE 802.3 | ||
- Pays d'origine :
- TW
