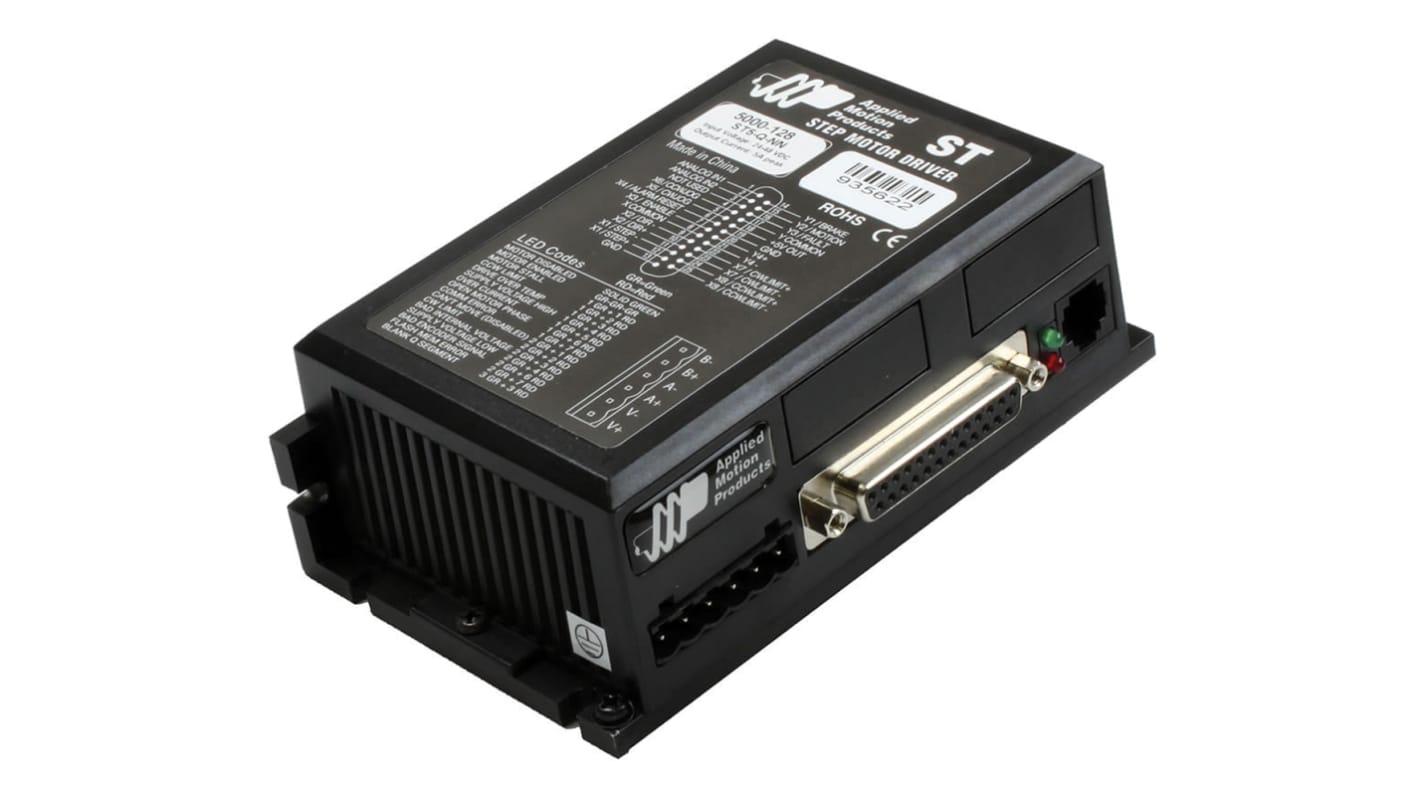

Applied Motion Systems Stepper Motor Controller, 48V, 0.1A, 10 A, Current Controller Function
- N° de stock RS:
- 877-7228
- Référence fabricant:
- ST10-Q-NN
- Fabricant:
- Applied Motion Systems
Indisponible
RS n'aura plus ce produit en stock.
Produit de remplacement
Ce produit n'est pas disponible actuellement. Voici notre produit de remplacement:
la pièce
212,54 €
(TVA exclue)
257,17 €
(TVA incluse)
- N° de stock RS:
- 877-7228
- Référence fabricant:
- ST10-Q-NN
- Fabricant:
- Applied Motion Systems
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Applied Motion Systems | |
| Product Type | Stepper Motor Controller | |
| Control Function | Current Controller | |
| Supply Voltage | 48V | |
| Output Voltage | 24, 80V dc | |
| Current Rating | 0.1, 10A | |
| Overall Length | 127mm | |
| Overall Width | 76mm | |
| Overall Depth | 44.5mm | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | No | |
| Series | ST | |
| Sélectionner tout | ||
|---|---|---|
Marque Applied Motion Systems | ||
Product Type Stepper Motor Controller | ||
Control Function Current Controller | ||
Supply Voltage 48V | ||
Output Voltage 24, 80V dc | ||
Current Rating 0.1, 10A | ||
Overall Length 127mm | ||
Overall Width 76mm | ||
Overall Depth 44.5mm | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals No | ||
Series ST | ||
- Pays d'origine :
- US
ST5-Q and ST10-Q - Stepper Drives
ST5-Q and ST10-Q - High Performance Stepper Motor Drives with multiple control options.
Stepper Motor Drives ST-Q
Advanced Current Control
Anti-Resonance
Torque Ripple Smoothing
Microstep Emulation
Stall Detection/Prevention
Executes stored Q programs
Networking with RS-485 or Ethernet options
Conditional processing & multi-tasking
Math functions, register manipulation
Encoder following
Pulse and direction: pulse/direction, CW/CCW, A/B quadrature
RS232 interface
8 digital inputs, 2 analog inputs
4 digital outputs
