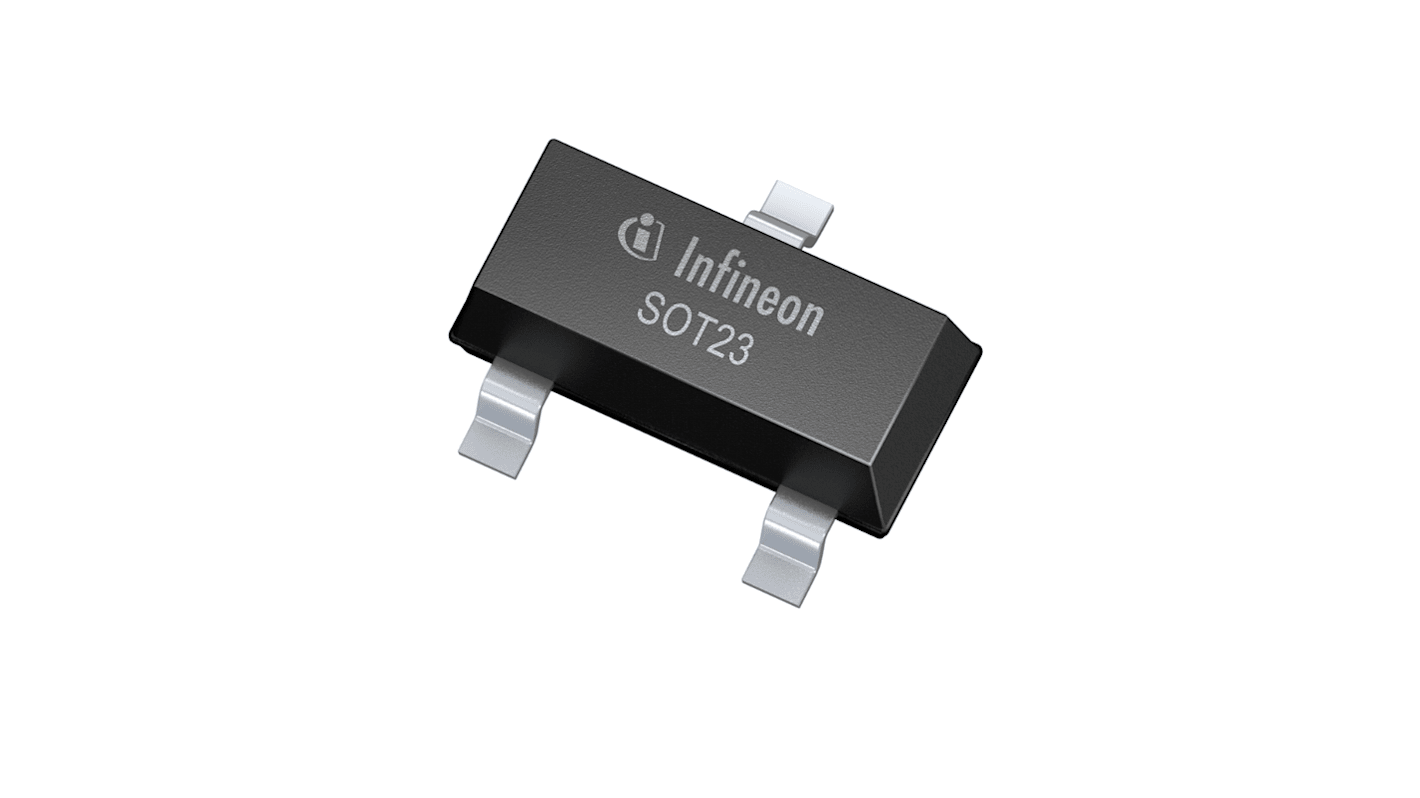

Infineon Surface Hall Effect Sensor 3 V 32 V, SOT-23, 3-Pin
- N° de stock RS:
- 223-8587
- Référence fabricant:
- TLE49681MXTSA1
- Fabricant:
- Infineon
Sous-total (1 bobine de 3000 unités)*
831,00 €
(TVA exclue)
1 005,00 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 12 mai 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | la bobine* |
|---|---|---|
| 3000 + | 0,277 € | 831,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 223-8587
- Référence fabricant:
- TLE49681MXTSA1
- Fabricant:
- Infineon
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Infineon | |
| Sensor Type | Hall Effect | |
| Product Type | Hall Effect Sensor | |
| Mount Type | Surface | |
| Magnetic Type | Bipolar | |
| Minimum Supply Voltage | 3V | |
| Package Type | SOT-23 | |
| Maximum Supply Voltage | 32V | |
| Minimum Operating Temperature | -40°C | |
| Sensitivity | 1mT | |
| Pin Count | 3 | |
| Maximum Operating Temperature | 170°C | |
| Length | 2.9mm | |
| Height | 1mm | |
| Standards/Approvals | RoHS | |
| Series | TLE4968-1M | |
| Width | 0.6 mm | |
| Automotive Standard | AEC-Q100 | |
| Supply Current | 1.6mA | |
| Sélectionner tout | ||
|---|---|---|
Marque Infineon | ||
Sensor Type Hall Effect | ||
Product Type Hall Effect Sensor | ||
Mount Type Surface | ||
Magnetic Type Bipolar | ||
Minimum Supply Voltage 3V | ||
Package Type SOT-23 | ||
Maximum Supply Voltage 32V | ||
Minimum Operating Temperature -40°C | ||
Sensitivity 1mT | ||
Pin Count 3 | ||
Maximum Operating Temperature 170°C | ||
Length 2.9mm | ||
Height 1mm | ||
Standards/Approvals RoHS | ||
Series TLE4968-1M | ||
Width 0.6 mm | ||
Automotive Standard AEC-Q100 | ||
Supply Current 1.6mA | ||
The Infineon XENSIV series is an integrated hall effect switch designed specifically for highly accurate applications with superior supply voltage capability, operating temperature range and temperature stability of the magnetic thresholds.
Operation from unregulated power supply
Reverse polarity protection
Overvoltage capability up to 42 V without external resistor
Output overcurrent & over temperature protection
Active error compensation
