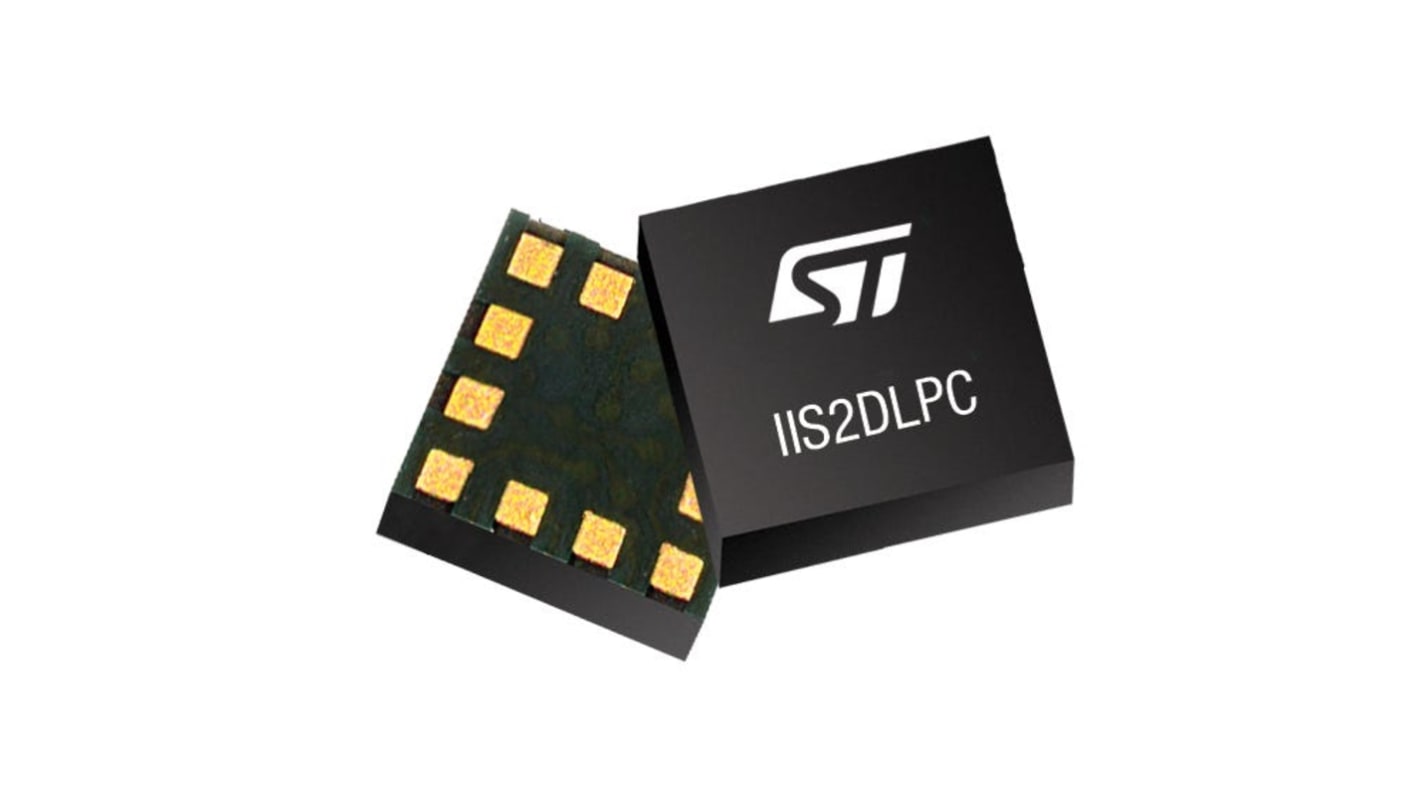

STMicroelectronics 3 Axis Surface Sensor 1.6 V 3.6V, SPI, I2C, LGA12, 12-Pin
- N° de stock RS:
- 152-043
- Référence fabricant:
- IIS2DLPCTR
- Fabricant:
- STMicroelectronics
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 ruban de 2 unités)*
4,18 €
(TVA exclue)
5,06 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 9 358 unité(s) expédiée(s) à partir du 18 juin 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le ruban* |
|---|---|---|
| 2 - 18 | 2,09 € | 4,18 € |
| 20 - 198 | 1,885 € | 3,77 € |
| 200 - 998 | 1,735 € | 3,47 € |
| 1000 - 1998 | 1,61 € | 3,22 € |
| 2000 + | 1,56 € | 3,12 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 152-043
- Référence fabricant:
- IIS2DLPCTR
- Fabricant:
- STMicroelectronics
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | STMicroelectronics | |
| Product Type | Sensor | |
| Sensor Type | Accelerometer | |
| Number of Axis | 3 | |
| Technology | Accelerometer | |
| Mount Type | Surface | |
| Interface Type | SPI, I2C | |
| Maximum Frequency Response | 1600Hz | |
| Minimum Frequency Response | 1.6Hz | |
| Minimum Supply Voltage | 1.6V | |
| Package Type | LGA12 | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Pin Count | 12 | |
| Length | 2.5mm | |
| Series | IIS2DLPC | |
| Standards/Approvals | RoHS | |
| Height | 0.83mm | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque STMicroelectronics | ||
Product Type Sensor | ||
Sensor Type Accelerometer | ||
Number of Axis 3 | ||
Technology Accelerometer | ||
Mount Type Surface | ||
Interface Type SPI, I2C | ||
Maximum Frequency Response 1600Hz | ||
Minimum Frequency Response 1.6Hz | ||
Minimum Supply Voltage 1.6V | ||
Package Type LGA12 | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Pin Count 12 | ||
Length 2.5mm | ||
Series IIS2DLPC | ||
Standards/Approvals RoHS | ||
Height 0.83mm | ||
Automotive Standard No | ||
- Pays d'origine :
- PH
The STMicroelectronics ultra-low-power high-performance three-axis linear accelerometer with digital I²C/SPI output Interface which leverages on the robust and mature manufacturing processes already used for the production of micro machined accelerometers.
ECOPACK and RoHS compliant
Green compliant
Embedded temperature sensor
Self-test
10000 g high shock survivability
