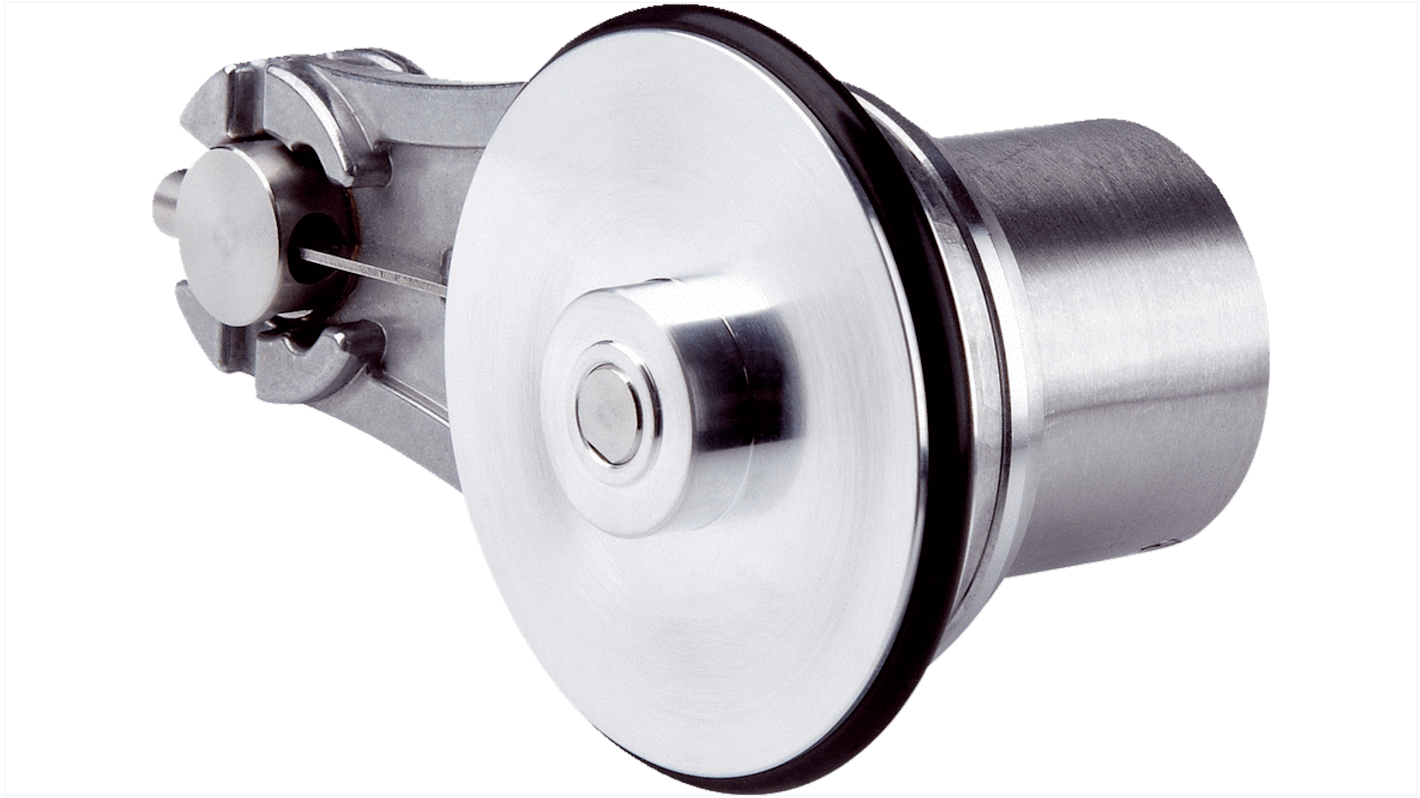

SICK DBV50E Series Incremental Incremental Encoder 30V, 1000 ppr ppr, Push Pull, HTL Signal, Solid Shaft Type, 8 mm
- N° de stock RS:
- 285-1088
- Référence fabricant:
- DBV50E-22EKA1000 / 1081979
- Fabricant:
- SICK
Sous-total (1 unité)*
199,23 €
(TVA exclue)
241,07 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
- Prêt à être expédié à partir du 03 février 2027
Unité | Prix par unité |
|---|---|
| 1 + | 199,23 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 285-1088
- Référence fabricant:
- DBV50E-22EKA1000 / 1081979
- Fabricant:
- SICK
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | SICK | |
| Product Type | Incremental Encoder | |
| Encoder Technology | Incremental | |
| Series | DBV50E | |
| Pulses Per Revolution | 1000ppr | |
| Output Signal Type | Push Pull, HTL | |
| Shaft Type | Solid Shaft | |
| Shaft Diameter | 8mm | |
| Interface Type | Incremental | |
| Terminal Type | Cable | |
| IP Rating | IP65 | |
| Maximum Supply Voltage | 30V | |
| Minimum Operating Temperature | -20°C | |
| Overall Height | 50mm | |
| Standards/Approvals | UK declaration of conformity, EU declaration of conformity, CE, CHINA-RoHS, ACMA declaration of conformity, cULus | |
| Overall Width | 50mm | |
| Mount Type | Flange | |
| Maximum Operating Temperature | 85°C | |
| Switching Frequency | 300kHz | |
| Sélectionner tout | ||
|---|---|---|
Marque SICK | ||
Product Type Incremental Encoder | ||
Encoder Technology Incremental | ||
Series DBV50E | ||
Pulses Per Revolution 1000ppr | ||
Output Signal Type Push Pull, HTL | ||
Shaft Type Solid Shaft | ||
Shaft Diameter 8mm | ||
Interface Type Incremental | ||
Terminal Type Cable | ||
IP Rating IP65 | ||
Maximum Supply Voltage 30V | ||
Minimum Operating Temperature -20°C | ||
Overall Height 50mm | ||
Standards/Approvals UK declaration of conformity, EU declaration of conformity, CE, CHINA-RoHS, ACMA declaration of conformity, cULus | ||
Overall Width 50mm | ||
Mount Type Flange | ||
Maximum Operating Temperature 85°C | ||
Switching Frequency 300kHz | ||
- Pays d'origine :
- MY
