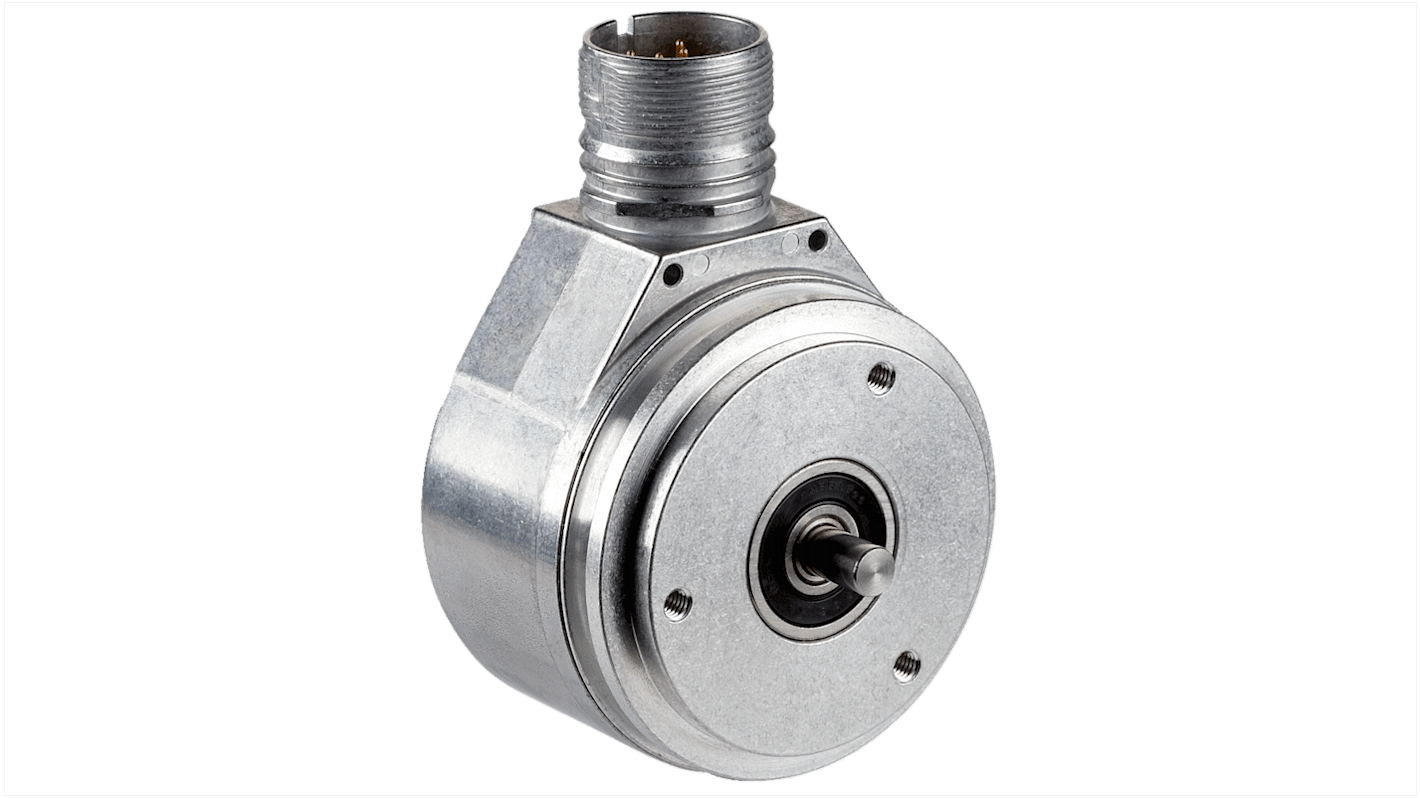

SICK DFS60 Series Incremental Incremental Encoder 5.5V, 4096 ppr ppr, RS422, TTL Signal, Solid Type, 6 mm Shaft

N° de stock RS:: 266-7516
Référence fabricant:: DFS60B-S1AA04096 / 1038032
Fabricant:: SICK

Sous-total (1 unité)*

291,34 €

(TVA exclue)

352,52 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

En stock

Plus 2 unité(s) expédiée(s) à partir du 28 septembre 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	291,34 €

*Prix donné à titre indicatif

N° de stock RS:: 266-7516
Référence fabricant:: DFS60B-S1AA04096 / 1038032
Fabricant:: SICK

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	SICK
	Product Type	Incremental Encoder
	Encoder Technology	Incremental
	Series	DFS60
	Pulses Per Revolution	4096ppr
	Maximum Revolutions	9000rpm
	Output Signal Type	RS422, TTL
	Shaft Type	Solid
	Shaft Diameter	6mm
	Interface Type	RS422
	Terminal Type	Male Connector
	IP Rating	IP65, IP67
	Maximum Supply Voltage	5.5V
	Minimum Operating Temperature	-40°C
	Overall Depth	49.6mm
	Standards/Approvals	CE
	Overall Width	60mm
	Overall Height	60mm
	Maximum Operating Temperature	100°C
	Mount Type	Flange

	Sélectionner tout
	Marque SICK
	Product Type Incremental Encoder
	Encoder Technology Incremental
	Series DFS60
	Pulses Per Revolution 4096ppr
	Maximum Revolutions 9000rpm
	Output Signal Type RS422, TTL
	Shaft Type Solid
	Shaft Diameter 6mm
	Interface Type RS422
	Terminal Type Male Connector
	IP Rating IP65, IP67
	Maximum Supply Voltage 5.5V
	Minimum Operating Temperature -40°C
	Overall Depth 49.6mm
	Standards/Approvals CE
	Overall Width 60mm
	Overall Height 60mm
	Maximum Operating Temperature 100°C
	Mount Type Flange

Datasheet - DFS60B-S1AA04096

Pays d'origine :: DE

Overview

The DFS60 is a high-resolution incremental encoder with a diameter of 60 mm. It offers lots of mechanical and electrical interfaces and a housing made from aluminium or stainless steel. You can program the encoder yourself, if you want. A key feature is the range of options for programming the electrical parameters, e.g., the output signal level, the number of pulses per revolution, or the zero pulse width. This makes the DFS60 highly suitable for demanding applications as well.

The high enclosure rating, wide temperature range, and wide-set ball bearings ensure a high level of ruggedness and make the DFS60 the ideal encoder for industrial applications with harsh ambient conditions.

At a glance

Pulses per revolution: Up to 65,536 (16 bit)

Housing diameter: 60 mm

Solid shaft, blind hollow shaft, through hollow shaft

Enclosure rating: IP65/IP67

Communication interfaces: TTL RS 422, HTL Push Pull, Sin/Cos

Connection type: M12 or M23 male connector, or universal cable

Programmable, compact installation depth, remote zero set possible

Your Benefit

The programmability of the encoder results in reduced storage, high machine availability, and easy and fast installation

Flexible adaptation to the application-specific installation situation

High resolution up to 16 bits allows applications with demanding requirements on measurement accuracy

The stainless-steel housing offers high resistance to environmental influences

Long-term and reliable operation thanks to a high enclosure rating, temperature resistance and bearing lifetime

Excellent concentricity even at high speeds

Simple mounting thanks to compact dimensions, when the installation space is limited

Applications

Measurement of position, speed and displacement in factory and logistics automation, e.g., in the food and beverages industry,

medical technology, wood processing, in outdoor applications at ports or offshore plants, printing machines, textile machines and

packaging machines
