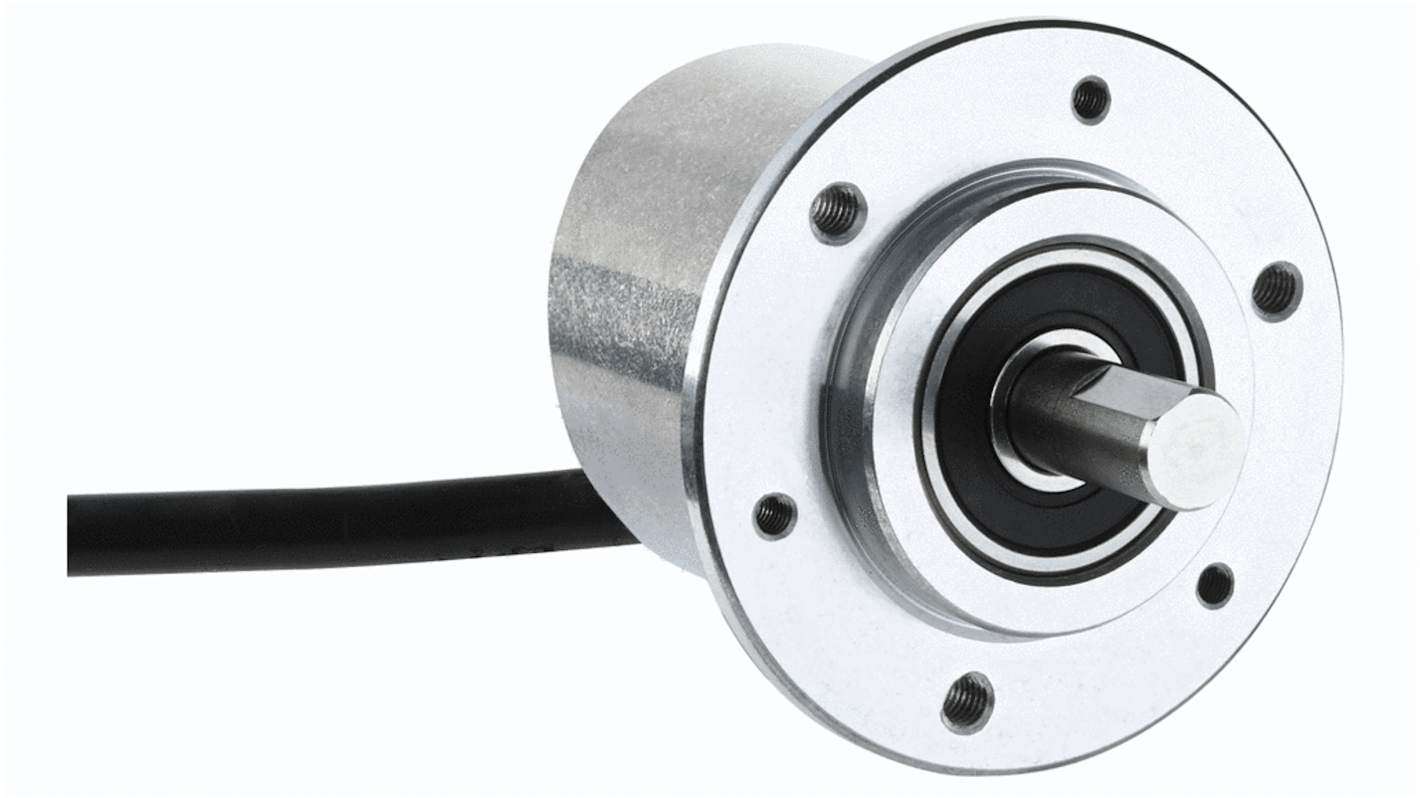

SICK DBS36/50 Series Incremental Incremental Encoder 5.5V, 2500 ppr ppr, RS422, TTL Signal, Solid Type, 8 mm Shaft
- N° de stock RS:
- 266-7337
- Référence fabricant:
- DBS50E-S5AL02500 / 1079794
- Fabricant:
- SICK
Sous-total (1 unité)*
136,03 €
(TVA exclue)
164,60 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 16 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 136,03 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 266-7337
- Référence fabricant:
- DBS50E-S5AL02500 / 1079794
- Fabricant:
- SICK
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | SICK | |
| Product Type | Incremental Encoder | |
| Encoder Technology | Incremental | |
| Pulses Per Revolution | 2500ppr | |
| Series | DBS36/50 | |
| Maximum Revolutions | 6000rpm | |
| Output Signal Type | RS422, TTL | |
| Shaft Type | Solid | |
| Shaft Diameter | 8mm | |
| Interface Type | RS422 | |
| Terminal Type | Cable | |
| IP Rating | IP65 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -20°C | |
| Overall Depth | 35.5mm | |
| Overall Height | 58mm | |
| Standards/Approvals | CE | |
| Overall Width | 58mm | |
| Maximum Operating Temperature | 95°C | |
| Mount Type | Flange | |
| Sélectionner tout | ||
|---|---|---|
Marque SICK | ||
Product Type Incremental Encoder | ||
Encoder Technology Incremental | ||
Pulses Per Revolution 2500ppr | ||
Series DBS36/50 | ||
Maximum Revolutions 6000rpm | ||
Output Signal Type RS422, TTL | ||
Shaft Type Solid | ||
Shaft Diameter 8mm | ||
Interface Type RS422 | ||
Terminal Type Cable | ||
IP Rating IP65 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -20°C | ||
Overall Depth 35.5mm | ||
Overall Height 58mm | ||
Standards/Approvals CE | ||
Overall Width 58mm | ||
Maximum Operating Temperature 95°C | ||
Mount Type Flange | ||
- Pays d'origine :
- MY
Overview
The DBS36/50 incremental encoder is characterized by its high mechanical flexibility, excellent technical properties, and many variants. The encoders are available with housing diameters of 36 mm and 50 mm as well as various blind hollow shafts and solid shafts. Thanks to the various mounting hole patterns, servo clamps and servo grooves, and universal stator couplings, theDBS36/50 devices offer comprehensive mounting options.
All models have compact dimensions and a universal cable connection. This allows both axial and radial cable routing.
At a glance
Pulses per revolution: Up to 2,500
Housing diameter: 36 mm or 50 mm
Solid shaft and blind hollow shaft
Enclosure rating: IP65
Communication interfaces: TTL/RS-422, HTL/Push Pull, Open Collector
Connection type: Cable, cable with M12 or M23 male connector
Your Benefit
The flexible cable connection makes installation flexible and easy especially when space is limited
Tailorable to the application: Many mounting options due to various flanges and universal stator couplings
Can be used internationally thanks to shafts in both metric and inch sizes
The high mechanical flexibility and the large selection of supported accessories ensure the variants can be used in many applications
The compact housing diameter saves valuable space
The encoder has a longer service life and is more reliable in operation due to the high enclosure rating, temperature range, and
storage life
Applications
Positioning and speed measurement, e.g., in the textile industry, glass industry, drive technology, storage and conveyor technology,
in packaging machines, printing presses, and elevators
