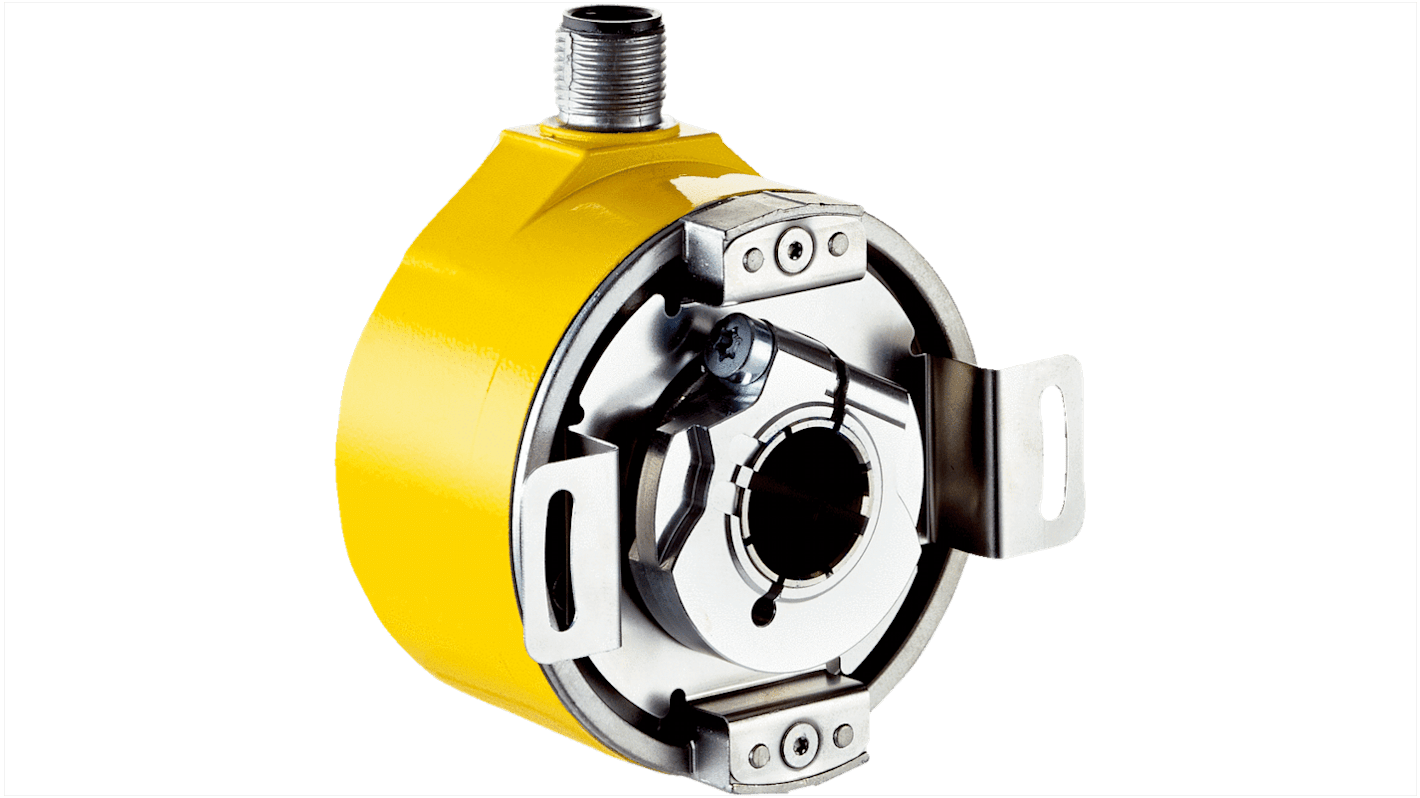

SICK AFM60 Series Safety Encoder Encoder, 1024ppr ppr, SSI Signal, Through Hollow Type, 10mm Shaft

Voir la catégorie

Sous-total (1 unité)*

1 080,65 €

(TVA exclue)

1 307,59 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • Plus 1 unité(s) expédiée(s) à partir du 15 décembre 2025
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +1 080,65 €

*Prix donné à titre indicatif

N° de stock RS:
266-7182
Référence fabricant:
AFM60S-TDSC016384 / 1111703
Fabricant:
SICK
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

SICK

Encoder Technology

Safety Encoder

Series

AFM60

Pulses Per Revolution

1024ppr

Maximum Revolutions

6000rpm

Output Signal Type

SSI

Shaft Type

Through Hollow

Supply Voltage

30 V

Shaft Diameter

10mm

Resolution

14 x 12

Steps Per Revolution

16384Steps

IP Rating

IP65

Interface

SSI

Overall Height

60mm

Overall Width

72mm

Overall Depth

43mm

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

+85°C

Connection Type

Male Connector

Pays d'origine :
DE

Overview


The high-resolution AFS/AFM60 Ethernet absolute encoders take high-precision measurements of the absolute position and speed. Comprehensive smart functions for diagnosing parameters such as temperature or operating time and for early error detection increase the machine and plant availability. Various configuration options – for example, modifying the resolution – simplify installation and enable customized adjustment to each application.

SICK provides function blocks for the encoders with a PROFINET and Ethernet/IP™ interface, and the AFS/AFM60 Ethernet/IP™ variants also come with an active web server. Their compact design also makes AFS/AFM60 Ethernet absolute encoders suitable for applications where space is at a premium.

At a glance


High-resolution absolute encoder with up to 30 bits (AFM60) or 18 bits (AFS60)
Face mount flange, servo flange, blind hollow shaft
Connection type: 3 x M12 axial plug
Communication interfaces: PROFINET, Ethernet/IP™, Ether CAT®
Round axis functionality
Diagnostic functions
Status display via 5 LEDs

Your Benefit


Their high resolution and measurement accuracy enable them to be used in demanding applications
Application-specific solutions thanks to a variety of mechanical interfaces
Smart diagnostics functions for increasing the availability of the overall system
Easy installation due to various configuration options and function blocks (type-dependent)
Fully scalable for binary, non-binary, and non-integer resolutions thanks to round axis functionality
Compact and cost-efficient design
Integrated web server for easy parameterization without the need for specialized interface knowledge (type-dependent)

Applications


Measurement of absolute position and speed in various machines and systems used in industrial automation as well as production and process technology, e.g., in storage systems, packaging machines, hydraulic presses, printing machines, rotating tables.

Note
