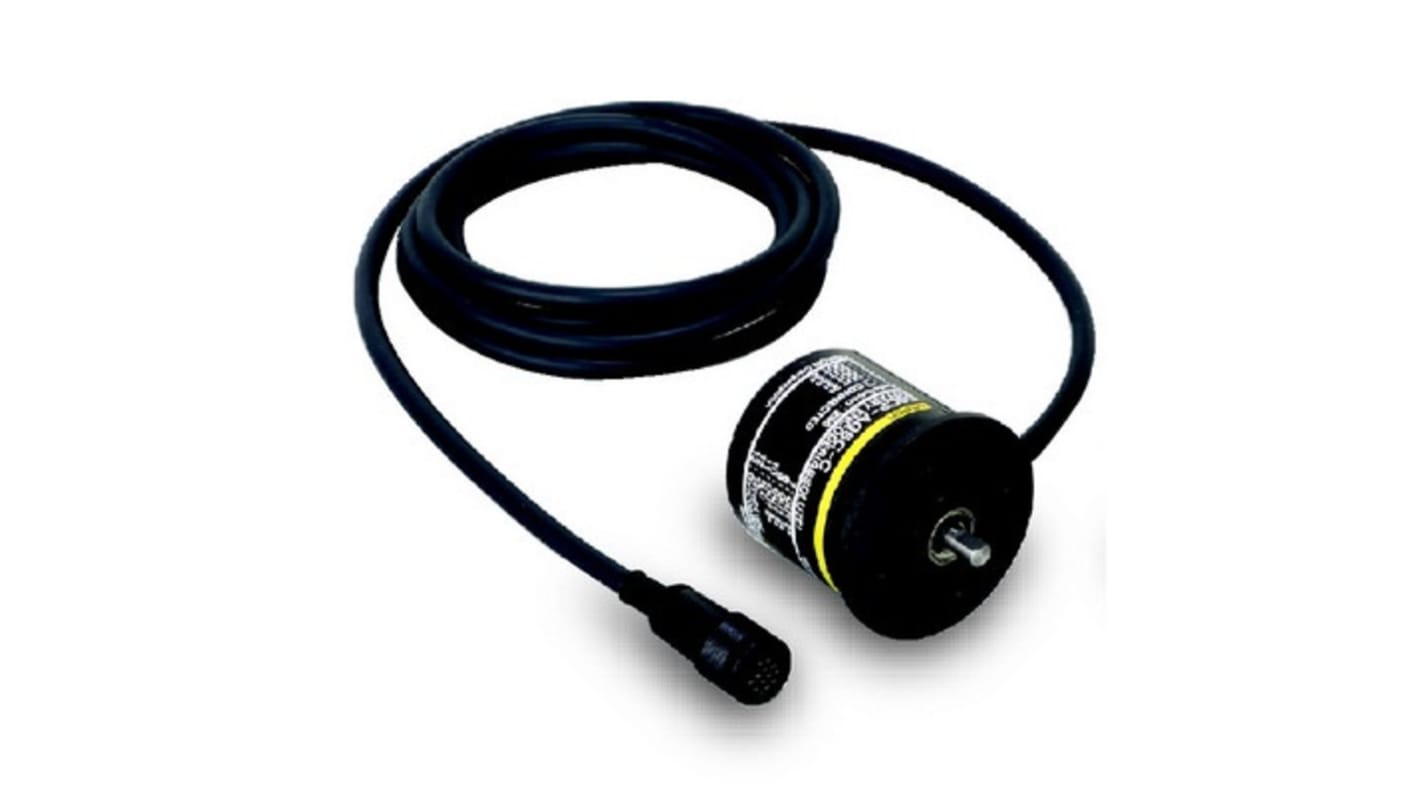

Omron E6CP-AG Series Absolute Absolute Encoder 24V dc, 256 ppr ppr, 6 mm Shaft
- N° de stock RS:
- 215-7376
- Référence fabricant:
- E6CP-AG5C 256 2M
- Fabricant:
- Omron
Sous-total (1 unité)*
347,44 €
(TVA exclue)
420,40 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 20 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 347,44 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 215-7376
- Référence fabricant:
- E6CP-AG5C 256 2M
- Fabricant:
- Omron
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Omron | |
| Encoder Technology | Absolute | |
| Product Type | Absolute Encoder | |
| Series | E6CP-AG | |
| Pulses Per Revolution | 256ppr | |
| Maximum Revolutions | 1000rpm | |
| Shaft Diameter | 6mm | |
| IP Rating | IP50 | |
| Maximum Supply Voltage | 24V dc | |
| Minimum Operating Temperature | -10°C | |
| Overall Depth | 50mm | |
| Overall Height | 50mm | |
| Standards/Approvals | IEC | |
| Overall Width | 65mm | |
| Maximum Operating Temperature | 55°C | |
| Mount Type | Surface | |
| Switching Frequency | 5kHz | |
| Sélectionner tout | ||
|---|---|---|
Marque Omron | ||
Encoder Technology Absolute | ||
Product Type Absolute Encoder | ||
Series E6CP-AG | ||
Pulses Per Revolution 256ppr | ||
Maximum Revolutions 1000rpm | ||
Shaft Diameter 6mm | ||
IP Rating IP50 | ||
Maximum Supply Voltage 24V dc | ||
Minimum Operating Temperature -10°C | ||
Overall Depth 50mm | ||
Overall Height 50mm | ||
Standards/Approvals IEC | ||
Overall Width 65mm | ||
Maximum Operating Temperature 55°C | ||
Mount Type Surface | ||
Switching Frequency 5kHz | ||
The Omron E6CP-AG5C 256 2M is a Low-cost Encoder with Diameter of 50 mm. It has a rated supply voltage of 12-24 VDC, with grey code output, has a 2 m cable length.
Absolute model
External diameter of 50 mm
Resolution of 256 (8-bit)
Lightweight construction using plastic body
