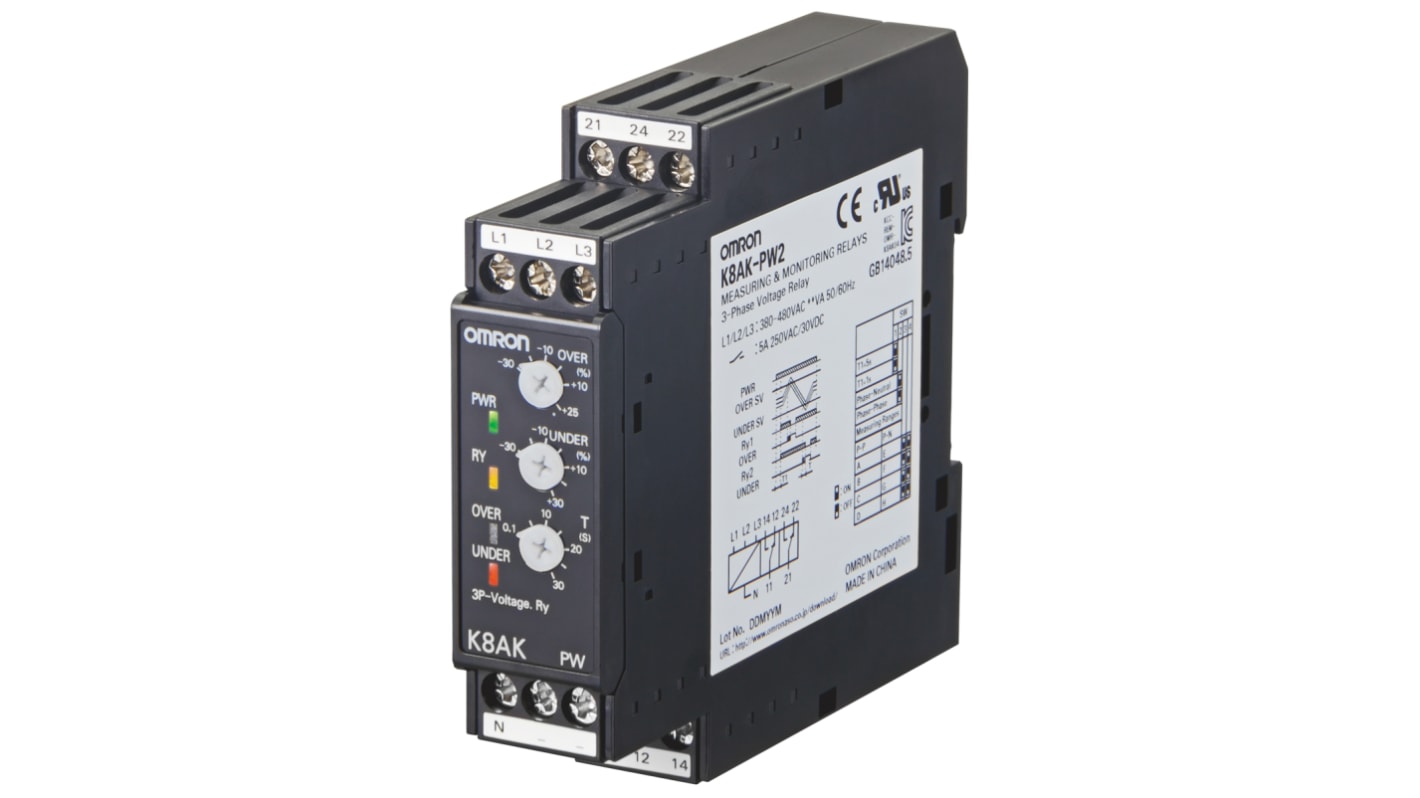

Omron Voltage Monitoring Relay, 3 Phase, SPDT
- N° de stock RS:
- 819-3264
- Référence fabricant:
- K8AKPW2380480VAC
- Fabricant:
- Omron
Sous-total (1 unité)*
186,65 €
(TVA exclue)
225,85 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 13 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 3 unité(s) expédiée(s) à partir du 22 décembre 2025
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 186,65 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 819-3264
- Référence fabricant:
- K8AKPW2380480VAC
- Fabricant:
- Omron
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Omron | |
| Monitoring Application | Voltage | |
| Electrical Phase | 3 | |
| Contact Configuration | SPDT | |
| Voltage Sensitivity | Overvoltage, Undervoltage | |
| Time Delay | 0.1 → 30s | |
| Series | K8AK | |
| Dimensions | 22.5 x 90 x 100mm | |
| Minimum Operating Temperature | -20°C | |
| Length | 22.5mm | |
| Terminal Type | Screw | |
| Width | 22.5mm | |
| Maximum Operating Temperature | +60°C | |
| Operating Temperature Range | -20 → +60°C | |
| Height | 90mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Omron | ||
Monitoring Application Voltage | ||
Electrical Phase 3 | ||
Contact Configuration SPDT | ||
Voltage Sensitivity Overvoltage, Undervoltage | ||
Time Delay 0.1 → 30s | ||
Series K8AK | ||
Dimensions 22.5 x 90 x 100mm | ||
Minimum Operating Temperature -20°C | ||
Length 22.5mm | ||
Terminal Type Screw | ||
Width 22.5mm | ||
Maximum Operating Temperature +60°C | ||
Operating Temperature Range -20 → +60°C | ||
Height 90mm | ||
Omron K8AK Series Monitoring Relay, SPDT Contact Configuration, Voltage Monitoring - K8AKPW2380480VAC
This monitoring relay is designed for voltage monitoring in industrial applications. Compact in size, measuring 22.5x90x100mm, it ensures effective monitoring of three-phase power supplies with configurations for both three-wire and four-wire systems. It aids in protecting equipment by detecting overvoltages and undervoltages efficiently.
Features & Benefits
• Monitors 3-phase power supplies for improved operational reliability
• Uses two SPDT output relays for clear status indication
• Offers a wide operating temperature range of -20 to +60°C
• Screw terminal design facilitates wiring and maintenance
• Adjustable operating time allows for customised response times
• Integrated LED indicators provide quick visual status checks
• Uses two SPDT output relays for clear status indication
• Offers a wide operating temperature range of -20 to +60°C
• Screw terminal design facilitates wiring and maintenance
• Adjustable operating time allows for customised response times
• Integrated LED indicators provide quick visual status checks
Applications
• Suitable for voltage monitoring in industrial facilities
• Protects electrical equipment against undervoltage
• Ideal for requiring inverter noise resistance
• Operates effectively in diverse environments with high temperature demands
• Protects electrical equipment against undervoltage
• Ideal for requiring inverter noise resistance
• Operates effectively in diverse environments with high temperature demands
Can it monitor both overvoltages and undervoltages?
Yes, it effectively monitors both for three-phase systems.
Is it suitable for use in high-temperature conditions?
Yes, it operates effectively within a temperature range of -20 to +60°C.
Will it provide visual alerts for relay status?
Yes, it includes LED indicators to display relay operation status.
Can it support various voltage ratings globally?
Yes, it allows for switchable voltage specifications via DIP switches.
Is it easy to maintain and wire?
Yes, it features screw terminals for straightforward wiring and maintenance.
Standards
EN 60947-5-1, UL 508, IP 20
