Omron Monitoring Relay, 3 Phase, 200/400 V ac Monitor Range, DPDT, DIN Rail, 200V ac, 400 V ac 30 V ac

N° de stock RS:: 819-3254
Numéro d'article Distrelec:: 300-17-993
Référence fabricant:: K8AK-PH1
Fabricant:: Omron

Omron Monitoring Relay, 3 Phase, 200/400 V ac Monitor Range, DPDT, DIN Rail, 200V ac, 400 V ac 30 V ac

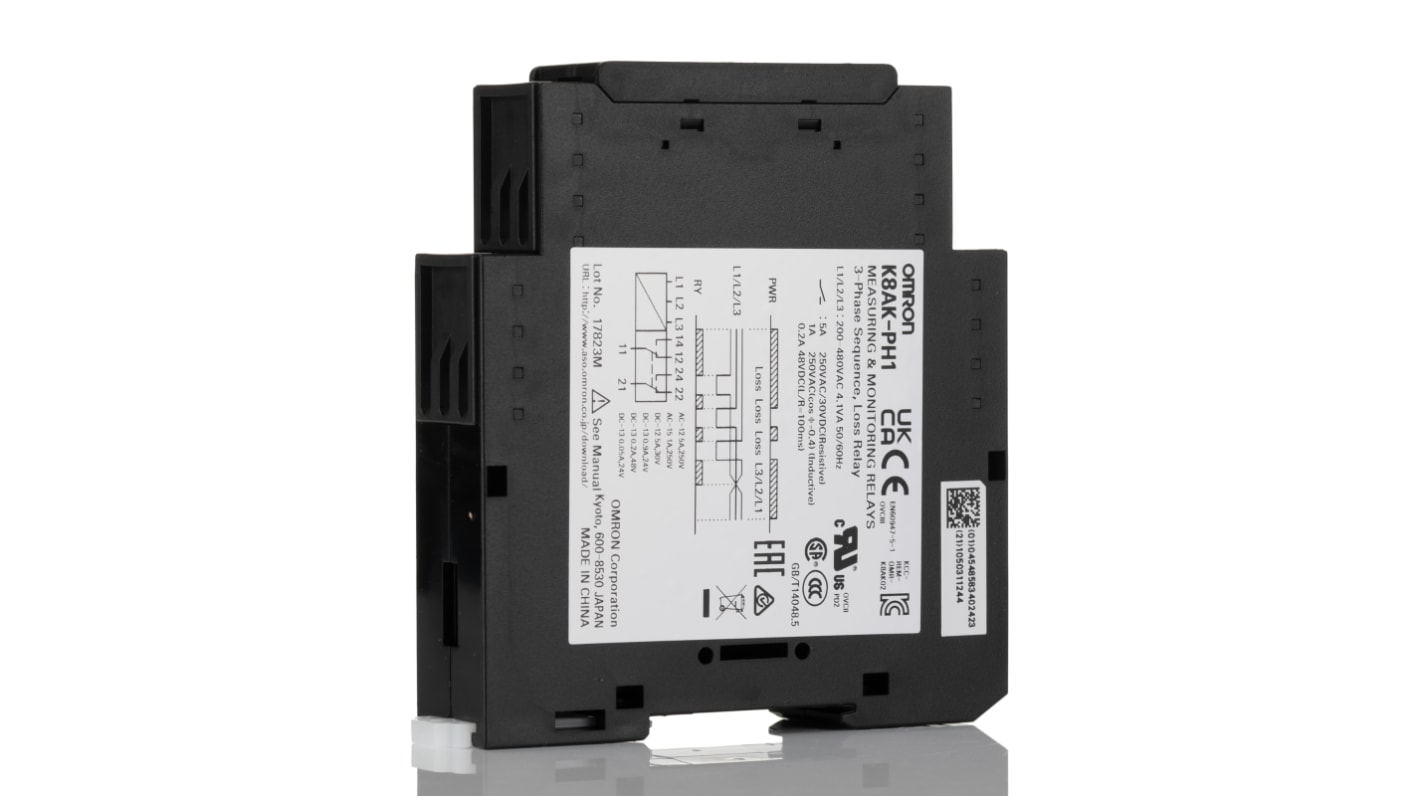

Visuel non contractuel

Sous-total (1 unité)*

90,44 €

(TVA exclue)

109,43 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

En stock

1 unité(s) prête(s) à être expédiée(s)
Plus 15 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Plus 5 unité(s) expédiée(s) à partir du 09 septembre 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	90,44 €

*Prix donné à titre indicatif

N° de stock RS:: 819-3254
Numéro d'article Distrelec:: 300-17-993
Référence fabricant:: K8AK-PH1
Fabricant:: Omron

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Omron
	Product Type	Monitoring Relay
	Electrical Phase	3
	Function	Phase Sequence
	Contact Configuration	DPDT
	Mount Type	DIN Rail
	Switching Voltage	250V ac
	Terminal Type	Screw
	IP Rating	IP40, IP20
	Supply AC Voltage	200, 400V ac
	Monitoring Voltage Range	200/400 V ac
	Minimum Operating Temperature	-20°C
	Supply DC Voltage	30 V ac
	Contact Current	5A
	Maximum Operating Temperature	60°C
	Series	K8AK-PH
	Width	22.5mm
	Standards/Approvals	EN 60947-5-1, UL 508, RoHS
	Length	100mm
	Height	90mm

	Sélectionner tout
	Marque Omron
	Product Type Monitoring Relay
	Electrical Phase 3
	Function Phase Sequence
	Contact Configuration DPDT
	Mount Type DIN Rail
	Switching Voltage 250V ac
	Terminal Type Screw
	IP Rating IP40, IP20
	Supply AC Voltage 200, 400V ac
	Monitoring Voltage Range 200/400 V ac
	Minimum Operating Temperature -20°C
	Supply DC Voltage 30 V ac
	Contact Current 5A
	Maximum Operating Temperature 60°C
	Series K8AK-PH
	Width 22.5mm
	Standards/Approvals EN 60947-5-1, UL 508, RoHS
	Length 100mm
	Height 90mm

Se connecter pour voir les modèles CAO

OMRON Monitoring Relay, DIN Rail Mounting, 130g Weight - K8AK-PH Series - K8AKPH1200500VAC

To keep your industrial motors ticking over safely, put this monitoring relay from OMRON on wtach. It keeps an eye out for sequence and phase loss in three-phase equipment to prevent reverse operation that may cause a breakdown. The device's PC and ABS housing provides the impact resistance that makes it fit for use in harsh industrial settings. Thanks to an integrated LED indicator, you can easily monitor operating status. As you can clip the relay directly onto a DIN rail, installation is done in a jiffy and there's no need to reach for your toolkit.

Features & Benefits

• Quick operating time of 0.1s for precise fault detection and correction

• Operating temperature range between -20°C and +60°C means it's safe to use in challenging settings

• Mechanical life of up to 10 million operating cycles assures you of long-term performance

• IP20 rating shows that it's finger-safe and protected from objects larger than 12.5mm

Applications

• Conveyor systems

• Assembly lines

• Transportation industry

What's the dielectric strength of this relay?

This unit has a dielectric strength of 2kV AC. This means it handles high voltages without suffering damage, making it fit for use in challenging systems.

Omron K8AK-PW/PM/PH/PA Monitoring Relays

The Omron K8AK series monitoring relays are expertly designed for accurate and reliable monitoring for industrial facilities and equipment.

The K8AK-PW/PM monitoring relays are designed to bear greater resistance to inverter noise, suitable for monitoring 3-phase power supplies.

The K8AK-PH relays are Ideal for preventing issues with motor operation and assisting phase loss detection.

The K8AK-PA relays are suitable for 3-phase voltage asymmetry monitoring.

Standards

EN 60947-5-1, UL 508, IP 40 (Terminals IP20).
