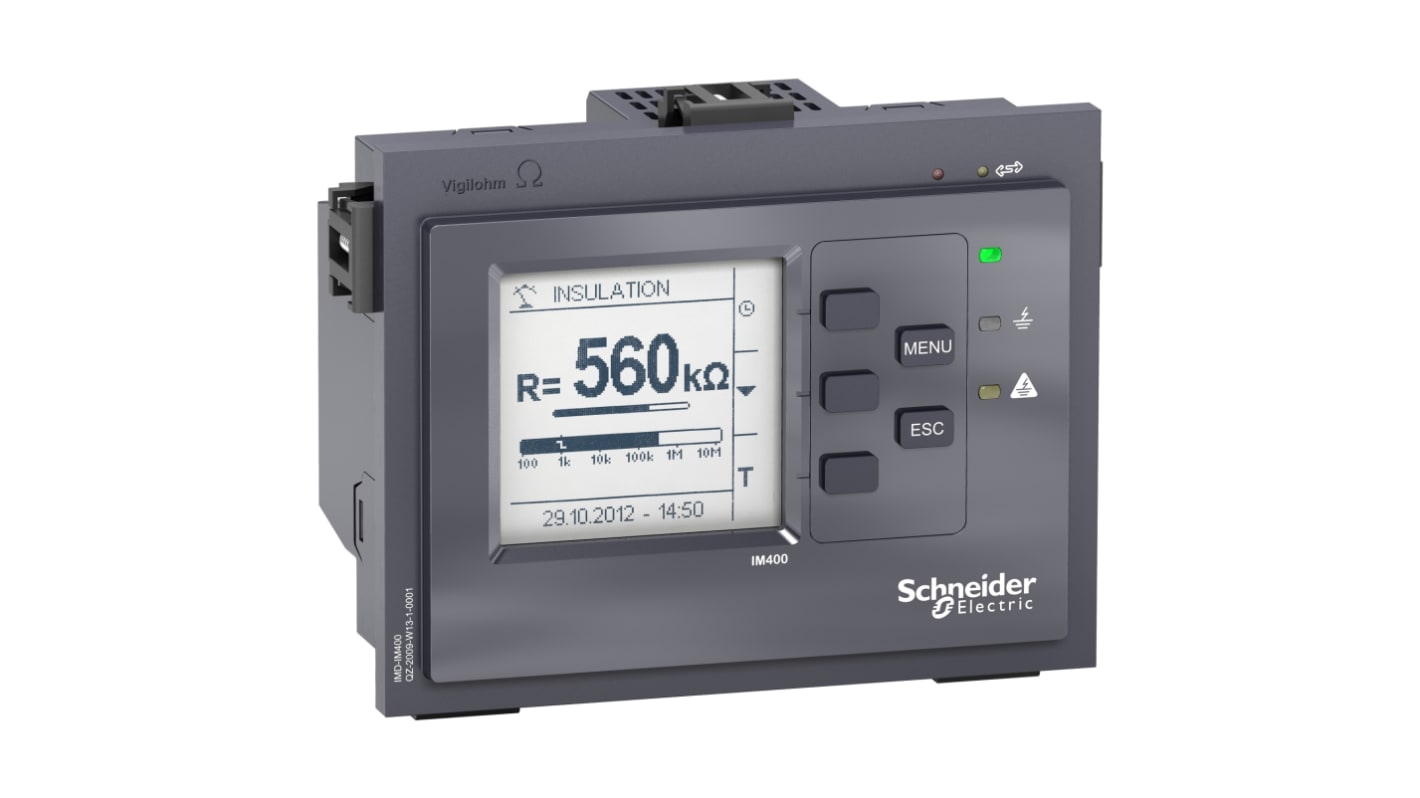

Schneider Electric Monitoring Relay, DPDT, Flush, 440V ac 440 V dc
- N° de stock RS:
- 272-7466
- Référence fabricant:
- IMD-IM400C
- Fabricant:
- Schneider Electric
Sous-total (1 unité)*
4 921,61 €
(TVA exclue)
5 955,15 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 16 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 4 921,61 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 272-7466
- Référence fabricant:
- IMD-IM400C
- Fabricant:
- Schneider Electric
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| Product Type | Monitoring Relay | |
| Application | Insulation | |
| Contact Configuration | DPDT | |
| Mount Type | Flush | |
| Power Consumption | 25VA | |
| Terminal Type | Screw | |
| IP Rating | IP20, IP54 | |
| Supply AC Voltage | 440V ac | |
| Maximum Insulation Resistance | 10mΩ | |
| Minimum Operating Temperature | -25°C | |
| Supply DC Voltage | 440 V dc | |
| Minimum Insulation Resistance | 10Ω | |
| Maximum Operating Temperature | 55°C | |
| Height | 123mm | |
| Standards/Approvals | IEC 61010-1 | |
| Length | 123mm | |
| Series | Vigilohm | |
| Width | 159mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
Product Type Monitoring Relay | ||
Application Insulation | ||
Contact Configuration DPDT | ||
Mount Type Flush | ||
Power Consumption 25VA | ||
Terminal Type Screw | ||
IP Rating IP20, IP54 | ||
Supply AC Voltage 440V ac | ||
Maximum Insulation Resistance 10mΩ | ||
Minimum Operating Temperature -25°C | ||
Supply DC Voltage 440 V dc | ||
Minimum Insulation Resistance 10Ω | ||
Maximum Operating Temperature 55°C | ||
Height 123mm | ||
Standards/Approvals IEC 61010-1 | ||
Length 123mm | ||
Series Vigilohm | ||
Width 159mm | ||
- Pays d'origine :
- IN
The Schneider Electric device belongs to the vigil ohm range designed to monitor ungrounded, IT electrical networks, in accordance to installation and products standards. It measures the system insulation resistance by injecting a low frequency AC current between the network and ground.
Auto-test
HMI screen
Protection is IP52 and rear IP20
RS485 communication port
Modbus protocol
