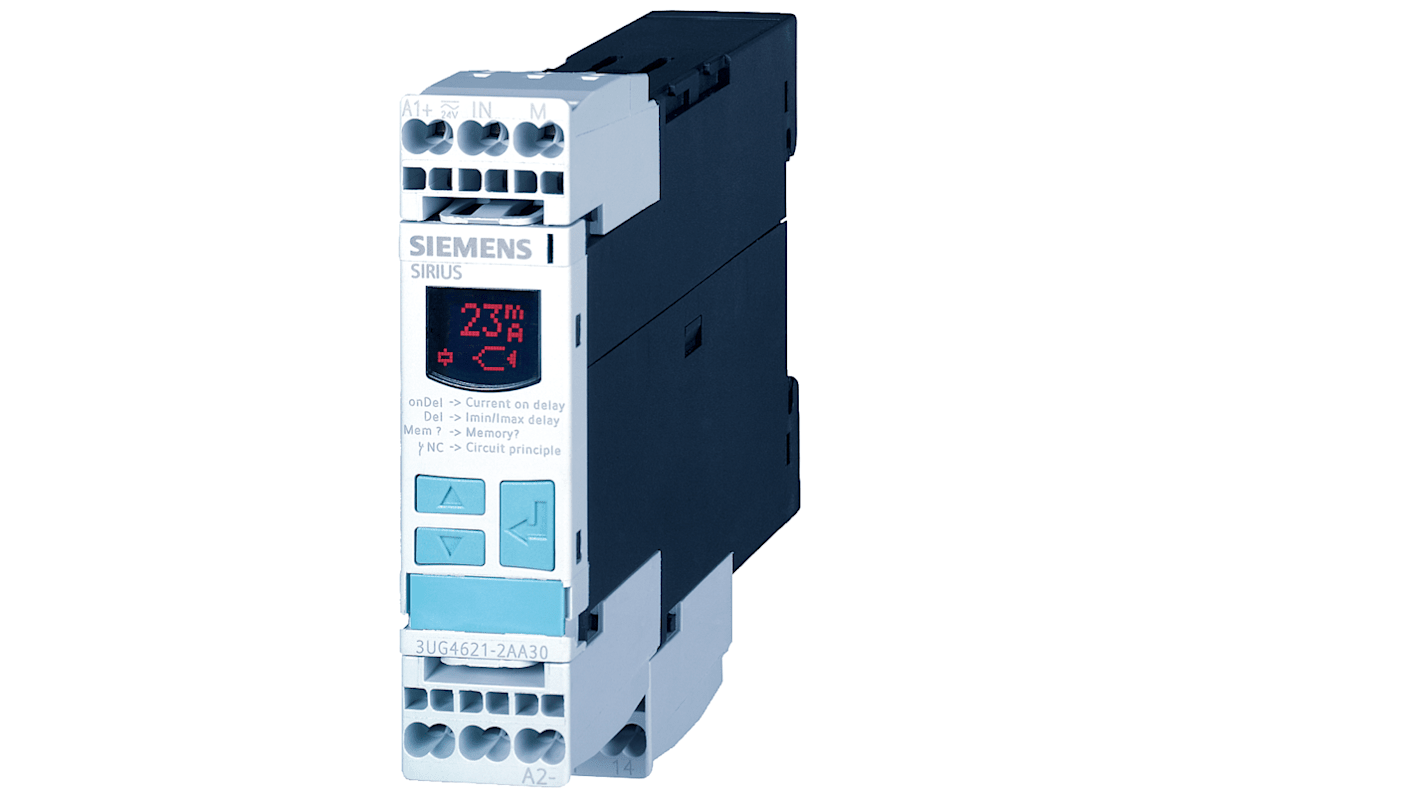

Siemens Monitoring Relay, 1 Phase, SPDT, Snap-On, 0.05A to 10A, 24V ac
- N° de stock RS:
- 213-1312
- Référence fabricant:
- 3UG4622-2AA30
- Fabricant:
- Siemens
Sous-total (1 unité)*
205,03 €
(TVA exclue)
248,09 €
(TVA incluse)
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Unité | Prix par unité |
|---|---|
| 1 + | 205,03 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 213-1312
- Référence fabricant:
- 3UG4622-2AA30
- Fabricant:
- Siemens
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Siemens | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 1 | |
| Contact Configuration | SPDT | |
| Mount Type | Snap-On | |
| Minimum Current Sensed | 0.05A | |
| Maximum Current Sensed | 10A | |
| Current Sensitivity | Overvoltage | |
| Terminal Type | Spring Loaded | |
| Time Delay | 0.1 to 20 s | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -25°C | |
| Relay Contact Current | 5A | |
| Supply AC Voltage | 24V ac | |
| Maximum Operating Temperature | 60°C | |
| Height | 94mm | |
| Length | 91mm | |
| Series | 3GU | |
| Width | 22.5mm | |
| Standards/Approvals | RCM, EAC, UL, RoHS, CE, CCC | |
| Sélectionner tout | ||
|---|---|---|
Marque Siemens | ||
Product Type Monitoring Relay | ||
Electrical Phase 1 | ||
Contact Configuration SPDT | ||
Mount Type Snap-On | ||
Minimum Current Sensed 0.05A | ||
Maximum Current Sensed 10A | ||
Current Sensitivity Overvoltage | ||
Terminal Type Spring Loaded | ||
Time Delay 0.1 to 20 s | ||
IP Rating IP20 | ||
Minimum Operating Temperature -25°C | ||
Relay Contact Current 5A | ||
Supply AC Voltage 24V ac | ||
Maximum Operating Temperature 60°C | ||
Height 94mm | ||
Length 91mm | ||
Series 3GU | ||
Width 22.5mm | ||
Standards/Approvals RCM, EAC, UL, RoHS, CE, CCC | ||
The Siemens 3UG series is a digital monitoring relay. The monitoring function is of phase monitoring. Withh 1 change-over contacts screw terminal connection system.
It has a protection class rating of IP20.
Product function Auto-reset is possible
galvanic isolation between entrance and outlet
