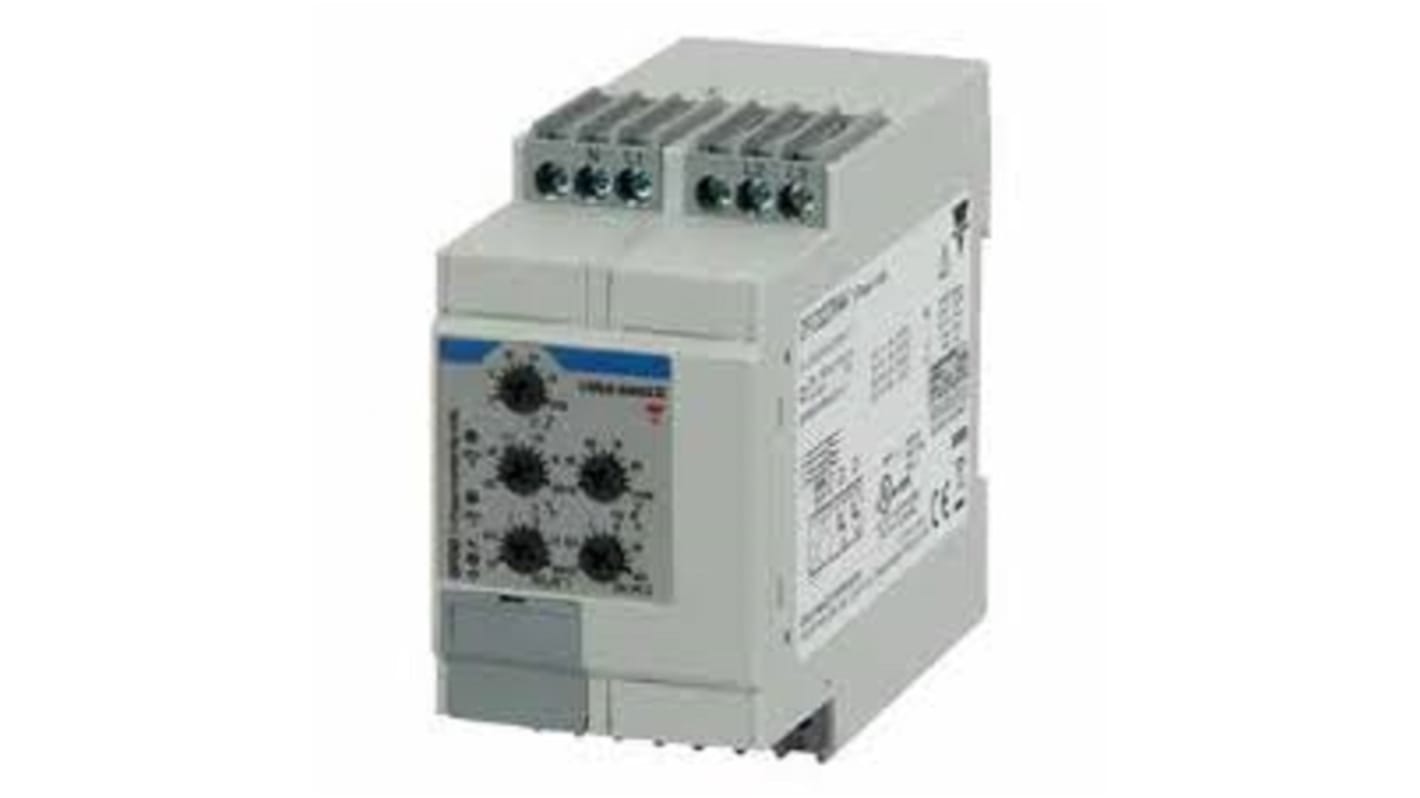

Carlo Gavazzi Monitoring Relay, 3 Phase, 208/690 V ac Monitor Range, SPDT, DIN Rail, 208V ac, 690 V ac
- N° de stock RS:
- 209-8593
- Référence fabricant:
- DPC02DM44
- Fabricant:
- Carlo Gavazzi
Sous-total (1 unité)*
294,46 €
(TVA exclue)
356,30 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 2 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 294,46 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 209-8593
- Référence fabricant:
- DPC02DM44
- Fabricant:
- Carlo Gavazzi
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Carlo Gavazzi | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 3 | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Power Consumption | 4.5VA | |
| Terminal Type | Double Cage Screw | |
| IP Rating | IP20 | |
| Supply AC Voltage | 208, 690V ac | |
| Monitoring Voltage Range | 208/690 V ac | |
| Contact Current | 8A | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CSA, UL, RoHS, CCC, CE | |
| Height | 80mm | |
| Length | 99.5mm | |
| Series | DPC02 | |
| Width | 45mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Carlo Gavazzi | ||
Product Type Monitoring Relay | ||
Electrical Phase 3 | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Power Consumption 4.5VA | ||
Terminal Type Double Cage Screw | ||
IP Rating IP20 | ||
Supply AC Voltage 208, 690V ac | ||
Monitoring Voltage Range 208/690 V ac | ||
Contact Current 8A | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CSA, UL, RoHS, CCC, CE | ||
Height 80mm | ||
Length 99.5mm | ||
Series DPC02 | ||
Width 45mm | ||
- Pays d'origine :
- IT
The Carlo Gavazzi voltage and frequency monitoring relay can operate on both 3P and 3P+N systems, monitoring phase loss and phase sequence, overvoltage and undervoltage, voltage asymmetry and tolerance. The power supply is provided by the monitored mains. It has two independent delay functions, up to 30s, for over/under voltage and asymmetry/tolerance alarms.
Wide input voltage range and frequency
Adjustable voltage levels, asymmetry, tolerance and time delay
Adjustable power ON delay
Output and status LED indication
Ultra-high harmonic immunity
