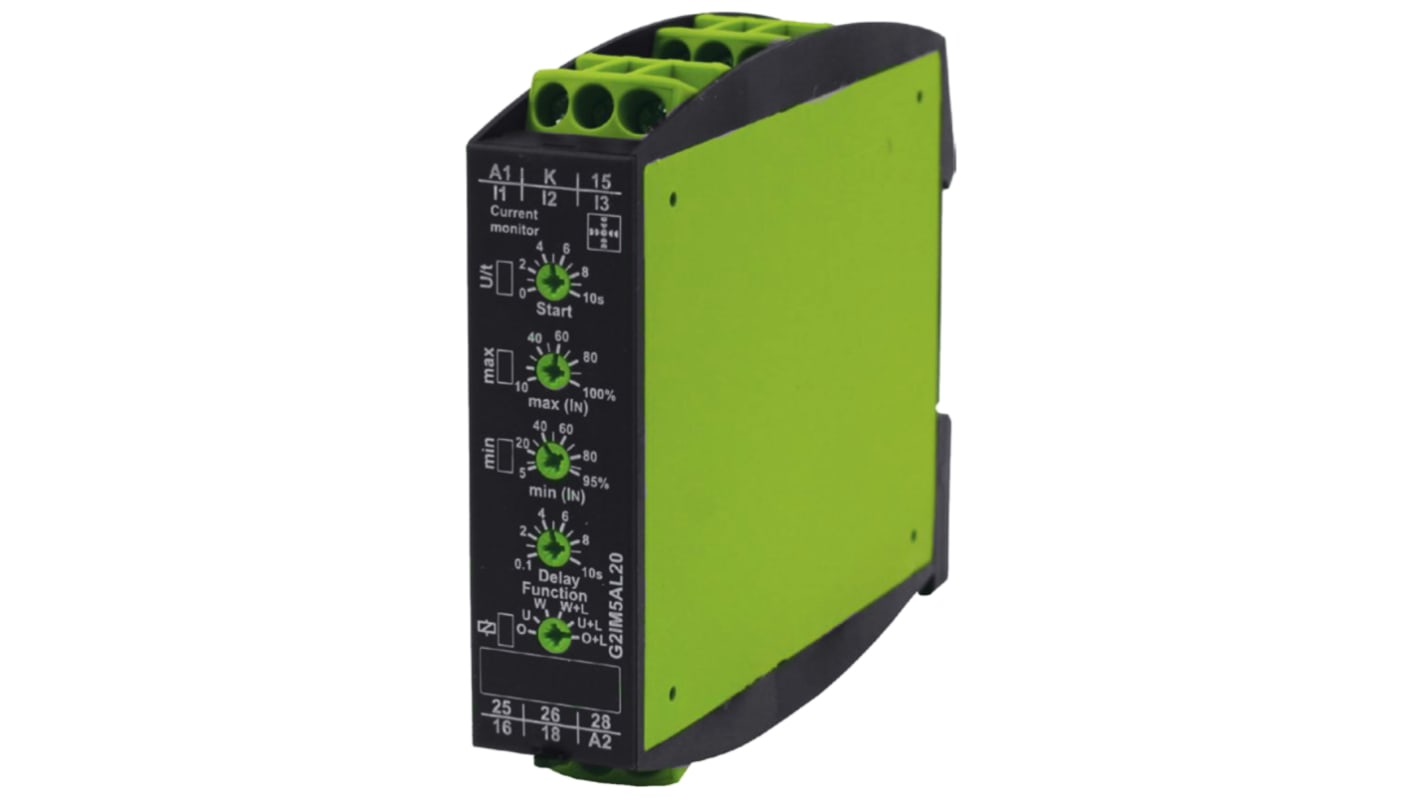

Tele Monitoring Relay, 1 Phase, DPDT, DIN Rail, 20mA to 5A, 24V ac, 240 V ac
- N° de stock RS:
- 123-9749
- Référence fabricant:
- G2IM5AL20 24-240VAC/DC
- Fabricant:
- Tele
Offre groupée disponible
Sous-total (1 unité)*
229,28 €
(TVA exclue)
277,43 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 8 unité(s) expédiée(s) à partir du 27 avril 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 229,28 € |
| 5 - 9 | 222,40 € |
| 10 + | 215,52 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 123-9749
- Référence fabricant:
- G2IM5AL20 24-240VAC/DC
- Fabricant:
- Tele
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Tele | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 1 | |
| Contact Configuration | DPDT | |
| Mount Type | DIN Rail | |
| Minimum Current Sensed | 20mA | |
| Maximum Current Sensed | 5A | |
| Power Consumption | 4.5VA | |
| Switching Voltage | 250V ac | |
| Current Sensitivity | Undercurrent, Overcurrent | |
| Terminal Type | Screw | |
| Time Delay | 0.1 to 10 s | |
| IP Rating | IP20, IP40 | |
| Relay Contact Current | 5A | |
| Minimum Operating Temperature | -25°C | |
| Supply AC Voltage | 24, 240V ac | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | IEC 60068-2-6, IEC 60664-1, RoHS, IEC 60721-3-3, IEC 60068-2-27 | |
| Width | 22.5mm | |
| Height | 90mm | |
| Length | 108mm | |
| Series | GAMMA | |
| Sélectionner tout | ||
|---|---|---|
Marque Tele | ||
Product Type Monitoring Relay | ||
Electrical Phase 1 | ||
Contact Configuration DPDT | ||
Mount Type DIN Rail | ||
Minimum Current Sensed 20mA | ||
Maximum Current Sensed 5A | ||
Power Consumption 4.5VA | ||
Switching Voltage 250V ac | ||
Current Sensitivity Undercurrent, Overcurrent | ||
Terminal Type Screw | ||
Time Delay 0.1 to 10 s | ||
IP Rating IP20, IP40 | ||
Relay Contact Current 5A | ||
Minimum Operating Temperature -25°C | ||
Supply AC Voltage 24, 240V ac | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals IEC 60068-2-6, IEC 60664-1, RoHS, IEC 60721-3-3, IEC 60068-2-27 | ||
Width 22.5mm | ||
Height 90mm | ||
Length 108mm | ||
Series GAMMA | ||
- Pays d'origine :
- AT
GAMMA Series Current Monitoring Relay
TELE GAMMA series AC/DC current monitoring for single phase. Featuring overcurrent and undercurrent monitoring and two change over contacts. The GAMMA series have a self-extinguishing plastic body with an IP rating of IP40.
DIN Rail mount
LED indicator
Screw terminals
Multifunction
16.6 to 400Hz
Fault latch
2 change over contacts
Telecontrol GAMMA Monitoring Relays
