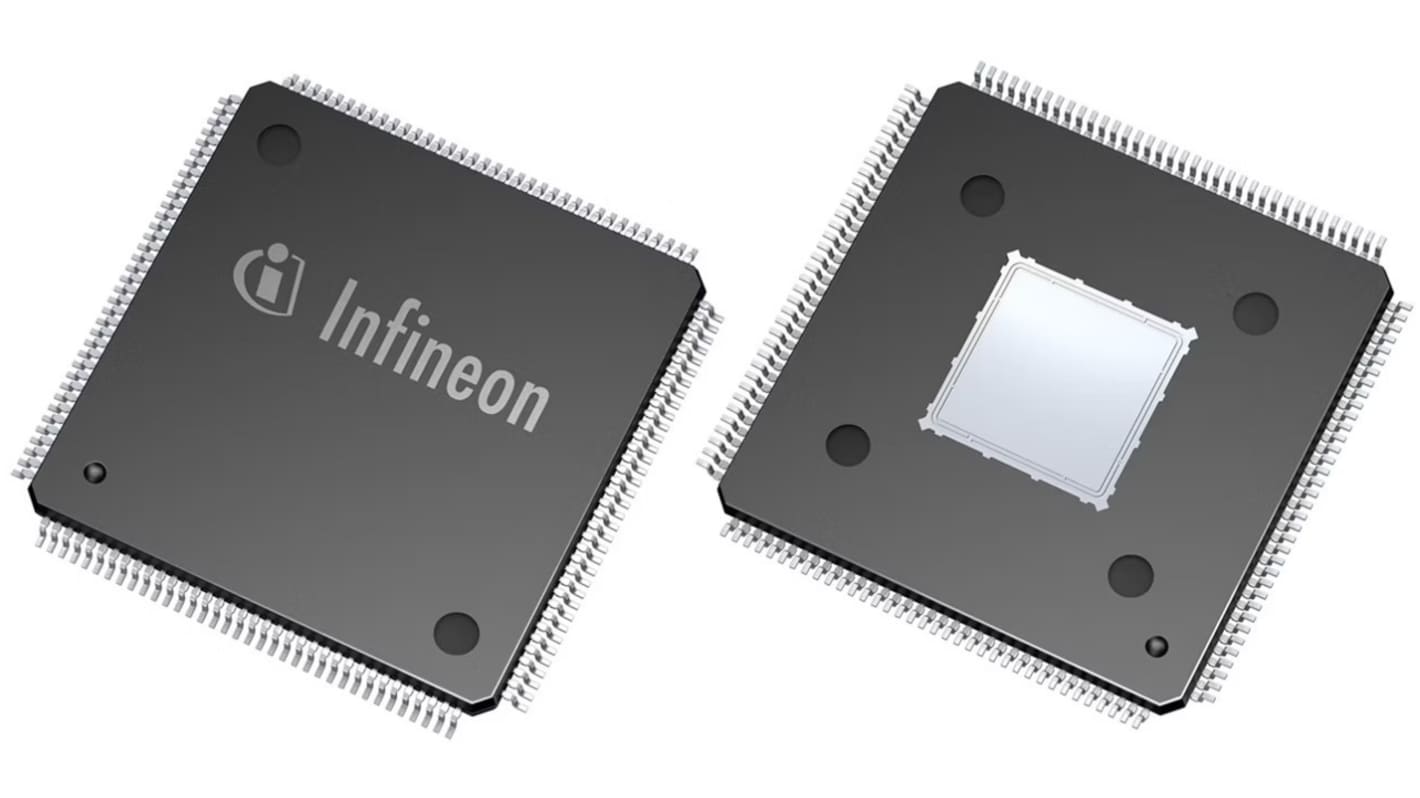

Infineon, 32bit ARM Cortex M4, XMC4000 Microcontroller, 120MHz, 1.024 MB Flash, 144-Pin LQFP

N° de stock RS:: 110-7450
Référence fabricant:: XMC4500F144F1024ACXQMA1
Fabricant:: Infineon

Infineon, 32bit ARM Cortex M4, XMC4000 Microcontroller, 120MHz, 1.024 MB Flash, 144-Pin LQFP

Sous-total (1 unité)*

12,71 €

(TVA exclue)

15,38 €

(TVA incluse)

Informations sur le stock actuellement non accessibles

Unité	Prix par unité
1 +	12,71 €

*Prix donné à titre indicatif

N° de stock RS:: 110-7450
Référence fabricant:: XMC4500F144F1024ACXQMA1
Fabricant:: Infineon

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Infineon
	Family Name	XMC4000
	Package Type	LQFP
	Mounting Type	Surface Mount
	Pin Count	144
	Device Core	ARM Cortex M4
	Data Bus Width	32bit
	Program Memory Size	1.024 MB
	Maximum Frequency	120MHz
	RAM Size	160 kB
	USB Channels	1
	Typical Operating Supply Voltage	1.3 (Core) V, 3.3 (Digital) V
	Minimum Operating Temperature	-40 °C
	Instruction Set Architecture	DSP, MAC
	Height	1.4mm
	Program Memory Type	Flash
	Data Rate	100Mbps
	Width	20mm
	Dimensions	20 x 20 x 1.4mm
	Maximum Number of Ethernet Channels	1
	ADCs	8 x 12 bit
	Length	20mm
	Number of ADC Units	4
	Maximum Operating Temperature	+85 °C

	Sélectionner tout
	Marque Infineon
	Family Name XMC4000
	Package Type LQFP
	Mounting Type Surface Mount
	Pin Count 144
	Device Core ARM Cortex M4
	Data Bus Width 32bit
	Program Memory Size 1.024 MB
	Maximum Frequency 120MHz
	RAM Size 160 kB
	USB Channels 1
	Typical Operating Supply Voltage 1.3 (Core) V, 3.3 (Digital) V
	Minimum Operating Temperature -40 °C
	Instruction Set Architecture DSP, MAC
	Height 1.4mm
	Program Memory Type Flash
	Data Rate 100Mbps
	Width 20mm
	Dimensions 20 x 20 x 1.4mm
	Maximum Number of Ethernet Channels 1
	ADCs 8 x 12 bit
	Length 20mm
	Number of ADC Units 4
	Maximum Operating Temperature +85 °C

Infineon Microcontroller, 120MHz Maximum Frequency, 1.024MB Program Memory size - XMC4500F144F1024ACXQMA1

This microcontroller offers a robust 32-bit ARM Cortex M4 core ideal for advanced applications. With a compact LQFP package measuring 20 x 20 x 1.4mm, it provides an efficient solution for surface mount requirements. This device balances performance and versatility, making it suitable for diverse electronic projects.

Features & Benefits

• Equipped with 1.024 MB of Flash memory for extensive data storage
• Operates at a maximum frequency of 120 MHz for swift processing
• Includes 160 kB RAM, enhancing data handling capabilities
• Features 1 USB and 3 CAN channels, ensuring versatile connectivity
• Supports high temperatures up to +85 °C and lows of -40 °C
• Incorporates 4 ADCs, allowing precise analogue signal conversion

Applications

• Used in industrial automation systems for efficient data processing
• Ideal for automotive control systems requiring robust communication
• Utilised in smart metering for precise measurements
• Applied in IoT devices needing reliable and fast data transmission
• Employed in consumer electronics for enhanced user interfaces

What kind of power supply is required for optimal operation?

The typical operating supply required includes a core voltage of 1.3V and a digital voltage of 3.3V, making it versatile for various setups.

How does the microcontroller manage temperature variations?

Designed to function within a wide temperature range, it operates effectively from -40 °C to +85 °C, making it suitable for challenging environments such as automotive and industrial applications.

What is the significance of the 4 ADCs integrated into this microcontroller?

The inclusion of 4 ADCs enables simultaneous sampling of multiple analogue signals, enhancing performance in applications requiring detailed data analysis, such as in sensor fusion technologies.
