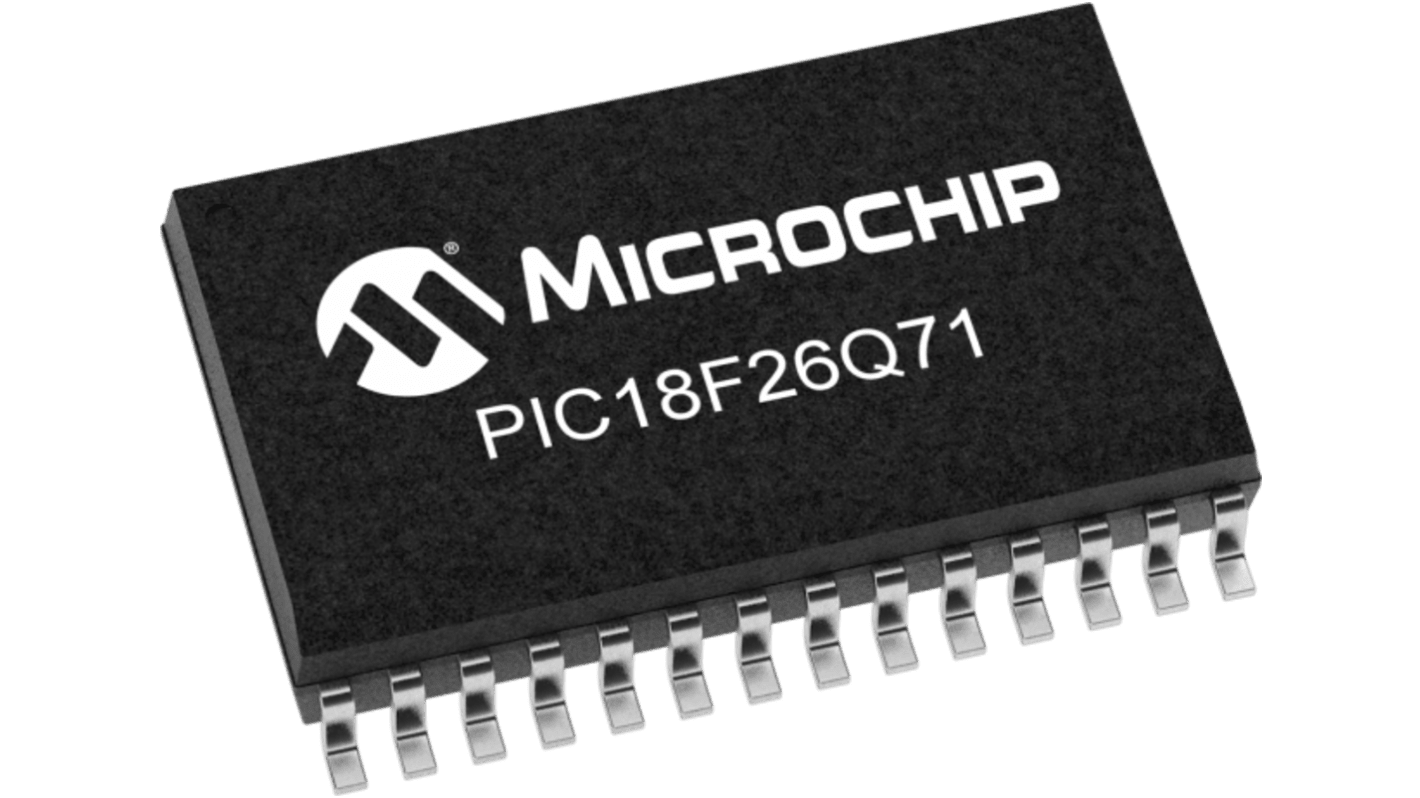

Microchip PIC18F26Q71-E/SO, 8 bit PIC18F, PIC18-Q71 8 Bit Microcontroller, 64 MHz, 64kB FLASH, 28-Pin SOIC
- N° de stock RS:
- 585-222
- Référence fabricant:
- PIC18F26Q71-E/SO
- Fabricant:
- Microchip
Sous-total (1 boîte de 459 unités)*
681,156 €
(TVA exclue)
824,364 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 18 mars 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | La Boite* |
|---|---|---|
| 459 + | 1,484 € | 681,16 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 585-222
- Référence fabricant:
- PIC18F26Q71-E/SO
- Fabricant:
- Microchip
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Microchip | |
| Series | PIC18-Q71 | |
| Product Type | 8 Bit Microcontroller | |
| Package Type | SOIC | |
| Mount Type | Surface | |
| Pin Count | 28 | |
| Device Core | PIC18F | |
| Data Bus Width | 8bit | |
| Program Memory Size | 64kB | |
| Maximum Clock Frequency | 64MHz | |
| RAM Size | 4kB | |
| Maximum Supply Voltage | 5.5V | |
| Maximum Power Dissipation Pd | 800mW | |
| Maximum Expanded Memory Size | 64kB | |
| Number of Programmable I/Os | 44 | |
| DACs | 10 bit | |
| Minimum Operating Temperature | -40°C | |
| Analogue Comparators | 2 | |
| Maximum Operating Temperature | 125°C | |
| Height | 2.65mm | |
| Width | 10.3 mm | |
| Standards/Approvals | RoHS | |
| Length | 17.9mm | |
| Minimum Supply Voltage | 1.8V | |
| Program Memory Type | FLASH | |
| Automotive Standard | No | |
| Instruction Set Architecture | RISC | |
| Number of Timers | 7 | |
| ADCs | 12 bit | |
| Sélectionner tout | ||
|---|---|---|
Marque Microchip | ||
Series PIC18-Q71 | ||
Product Type 8 Bit Microcontroller | ||
Package Type SOIC | ||
Mount Type Surface | ||
Pin Count 28 | ||
Device Core PIC18F | ||
Data Bus Width 8bit | ||
Program Memory Size 64kB | ||
Maximum Clock Frequency 64MHz | ||
RAM Size 4kB | ||
Maximum Supply Voltage 5.5V | ||
Maximum Power Dissipation Pd 800mW | ||
Maximum Expanded Memory Size 64kB | ||
Number of Programmable I/Os 44 | ||
DACs 10 bit | ||
Minimum Operating Temperature -40°C | ||
Analogue Comparators 2 | ||
Maximum Operating Temperature 125°C | ||
Height 2.65mm | ||
Width 10.3 mm | ||
Standards/Approvals RoHS | ||
Length 17.9mm | ||
Minimum Supply Voltage 1.8V | ||
Program Memory Type FLASH | ||
Automotive Standard No | ||
Instruction Set Architecture RISC | ||
Number of Timers 7 | ||
ADCs 12 bit | ||
- Pays d'origine :
- TH
The Microchip Microcontroller is a device for high bandwidth mixed signal and sensor applications. It is an ideal solution for lighting, motor control and medical market segments. This analog-focused family features a 12-bit Differential ADC with Computation and Context Switching, two Operational Amplifiers, a 10-bit Digital-to-Analog Converter (DAC) and two 8-bit DAC modules with buffered outputs and internal connections to other peripherals, and two advanced high-speed Analog Comparators. It also features the Analog Peripheral Manager to manage analog peripherals for optimizing power consumption.
Debug Integrated On Chip
DMA compatible
Hardware Capacitive Voltage Divider Support
Backwards compatible with previous interrupt capabilities
