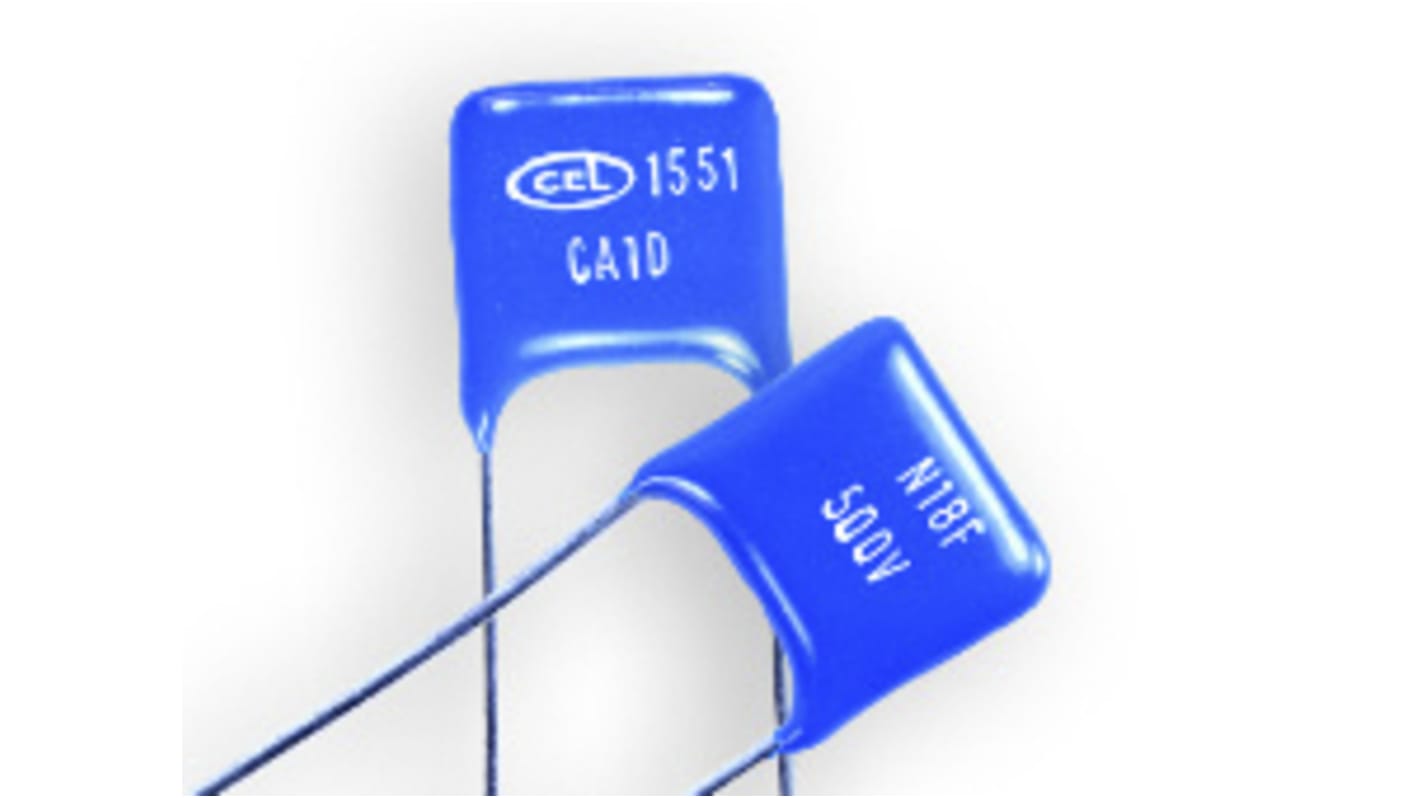

RS PRO 330pF Mica Capacitor 500V dc ±1% Tolerance Flat
- N° de stock RS:
- 168-3344
- Fabricant:
- RS PRO
9 En stock pour livraison sous 1 jour(s)
Ajouté
Prix la pièce
7,58 €
(TVA exclue)
9,17 €
(TVA incluse)
| Unité | Prix par unité |
| 1 - 4 | 7,58 € |
| 5 - 9 | 6,06 € |
| 10 - 19 | 5,50 € |
| 20 - 24 | 4,56 € |
| 25 + | 3,99 € |
- N° de stock RS:
- 168-3344
- Fabricant:
- RS PRO
Législations et de normes
- Pays d'origine :
- GB
Détails du produit
These capacitors are specially designed for audio applications. Constructed from the finest Indian Ruby Mica plates which are cut by hand and then have silver electrodes printed on. The plates are stacked by hand to the required value, have their edges reinforced with silver paste and then sintered at 560°C. After firing they are cut into individual chips ready for lead attachment again by hand. To enhance their audio properties, solid silver lead wires are attached before final trimming and dipping in epoxy resin.
Spécifications
Attribut | Valeur |
|---|---|
| Series | CA1D |
| Capacitance | 330pF |
| Voltage | 500V dc |
| Dimensions | 15 x 6.5 x 13mm |
| Lead Pitch | 10.2mm |
| Construction | Flat |
| Tolerance | ±1% |
| Depth | 6.5mm |
| Height | 13mm |
| Length | 15mm |
| Maximum Operating Temperature | +100°C |
| Minimum Operating Temperature | -55°C |
| Dielectric Material Family | Mica |
| Terminal Type | Radial |
| Capacitor Family | Multilayer |
