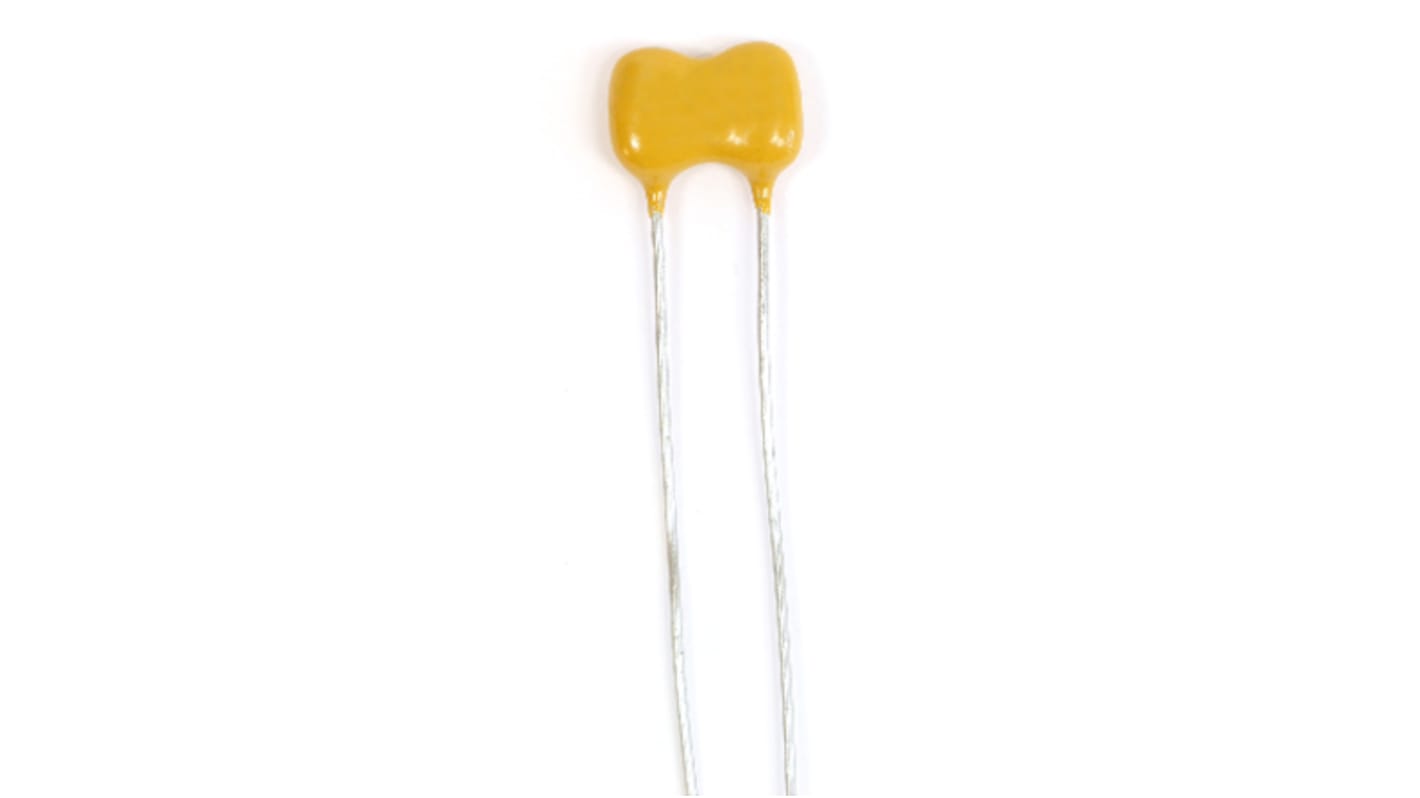

RS PRO 4.7pF Mica Capacitor 500V dc ±0.5pF Tolerance Radial
- N° de stock RS:
- 495-616
- Fabricant:
- RS PRO
15 En stock, livraison sous 1 jour(s) (stock Europe)
1105 En stock, livraison sous 3 à 5 jours (stock Europe)
Ajouté
Prix L'unité (en paquet de 5)
4,038 €
(TVA exclue)
4,886 €
(TVA incluse)
| Unité | Prix par unité | le paquet* |
| 5 - 20 | 4,038 € | 20,19 € |
| 25 - 120 | 3,23 € | 16,15 € |
| 125 - 245 | 2,624 € | 13,12 € |
| 250 - 495 | 2,018 € | 10,09 € |
| 500 + | 1,816 € | 9,08 € |
| *prix conseillé | ||
- N° de stock RS:
- 495-616
- Fabricant:
- RS PRO
Documentation technique
Législations et de normes
- Pays d'origine :
- GB
Détails du produit
RS Pro Silvered Mica Capacitors
RS Pro high quality silvered mica capacitors are small and offer high insulation resistance. Ideal for applications that require high stability. The Mica capacittors feature a Flame retardant epoxy coating These capacitors are suitable for professional and military equipment.
Applications
Logic and transmission circuits
Pulse forming networks
Delay lines,
DC Voltage blocking
Timing circuits
Pulse forming networks
Delay lines,
DC Voltage blocking
Timing circuits
Radial Dipped
Professional radial wire ended dipped silver mica capacitors designed for applications which demand high stability
Constructed using a flame retardant epoxy coating which makes them suitable for RF tuned circuits and pulse operation.
Constructed using a flame retardant epoxy coating which makes them suitable for RF tuned circuits and pulse operation.
Spécifications
Attribut | Valeur |
|---|---|
| Series | D |
| Capacitance | 4.7pF |
| Voltage | 500V dc |
| Dimensions | 11.43 x 4.32 x 9.14mm |
| Lead Pitch | 5.72mm |
| Construction | Radial |
| Tolerance | ±0.5pF |
| Depth | 4.32mm |
| Height | 9.14mm |
| Length | 11.43mm |
| Maximum Operating Temperature | +150°C |
| Minimum Operating Temperature | -55°C |
| Dielectric Material Family | Mica |
| Capacitor Family | Mica |
