Druck DPI705E Gauge Manometer With 1 Pressure Port/s, Max Pressure Measurement 20 bar, UKAS

N° de stock RS:: 201-2980
Référence fabricant:: DPI705E-1-13G-P1-H0-U0-OP0
Fabricant:: Druck

Druck DPI705E Gauge Manometer With 1 Pressure Port/s, Max Pressure Measurement 20 bar, UKAS

Sous-total (1 unité)*

898,04 €

(TVA exclue)

1 086,63 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

En stock

63 unité(s) prête(s) à être expédiée(s)
Plus 15 unité(s) expédiée(s) à partir du 24 juin 2026
Plus 39 unité(s) expédiée(s) à partir du 22 juillet 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	898,04 €

*Prix donné à titre indicatif

N° de stock RS:: 201-2980
Référence fabricant:: DPI705E-1-13G-P1-H0-U0-OP0
Fabricant:: Druck

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Druck
	Product Type	Manometer
	Accuracy	±0.1 %
	Number of Pressure Ports	1
	Maximum Pressure Measurement	20bar
	Minimum Pressure Measurement	0bar
	Pressure Port Type	Gauge
	Leak Testing	Yes
	Minimum/Maximum Recordings	Yes
	Data Logging	No
	Model Number	DPI705E
	Intrinsically Safe	No
	IP Rating	IP54
	Battery Type	AA
	Minimum Operating Temperature	-10°C
	Display Type	LCD Backlight
	Maximum Operating Temperature	50°C
	Width	95mm
	Standards/Approvals	RCM, CE
	Length	200mm
	Height	43mm
	Weight	563g
	Hazardous Area Certification	IECEx, ATEX
	Calibrated	UKAS

	Sélectionner tout
	Marque Druck
	Product Type Manometer
	Accuracy ±0.1 %
	Number of Pressure Ports 1
	Maximum Pressure Measurement 20bar
	Minimum Pressure Measurement 0bar
	Pressure Port Type Gauge
	Leak Testing Yes
	Minimum/Maximum Recordings Yes
	Data Logging No
	Model Number DPI705E
	Intrinsically Safe No
	IP Rating IP54
	Battery Type AA
	Minimum Operating Temperature -10°C
	Display Type LCD Backlight
	Maximum Operating Temperature 50°C
	Width 95mm
	Standards/Approvals RCM, CE
	Length 200mm
	Height 43mm
	Weight 563g
	Hazardous Area Certification IECEx, ATEX
	Calibrated UKAS

Datasheet DPI-705E Series

Pays d'origine :: GB

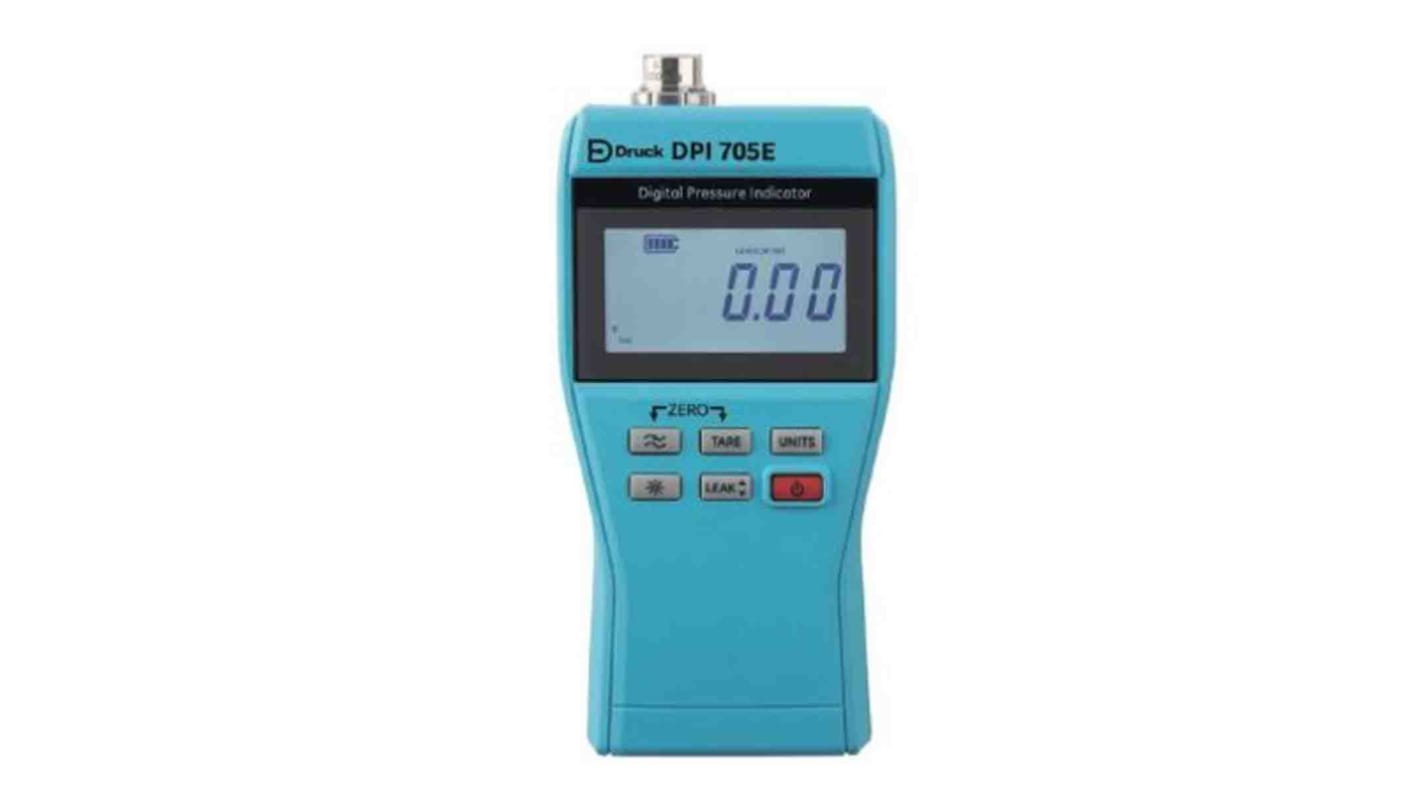

Druck Manometer, 20 Bar Maximum Pressure Measurement, IP54 - DPI705E-1-13G-P1-H0-U0-OP0

This handheld pressure indicator known as the Druck Manometer is a versatile device that combines rugged design with accurate measurements for routine maintenance and system troubleshooting. With features like a backlit high-contrast display and leak testing capabilities, this manometer is designed for single-handed operation and offers essential features needed in various industries.

Features & Benefits

• Offers 41 pressure ranges from ±25 mBar to 1,400 Bar, ensuring precise measurements for versatility

• Provides total 1 year uncertainty down to 0.05% full scale (FS) over a temperature range of -10°C to +50°C, ensuring reliable performance

• Comes with leak testing, tare, maximum/minimum, and filter functions for added convenience during use

• Optional remote plug and play pressure and resistance temperature detector (RTD-PROBE) sensors, allowing for additional customisation and compatibility

• Long battery life and backlit LCD display make it a reliable and user-friendly device for extended use

Applications

• Ideal for pressure measurements in industrial automation, electrical maintenance, and mechanical systems troubleshooting

Can it be used in hazardous areas?

Yes, there is a Hazardous Area version available for such environments.

What kind of pressure ranges does it offer?

The manometer offers a wide range of pressure options from ±25 mBar to 1,400 Bar for diverse applications.

Is the backlit LCD display easy to read in different lighting conditions?

Yes, the backlit display ensures visibility in various environments.

How long does the battery last?

The device boasts a long battery life, allowing for continuous use without frequent replacements.

Is the manometer suitable for single-handed operation?

Yes, the design of the manometer allows for easy single-handed operation.

Note

Why choose Druck?
What began in 1972 as a small business in Leicester, UK, Druck has grown into a global pressure-measurement business recognised as a world leader, delivering high quality piezo-resistive pressure sensors and test and calibration instruments to a wide range of applications for customers across the globe.
Druck is one of the only organisations to control the whole manufacturing process from silicon to final product. All products are high-quality, developed from the in-house (UK), raw processing of silicon to delivering the final product.
With Druck, you can be sure of quality, accuracy and reliability. We are Druck. We deliver peace of mind.
