RS PRO Reed Switch 400V ac, 0.5A
- N° de stock RS:
- 530-8927
- Numéro d'article Distrelec:
- 304-14-458
- Fabricant:
- RS PRO
Sous-total (1 unité)*
14,63 €
(TVA exclue)
17,70 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 68 unité(s) prête(s) à être expédiée(s)
- Plus 635 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 14,63 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 530-8927
- Numéro d'article Distrelec:
- 304-14-458
- Fabricant:
- RS PRO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | RS PRO | |
| Product Type | Reed Switch | |
| Body Style | Cylindrical | |
| Output Function | NO | |
| Housing Material | Polybutylene Terephthalate, Polyvinyl Chloride | |
| Terminal Type | Wire | |
| Mount Type | Surface | |
| Switching Current | 0.5A | |
| Minimum Operating Temperature | -20°C | |
| Switching AC Voltage | 400V ac | |
| Switching DC Voltage | 400V dc | |
| Maximum Operating Temperature | 70°C | |
| Length | 25.5mm | |
| Depth | 4mm | |
| Standards/Approvals | RoHS | |
| Series | RS PRO | |
| Sélectionner tout | ||
|---|---|---|
Marque RS PRO | ||
Product Type Reed Switch | ||
Body Style Cylindrical | ||
Output Function NO | ||
Housing Material Polybutylene Terephthalate, Polyvinyl Chloride | ||
Terminal Type Wire | ||
Mount Type Surface | ||
Switching Current 0.5A | ||
Minimum Operating Temperature -20°C | ||
Switching AC Voltage 400V ac | ||
Switching DC Voltage 400V dc | ||
Maximum Operating Temperature 70°C | ||
Length 25.5mm | ||
Depth 4mm | ||
Standards/Approvals RoHS | ||
Series RS PRO | ||
- Pays d'origine :
- DE

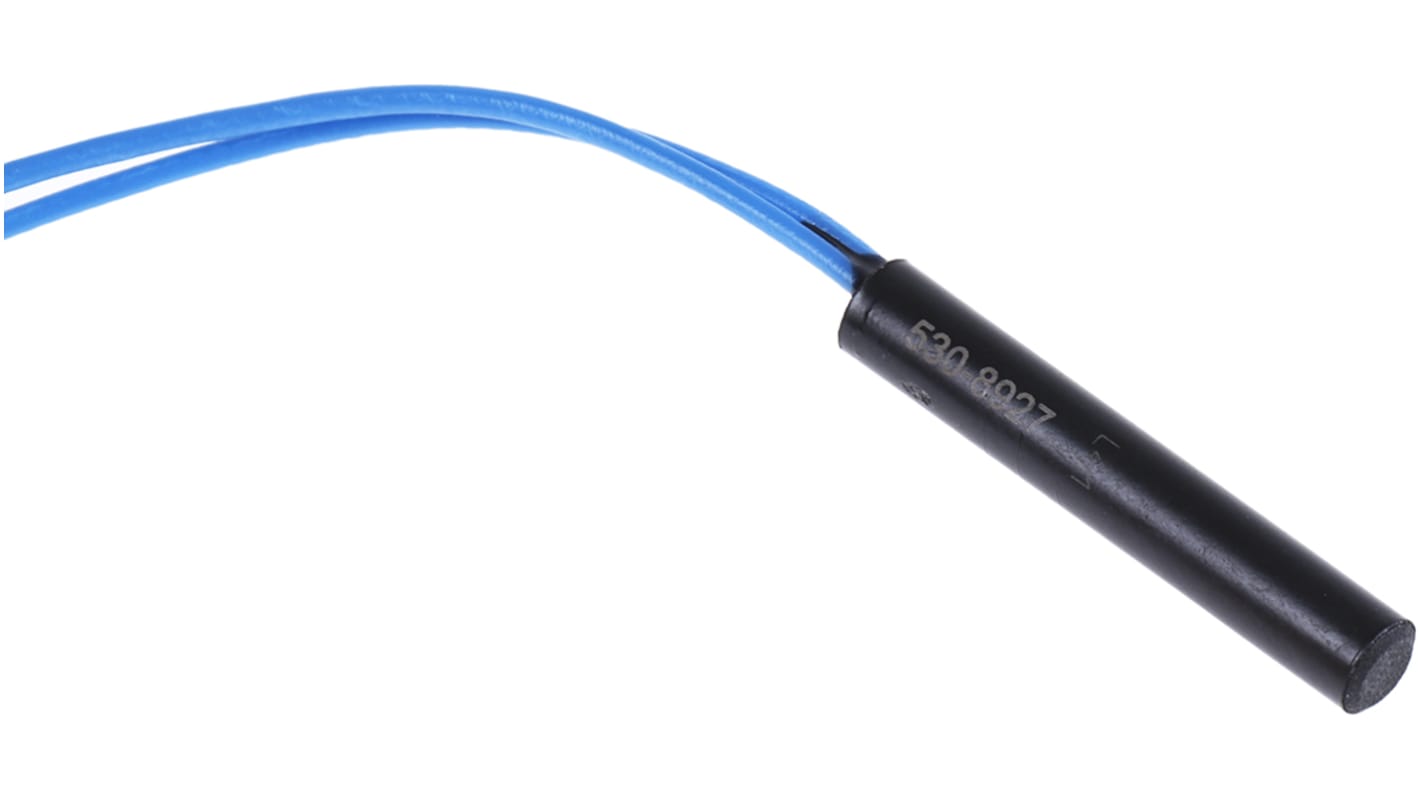

RS PRO Cylindrical Reed Sensor, 4 mm Diameter, 400 V
RS PRO cylindrical sensors are magnetically operated reed proximity switches in a 4.0 mm diameter miniature module, fitted with interconnect cable. These switches are suitable for various applications including position and limit switch, end position sensing and machinery safety and control.
The sensor should be mounted on a fixed surface with the actuating magnet on the moving surface. By presenting or removing the magnetic field determines the closing and opening of the reed switch.
Reed switches are a type of industrial switch and are used to interrupt or redirect the flow of electricity within a circuit. Reed switches are composed of two ferrous reeds in a small glass casing. The switches are magnetised and move when the magnetic field is moved towards the switch. A reed switch can turn on or off when a magnetic field is nearby.
RS PRO have a great range of industrial magnetic proximity switches and magnetic proximity sensors to suit many different applications.
Features:
Miniature module fitted with interconnect cable
N/O (normally open contacts) with no magnet present
Cable material PVC
Cable length 500 mm
Typical Applications:
Reed Proximity Switches and Proximity Sensors (also known as magnetic sensors) are popular due to their reliability and simple design.
Magnetic proximity switches are a type of electromagnetic switch which controls the flow of electricity within a circuit. Magnetic proximity switches can be used in the following applications:
Position sensing
Linear actuators
Security switching
Door Switch
FAQs
What is a magnetic proximity switch?
Magnetic proximity switches are a type of electromagnetic switch which controls the flow of electricity within a circuit.
What is the difference between a proximity switch and a proximity sensor?
A proximity sensor is a sensor which is able to detect the presence of nearby objects without any physical contact. Proximity switches open or close an electrical circuit when they make contact with or come within a certain distance of an object.
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
Note
For suitable actuator magnets see stock nos. 536-1710 and 536-1726
