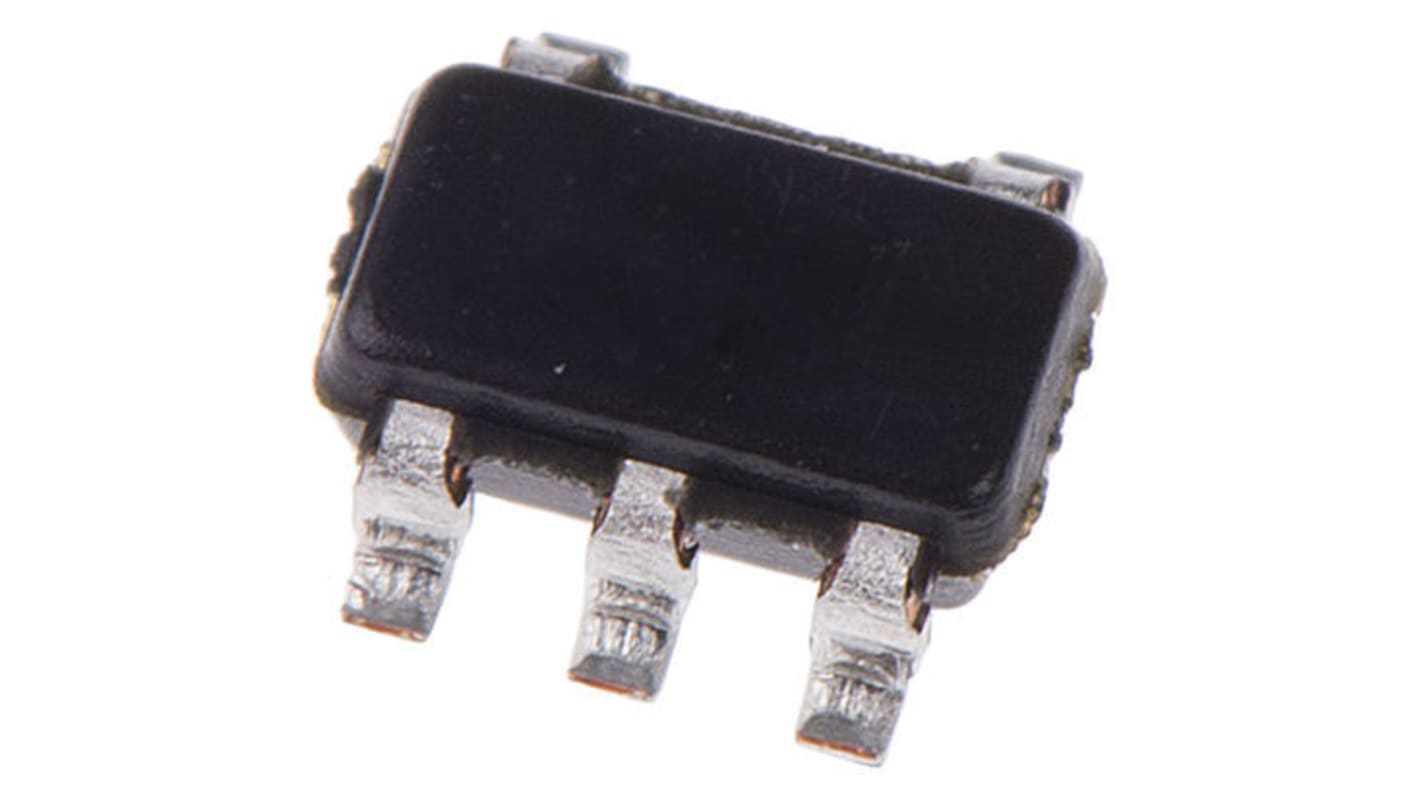

onsemi NBA3N012CSNT1G, Receiver IC 1 LVDS LVCMOS, 5-Pin SOT-23
- N° de stock RS:
- 141-3989
- Référence fabricant:
- NBA3N012CSNT1G
- Fabricant:
- onsemi
Offre groupée disponible
Sous-total (1 paquet de 5 unités)*
11,06 €
(TVA exclue)
13,385 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 60 unité(s) prête(s) à être expédiée(s)
- Plus 275 unité(s) expédiée(s) à partir du 24 mars 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 5 - 45 | 2,212 € | 11,06 € |
| 50 - 95 | 1,908 € | 9,54 € |
| 100 - 495 | 1,654 € | 8,27 € |
| 500 - 995 | 1,454 € | 7,27 € |
| 1000 + | 1,322 € | 6,61 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 141-3989
- Référence fabricant:
- NBA3N012CSNT1G
- Fabricant:
- onsemi
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | onsemi | |
| Product Type | Receiver IC | |
| Number of Drivers | 1 | |
| Input Type | LVDS | |
| Number of Receivers | 1 | |
| Output Type | LVCMOS | |
| Sub Type | Receiver | |
| Transmission Data Rate | 400Mbps | |
| Number of Elements per Chip | 1 | |
| Mount Type | Surface | |
| Package Type | SOT-23 | |
| Pin Count | 5 | |
| Differential Input High Threshold Voltage | 100mV | |
| Minimum Supply Voltage | -0.3V | |
| Maximum Supply Voltage | 4V | |
| Differential Input Low Threshold Voltage | -30mV | |
| Minimum Operating Temperature | -65°C | |
| ESD Protection | Yes | |
| Maximum Operating Temperature | 150°C | |
| Series | NBA3N012C | |
| Length | 2.9mm | |
| Height | 1.3mm | |
| Width | 1.6 mm | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q100 | |
| Sélectionner tout | ||
|---|---|---|
Marque onsemi | ||
Product Type Receiver IC | ||
Number of Drivers 1 | ||
Input Type LVDS | ||
Number of Receivers 1 | ||
Output Type LVCMOS | ||
Sub Type Receiver | ||
Transmission Data Rate 400Mbps | ||
Number of Elements per Chip 1 | ||
Mount Type Surface | ||
Package Type SOT-23 | ||
Pin Count 5 | ||
Differential Input High Threshold Voltage 100mV | ||
Minimum Supply Voltage -0.3V | ||
Maximum Supply Voltage 4V | ||
Differential Input Low Threshold Voltage -30mV | ||
Minimum Operating Temperature -65°C | ||
ESD Protection Yes | ||
Maximum Operating Temperature 150°C | ||
Series NBA3N012C | ||
Length 2.9mm | ||
Height 1.3mm | ||
Width 1.6 mm | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q100 | ||
LVDS Line Drivers and Receivers, ON Semiconductor
The NBA3N011S is a Low Voltage Differential Signaling (LVDS) driver.
The NBA3N012C is a single LVCMOS Output Differential Line Receiver.
Operating Supply Voltage 3.3 V
Automotive Grade
Applications in Low Power and High Data Rate
LVDS Communication
Low Voltage Differential Signaling, or LVDS, is an electrical signaling system that can run at very high speeds over cheap, twisted-pair copper cables.
Applications: Firewire, SATA, SCSI
